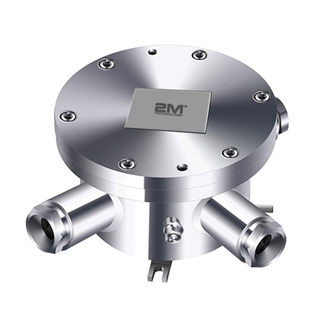

2MEJB04-8 Explosion Proof Junction Box 304 Stainless Steel
REQUEST QUOTE (for best price)
- 304 Stainless steel
- Fit for gas zone 1, zone 2
- Fit for dust zone 21, 22
- IP68
Product Documents
Downloads
Features:
- 304 Stainless steel
- Fit for gas zone 1, zone 2
- Fit for dust zone 21, 22
- IP68
| Dimensions | 55.1 × 11.8 × 39.4 in |
|---|---|
| Stainless Steel Types | |
| Ingress Protection | IP67 |
| Country of Origin | China |
| CERTIFICATE | |
| Certificate Mark | ExdII CT6 Gb/ Ex tD A21 IP68 T80°C |
| MECHANICAL | |
| Housing | Stainless Steel 304 |
| IP | IP68 |
| Couple | Male part, female part |
| Cable Thread Holes | 4pcs G3/4 or NPT3/4 |
| ELECTRICAL | |
| Voltage | AC85V~AC265V |
| Working Current | ≤3A |
| Max Connection Port | 20pcs terminal block |
| AMBIENT | |
| Ambient temperature | -25°C to 60°C [-13°F to 140°F] |
| Air pressure | 2kg [4.4 lbs] |
| Relative Humidity | 80Kpa to 106Kpa |
| Relative Humidity | ≤ 95% (no condensation) |
| GENERAL | |
| Overall Size | Ø 187 x 84 (mm) [Ø 7.4" x 3.3" (in)] |
| Inner Size | Ø 100 x 75 (mm) [Ø 3.9" x 3" (in)] |
| Weight | 3.5kg [7.7 lbs] |
