Features

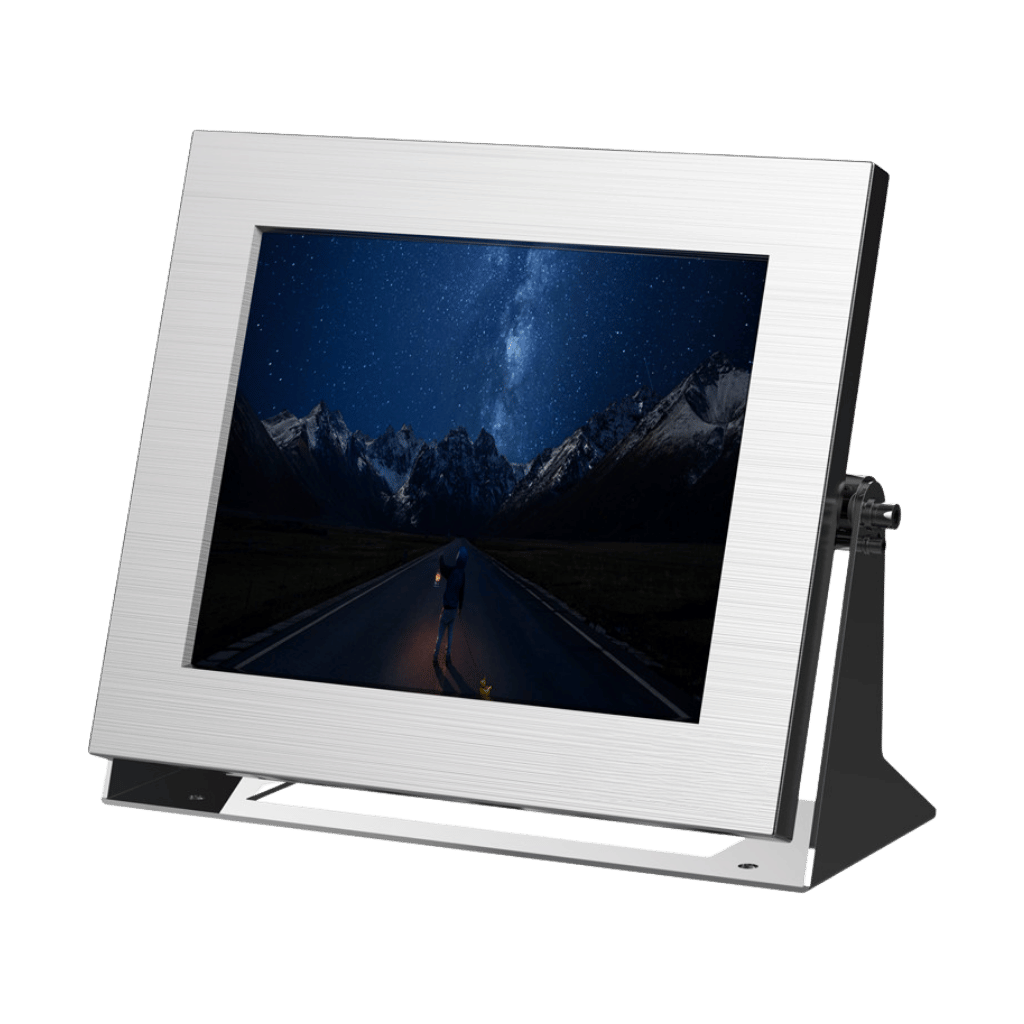

Operating a security network in volatile industrial environments requires specialized hardware that will not become a hazard itself. The 2MEM-NVR from 2M Technology is a heavy-duty explosion-proof monitor with NVR designed precisely for these critical scenarios. This robust unit combines a high-resolution 17-inch screen with built-in recording capabilities, streamlining your security setup in hazardous locations.
Certified Safety for Gas and Dust Zones
Safety and compliance are paramount in sectors like oil and gas, chemical processing, and industrial manufacturing. This explosion-proof monitor with NVR holds strict ATEX and IECEx certifications, eliminating ignition risk in environments where flammable gases, vapors, or combustible dusts are present during normal operations. It is fully certified for use in Gas Zone 1 and Zone 2, alongside Dust Zone 21 and Zone 22. The housing is constructed from rugged 304 or 316L stainless steel. Combined with an IP68 ingress protection rating, the unit can be submerged in up to 2 meters of water for 2 hours, ensuring complete protection from dust and moisture.
Unlike standard monitors retrofitted with aftermarket enclosures, the 2MEM-NVR is factory-certified as a complete unit — housing, optics, and wiring glands together. This matters for compliance: IECEx certification rules require assessment of the complete product, not components in isolation.
High-Quality Display and Integrated Recording
Beyond its protective exterior, this explosion-proof monitor with NVR delivers exceptional performance. The 17-inch screen provides a maximum resolution of 1280 x 1024, ensuring operators have a clear, flicker-free view of critical feeds. What truly sets this unit apart is the built-in 4-channel NVR. It supports a 4 TB HDD for reliable local storage, allowing you to record and review footage directly from the device. Connectivity is versatile, offering VGA, BNC, HDMI, or CAT5e ports to fit your existing infrastructure.
Where This Explosion-Proof Monitor with NVR Is Deployed
- Oil refineries and petrochemical plants — Zone 1/Zone 2 perimeter and process area monitoring where hydrocarbon vapors are present
- Offshore platforms — salt-spray resistant IP68 housing handles marine environments alongside explosive atmosphere certification
- Mining operations — methane-risk underground and surface installations requiring ExdIIB classification
- Chemical manufacturing — monitoring of storage tanks, loading bays, and process areas handling flammable solvents
- Grain and flour mills — Zone 21 dust explosion environments where standard cameras are prohibited
Key Specifications at a Glance
- Screen Size: 17-inch LED display
- Resolution: 1280 x 1024 maximum
- Certifications: ATEX and IECEx for Gas (Zone 1 and 2) and Dust (Zone 21 and 22)
- Housing Material: 304 or 316L Stainless Steel
- Ingress Protection: IP68 rated (2 meters for 2 hours)
- Built-in Storage: 4-channel NVR supporting a 4 TB HDD
- Operating Voltage: AC 100 to 240V
- Power Consumption: 50 W
- Operating Temperature: -25°C to +60°C or -45°C to +80°C
- Dimensions: 473 mm x 200 mm x 396 mm (18.6″ x 7.9″ x 15.6″)
- Weight: 48 kg (105.8 lb)
Contact 2M Technology for pricing, lead times, and site-specific mounting configurations. This explosion-proof monitor with NVR is available with optional TVS6000V surge protection and supports multiple cable entry thread sizes. For Zone 1 and Zone 21 site deployments, the 2MEM-NVR explosion-proof monitor with NVR ships with full certification documentation for compliance sign-off.
