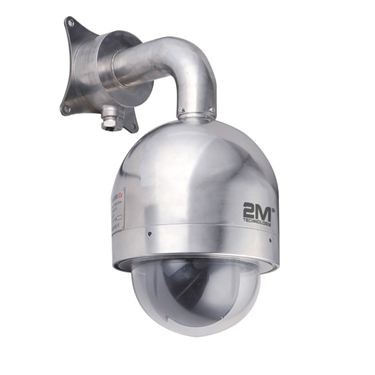

2MEP04 Stainless Steel Explosion proof Housing – 304 Stainless Steel

  • 304 Stainless steel
  • Certificate Mark: Exd II C T6 Gb/Ext DA21 IP68 T80°C
  • Protection enclosure: IP68
  • Starlight illumination

Note: This is a special order item. Please allow 4-6 weeks for delivery.

Book your free demo appointment today!
REQUEST DEMO

Product Documents

  • 304 Stainless steel (Also available in 316L SS)
  • 1pcs G3/4 or NPT3/4
  • Rated for outdoors IP68

Note: This is a special order item. Allow 4-6 weeks for delivery.

Weight33.1 lbs
Dimensions9.9 × 9.9 × 13.9 in
Stainless Steel Types

Ingress Protection

IP68

HOUSING
Certificate MarkExdIIC T6 Gb/Ext DA21 IP68 T80°C
Certificate NoCNEx15.2504X
StandardsQ/320412 ZAF026-2015
MECHANICAL
HousingStainless steel 304 or 316L
IPIP68
Cable Thread Hole1pcs G3/4 or NPT3/4
WiperNo
AMBIENT
Ambient Temperature-25°C to +60°C
Air Pressure80Kpa to 106Kpa
Relative Humidity≤95% (no condensation)
GENERAL
Dimensions (LxWxH)250 x 250 x 352 mm  /  9.8" x 9.8" x 13.9" in.
Weight15kg [33.1lbs]
MountedWall, Pole
