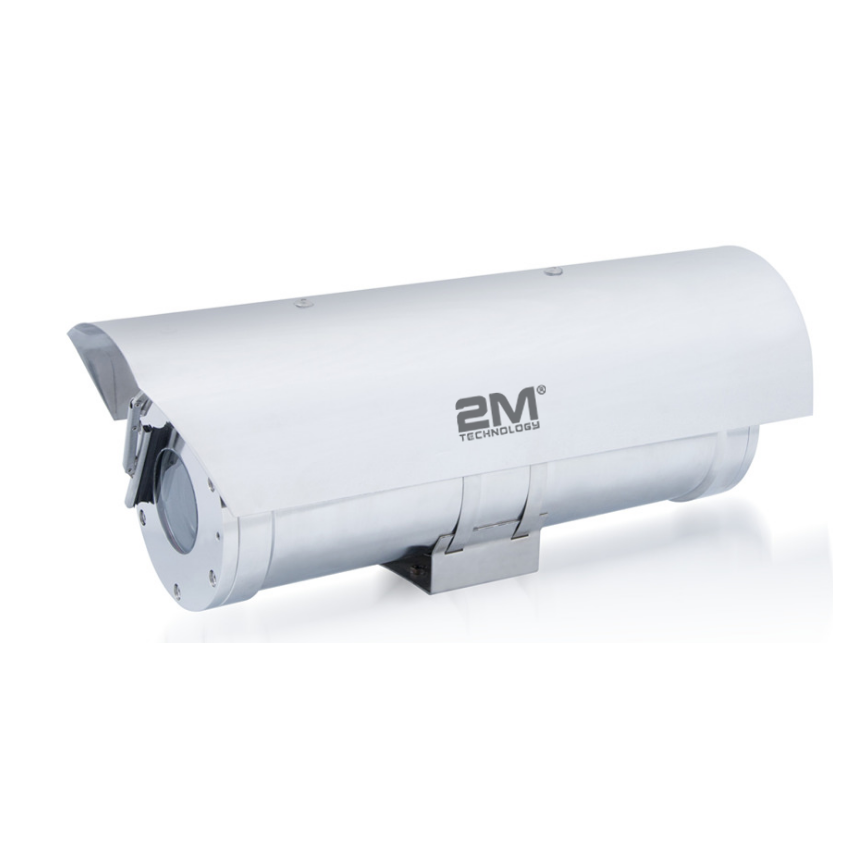

2MEW04 ATEX Explosion proof CCTV Housing with Sunshade – 304 Stainless Steel

  • Constructed of stainless steel 304 (Also available in 316L)
  • Optical glass window with higher light transmittance
  • IP68 ingress protection
  • Sunshield and wiper included

Note: This is a special order item. Please allow 4-6 weeks for delivery.

Product Documents

2MEW04 ATEX Explosion proof CCTV Housing with Sunshade – 304 Stainless Steel

Features:

  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Constructed of stainless steel 304 (Also available in 316L)
  • IP68 ingress protection
  • Cable thread M25 x 1.5, or M27 x 1.25
  • Sun shield and wiper included

Note: This is a special order item. Please allow 4-6 weeks for delivery.

Book your free demo appointment today!
REQUEST DEMO

Weight34.2 lbs
Dimensions20.6 × 7.1 × 8.5 in
Stainless Steel Types

Ingress Protection

IP68

CERTIFICATES
ATEX

Certificate Mark

ExII 2G Ex db  IIC T6 Gb,

ExII 2D Ex tb IIC T80ºC Db

MECHANICAL
HousingStainless steel 304 (also available in 316L)
SurfaceOptional electro-polish or painting
IPIP68 (1.2m/ 45min)
Cable Thread HoleM25 x 1.5, or M27 x 1.25
ELECTRICAL
VoltageAC100V~AC240V or AC24V
Power15W/25W (with thermostat)
Surge ProtectOptional, TVS6000V surge protect
Optical Fiber OutputOptional, multimode or single mode
Optical Video Signal1-way video output
Optional Network SignalRJ45
Optical Audio1-way input, 1-way output
Optical Alarm2-way alarm input, 1-way alarm output
Address Code0/1
Trail Cable2m integrated cable
AMBIENT
Ambient Temperature-25°C – 60°C / -40°C~60°C [-13°F – 140°F / -40°F – 140°F]
Air Pressure80Kpa to 110Kpa
Relative Humidity≤95% (no condensation)
COMMUNICATION
Communication TypeRS485
ProtocolPelco-D, Pelco-P
Communicate Rate2400~19200bps adjustable
485 CommunicationSupport
GENERAL
SunshieldYes
WiperYes


Overall Dimensions (LxWxD)

524 x 179 x 215 (mm)

20.6″ x 7.1″ x 8.5″ in.



Inner Dimensions (LxWxD)

250 x 80 x 80 (mm)

9.84″ x 3.15″ x 3.15″ in.

Weight34.2 lbs (15.5 kgs)
