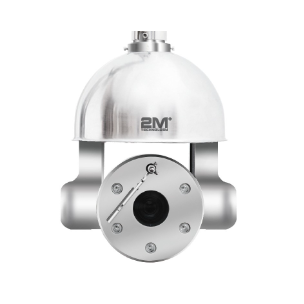

2MEPIR16 Explosion proof PTZ Housing with Wiper System 316L Stainless Steel

REQUEST QUOTE

  • 316L Stainless steel (Also available in 304)
  • Protection enclosure: IP68
  • 100m light distance
  • Wiper is included

Note: This is a special order item. Please allow 4-6 weeks for delivery.

Product Documents

2MEPIR16 Explosion proof PTZ Housing with Wiper System – 316L Stainless Steel

Features:

  • 316L Stainless steel
  • Certificate Mark: ExdII C T6 GB/DIP A20 TA, T6
  • Protection enclosure: IP68
  • 100m light distance
  • Integrated cable

Note: This is a special order item. Please allow 4-6 weeks for delivery.

Weight35.3 lbs
Dimensions12.6 × 9.4 × 16.5 in
Stainless Steel Types

Ingress Protection

IP68

CERTIFICATES

Certification                     ExdII C T6 GB/DIP A20 TA, T6

MECHANICAL

Housing                            Stainless Steel 316L (also available in 304)

Wiper                                Yes

IP                                     IP68

Cable Thread Hole           1pcs G3/4 or NPT3/4

ELECTRICAL

Voltage                            AC85V~AC265V or DC24Vor AC24V

Power                               50W/70W (with thermostat)

AMBIENT

Ambient Temperature      -25°C to 60°C [-13°F to 140°F]

Air Pressure                     80Kpa to 106Kpa

Relative Humidity             <95% (no condensation)

LIGHTS

Light Distance                  100m

Light Control                    Support

GENERAL

Cable                                Integrated Cable

Dimensions (LxWxH)         319 x 240 x 420 (mm) [ 12.6″ x 9.4″ x 16.5″ (in)]

Weight                              16kg [35.3 lbs]

Mount                               Wall
