2MEXH-2414 Explosion Proof Dome Camera Housing

SKU: 2MEXH-2414

Key Features:

  • Explosion proof housing for dome cameras
  • Class I, Div 2
  • Application: Gas Zone 1/2, Dust Zone 21/22
  • Material: 304 or 316L stainless steel
  • Optional electropolished or corrosion-resistant paint finish

Features

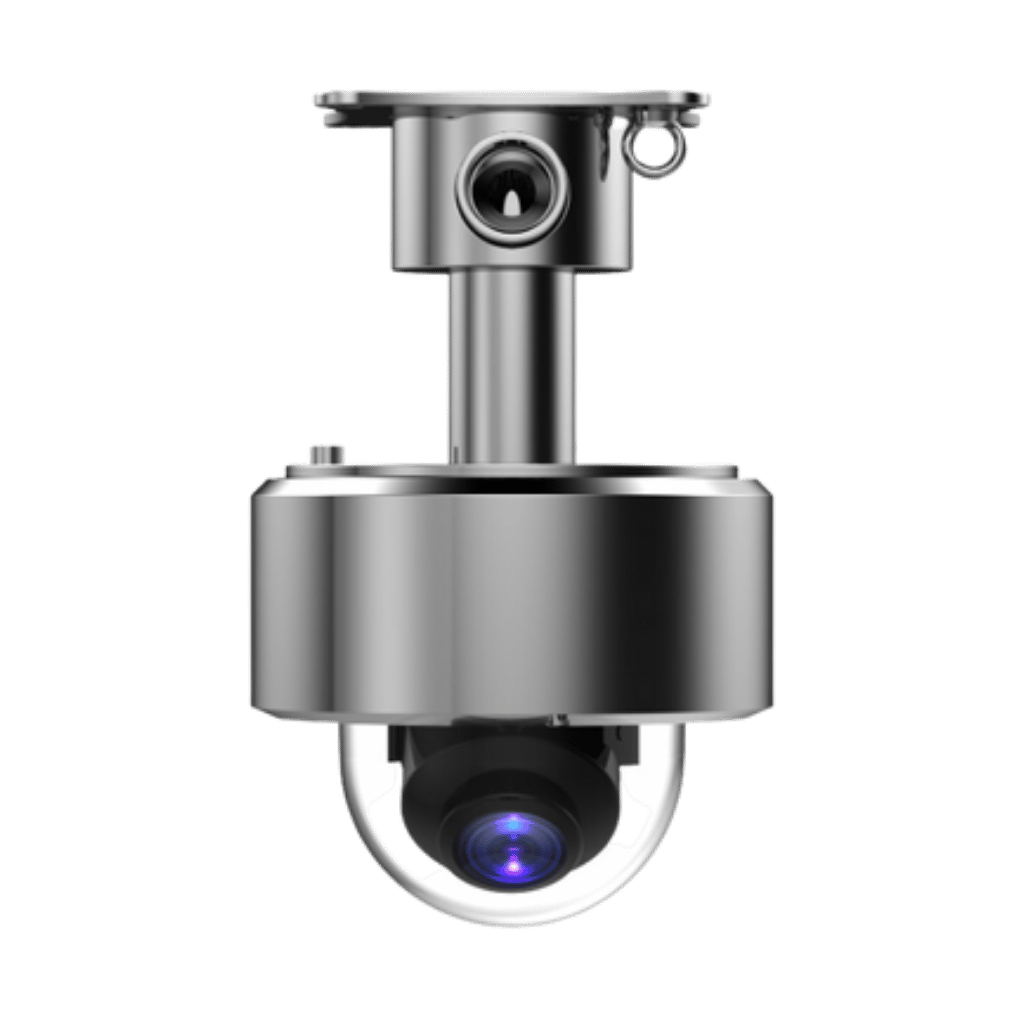

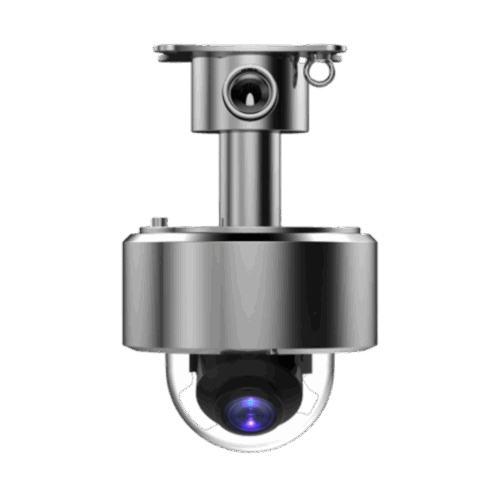

The 2MEXH-2414 explosion proof dome camera housing is designed minimize explosive risks and protect cameras in oil & gas sites, chemical plants, marine facilities, and other hazardous areas. Built from heavy-duty stainless steel 304/316L, it offers long-lasting resistance against rust, corrosion, and chemical exposure.

With IP66/IP68 ratings, the sealed housing blocks out dust and withstands powerful water jets, even when submerged. It performs reliably across extreme temperatures, from -40°C to 60°C (-40°F to 140°F), and endures humidity levels up to 95%.

Compact yet durable, the housing measures Ø144 mm x 245 mm. It includes a G-3/4″ threaded outlet hole for secure cable entry and conduit connection, and can be installed using a ceiling mount bracket for stable placement.

Materials

304 Stainless Steel, 316L Stainless Steel

Stainless Steel Type

304, 316L

Country of Origin

China

Product Documents

Model / SKU Stainless Steel Type
2MEXH04-2414 304
2MEXH16-2414 316L

The 2MEXH-2414 explosion proof dome camera housing is designed minimize explosive risks and protect cameras in oil & gas sites, chemical plants, marine facilities, and other hazardous areas. Built from heavy-duty stainless steel 304/316L, it offers long-lasting resistance against rust, corrosion, and chemical exposure.

With IP66/IP68 ratings, the sealed housing blocks out dust and withstands powerful water jets, even when submerged. It performs reliably across extreme temperatures, from -40°C to 60°C (-40°F to 140°F), and endures humidity levels up to 95%.

Compact yet durable, the housing measures Ø144 mm x 245 mm. It includes a G-3/4″ threaded outlet hole for secure cable entry and conduit connection, and can be installed using a ceiling mount bracket for stable placement.

Specifications

Materials

304 Stainless Steel, 316L Stainless Steel

Stainless Steel Type

304, 316L

Country of Origin

China

Product Documents

2MEXCB-D Explosion-Proof Dome Camera Ceiling Bracket

Explosion-proof ceiling bracket for dome cameras. 304/316L stainless steel. 30 kg load capacity. Ideal for hazardous industrial environments.
2MEXCB-D

2MEXWB-DC Custom Explosion-Proof Dome Camera Wall Mount Bracket

2MEXWB-DC customizable explosion-proof dome camera wall mount — 304/316L stainless steel, ATEX-rated, built to spec for any dome camera.
2MEXWB-DC

2MEXWB-D Explosion-Proof Dome Camera Wall Mount Bracket

2MEXWB-D explosion-proof dome camera wall mount bracket — 304/316L stainless steel, ATEX-rated, compatible with 2M explosion-proof dome cameras.
2MEXWB-D
Model / SKU Stainless Steel Type
2MEXH04-2414 304
2MEXH16-2414 316L
