Features

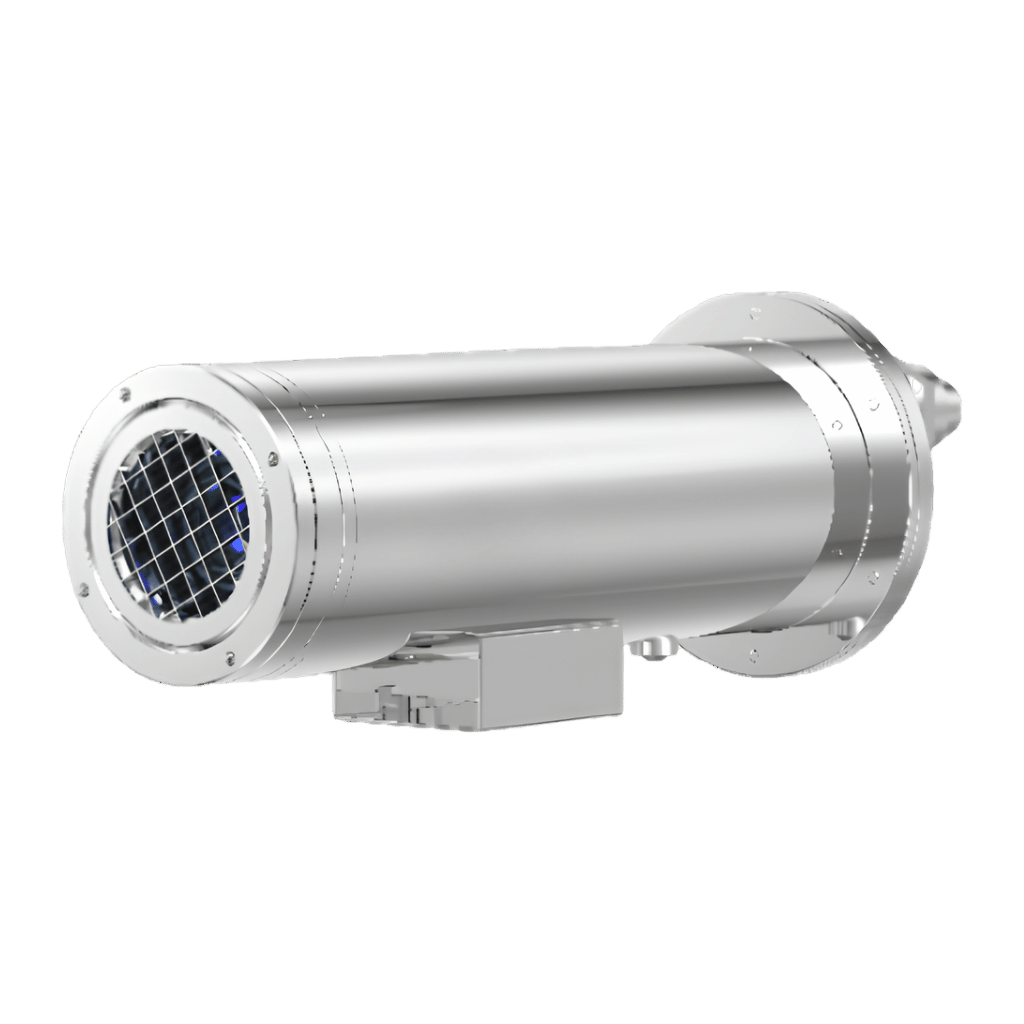

Deploying security cameras in highly volatile industrial environments requires protective hardware that leaves absolutely no room for error. The 2MEXH-4616 ATEX bullet camera housing by 2M Technology delivers uncompromising protection for your most critical surveillance assets. Engineered for life and built to withstand the harshest conditions, this housing ensures your cameras remain safe, operational, and isolated from explosive external elements.
Certified for the Most Hazardous Zones
When combustible gases or combustible dust are present, standard camera housings become severe safety liabilities. This ATEX bullet camera housing is fully certified for explosive atmospheres, meeting rigorous global standards. You can read more about the strict safety directives required for these environments on the European Commission’s ATEX equipment page.
The unit is specifically rated for deployment in hazardous Gas Zones 1 and 2, as well as Dust Zones 20, 21, and 22. It carries precise safety certificate markings, including II 2G Ex db IIC T6 Gb for gas and II 2D Ex tb IIIC 85°C Db for dust. This guarantees that internal electronic sparks or heat will not ignite the surrounding atmosphere.
Heavy-Duty Stainless Steel Construction
To survive corrosive and punishing industrial sites, the ATEX bullet camera housing is constructed from heavy-duty Stainless Steel 304 or 316L. For facilities requiring even greater surface resilience, an electropolish surface treatment is available as an option.
The physical build is incredibly rugged. The housing weighs 8.6 kg (19 lbs) and measures 464 mm by 166 mm by 171 mm. To accommodate secure wiring, it includes two M25 x 1.5 cable thread holes. For easy installation across your facility, compatible wall mounts, corner brackets, and pole mounts are readily available.
Ultimate Environmental Protection
Industrial sites are often exposed to extreme weather, heavy washdowns, and intense dust. This ATEX bullet camera housing boasts remarkable IP66, IP68, and IP69 ingress protection ratings. These ratings, defined by the International Electrotechnical Commission (IEC), mean the unit is completely dust-tight, can handle prolonged submersion in water, and easily withstands high-pressure, high-temperature washdowns.
It also performs flawlessly across severe climate shifts, maintaining an operating temperature range from -40°C to +60°C (-40°F to 140°F). The enclosure is rated to handle ambient air pressures between 80 and 110 KPa and operates safely in humidity levels up to 95% RH.
Technical Specifications at a Glance
- Material: Stainless Steel 304/316L (optional Electropolish finish)
- Hazardous Area Ratings: Gas Zones 1/2, Dust Zones 20/21/22
- Explosion-Proof Certifications: ATEX, IECEx
- Certificate Markings: II 2G Ex db IIC T6 Gb, II 2D Ex tb IIIC 85°C Db
- Ingress Protection: IP66, IP68, IP69
- Dimensions (L × W × H): 464 x 166 x 171 mm
- Weight: 8.6 kg (19 lbs)
- Cable Interface: 2 pieces, M25 x 1.5
