Features

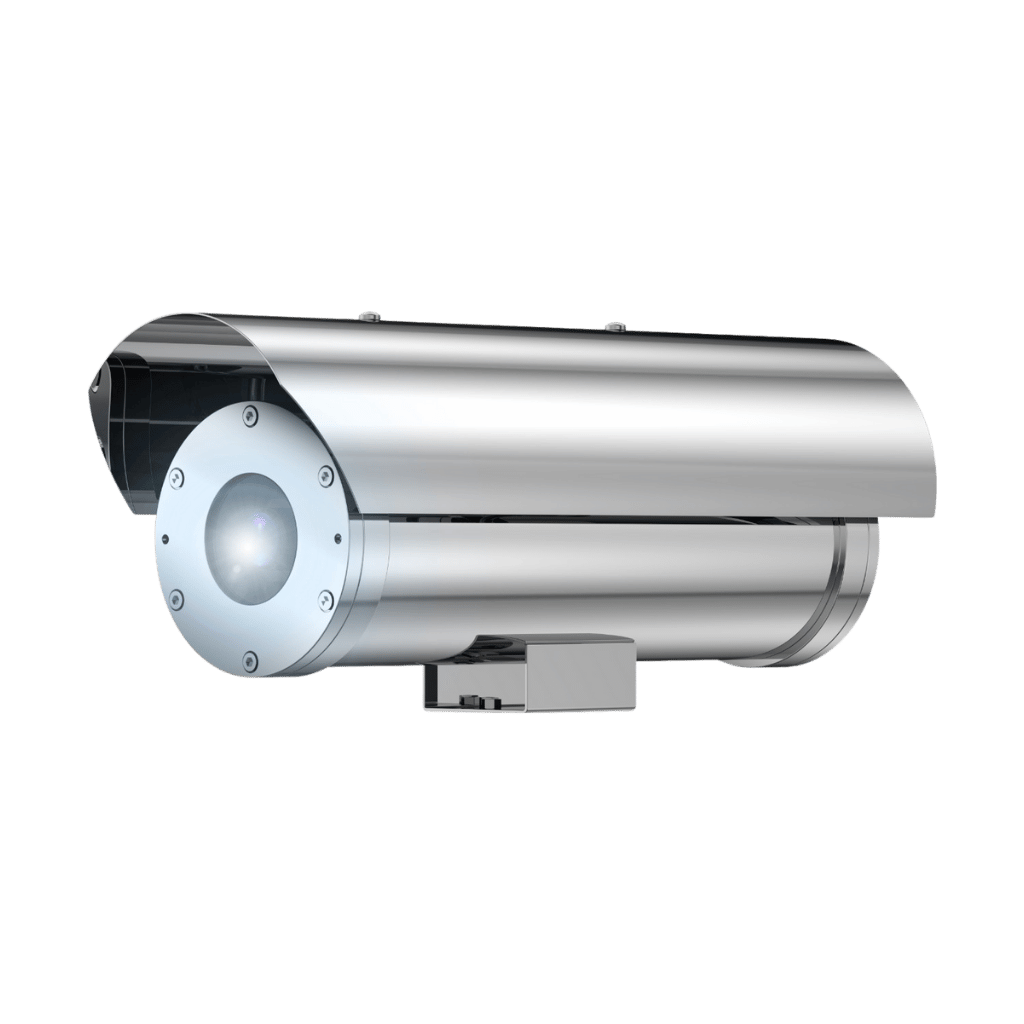

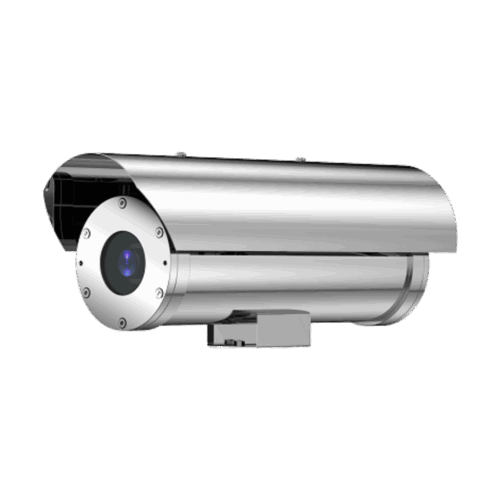

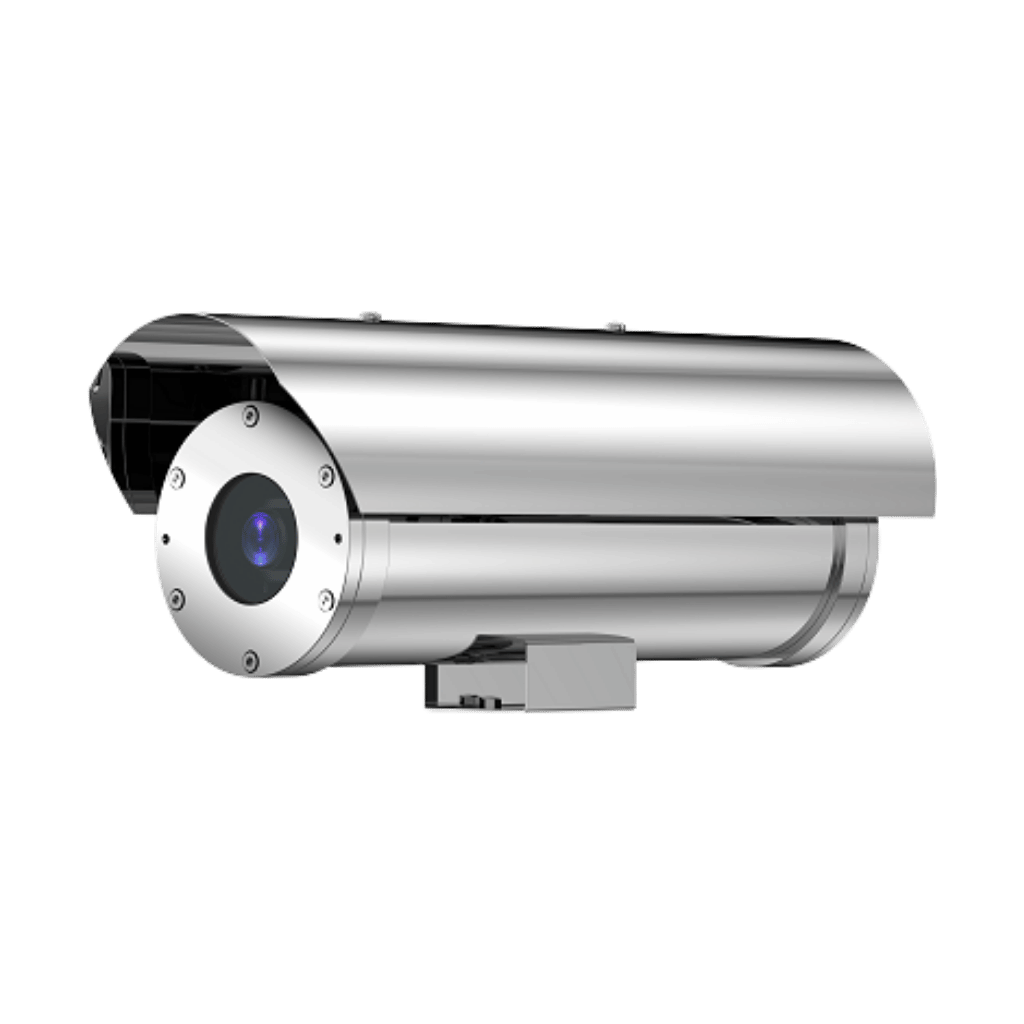

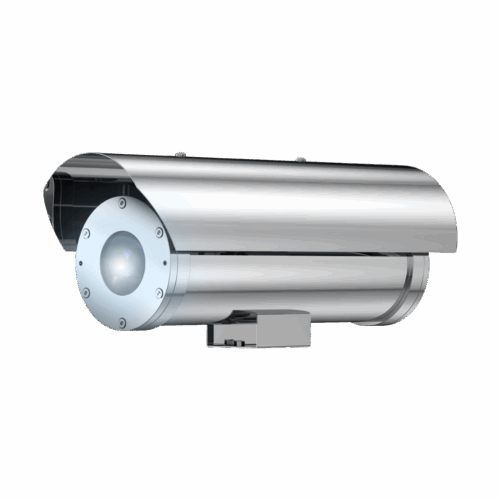

The 2MEXH-5217 is a rugged explosion-proof fixed bullet camera housing designed to safeguard surveillance equipment in the world’s most hazardous environments. Built with heavy-duty stainless steel and certified to international ATEX and IECEx standards, this housing provides unmatched reliability in areas where flammable gases, combustible dust, and extreme conditions are present.
Engineered for Hazardous Industrial Environments
The 2MEXH-5217 is ATEX and IECEx certified for use in Gas Zones 1/2 and Dust Zones 21/22, ensuring compliance in industries such as oil and gas, chemical processing, and mining.
Certified under Presafe 17 ATEX 11326X and IECEx PRE18.0012X, this housing guarantees safe operation in volatile environments.
Durable Stainless Steel Construction
Crafted from 304 or 316L stainless steel, the housing withstands corrosion, impacts, and harsh weather conditions. An optional electro-polished or painted finish provides additional resistance against marine salt, chemical exposure, and industrial pollutants, making it suitable for both onshore and offshore applications.
With IP68 protection, the enclosure is fully dust-tight and submersible up to 2 meters for 2 hours, ensuring uninterrupted camera performance even in the harshest conditions.
Climate-Resilient Design
The 2MEXH-5217 is engineered for wide temperature tolerance, making it reliable in both desert heat and arctic cold:
- Normal enclosure: -40°C to +60°C (-40°F to +140°F)
- Short enclosure/cylinder: -40°C to +58°C (-40°F to +136°F)
- Optional low-temperature version: -55°C to +60°C (-67°F to +140°F)
With high resilience to air pressure (80 kPa – 110 kPa) and humidity up to 95% (non-condensing), it maintains protection in demanding environments.
Optimized for Clear Image Performance
This housing is designed with features that maintain camera clarity and performance:
- Integrated Sunshade: Minimizes glare, blocks direct sunlight, and protects against falling debris.

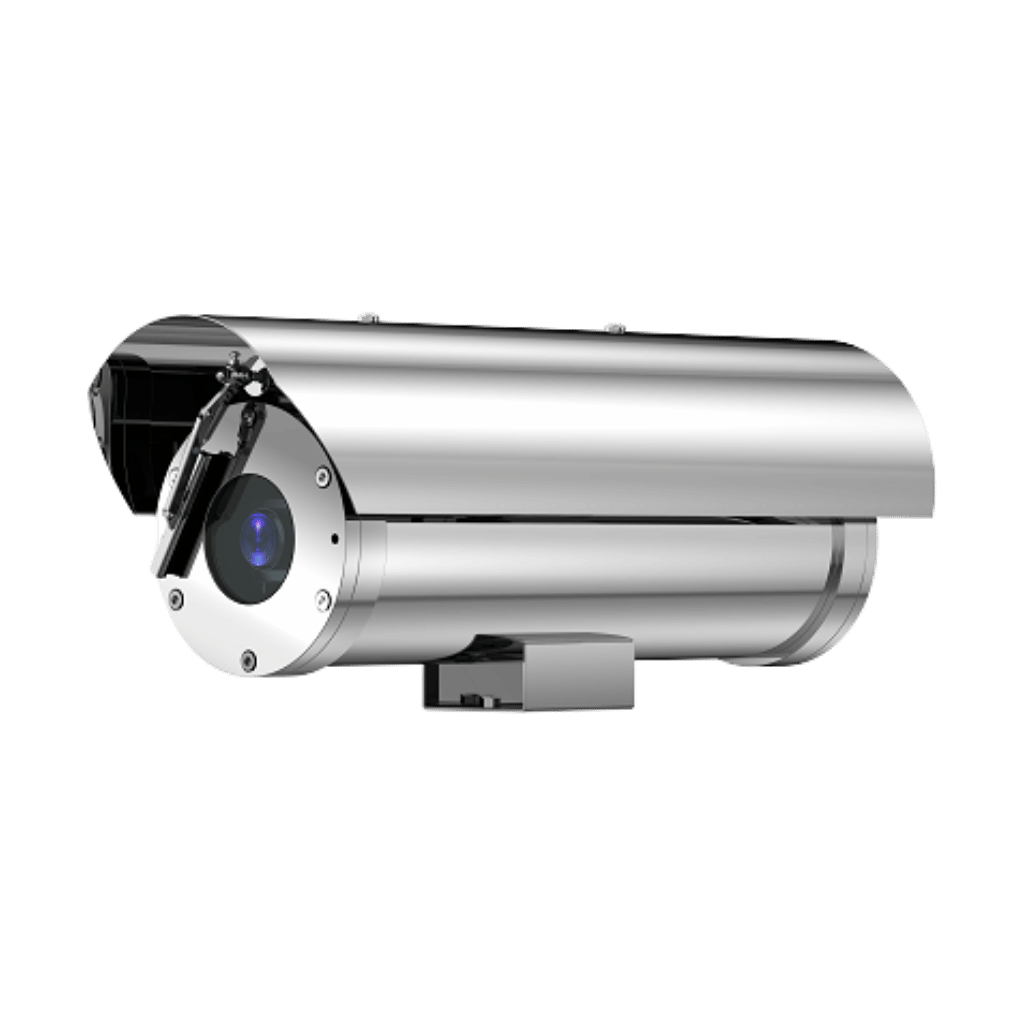

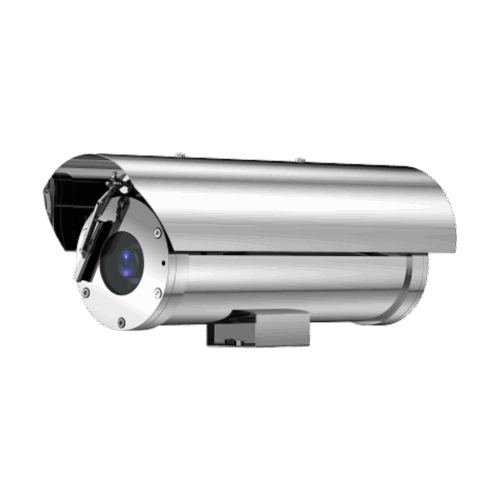

- Optional Built-In Wiper: Clears condensation, rain, or water droplets from the lens window, ensuring unobstructed viewing in all weather.
Flexible Integration & Compatibility
The 2MEXH-5217 supports a wide range of camera brands, allowing seamless integration into existing or new surveillance networks. It includes dual M25x1.5 (or optional M27x1.25) cable entries for easy connection to power, network, or fiber systems.
Built for Safety. Built to Last.
The 2MEXH-5217 explosion-proof bullet camera housing is the ideal solution for industries requiring safe, reliable, and durable video surveillance in hazardous locations. Its heavy-duty build, global certifications, and performance-enhancing features make it a trusted choice for oil and gas sites, chemical plants, offshore platforms, and other high-risk facilities.
