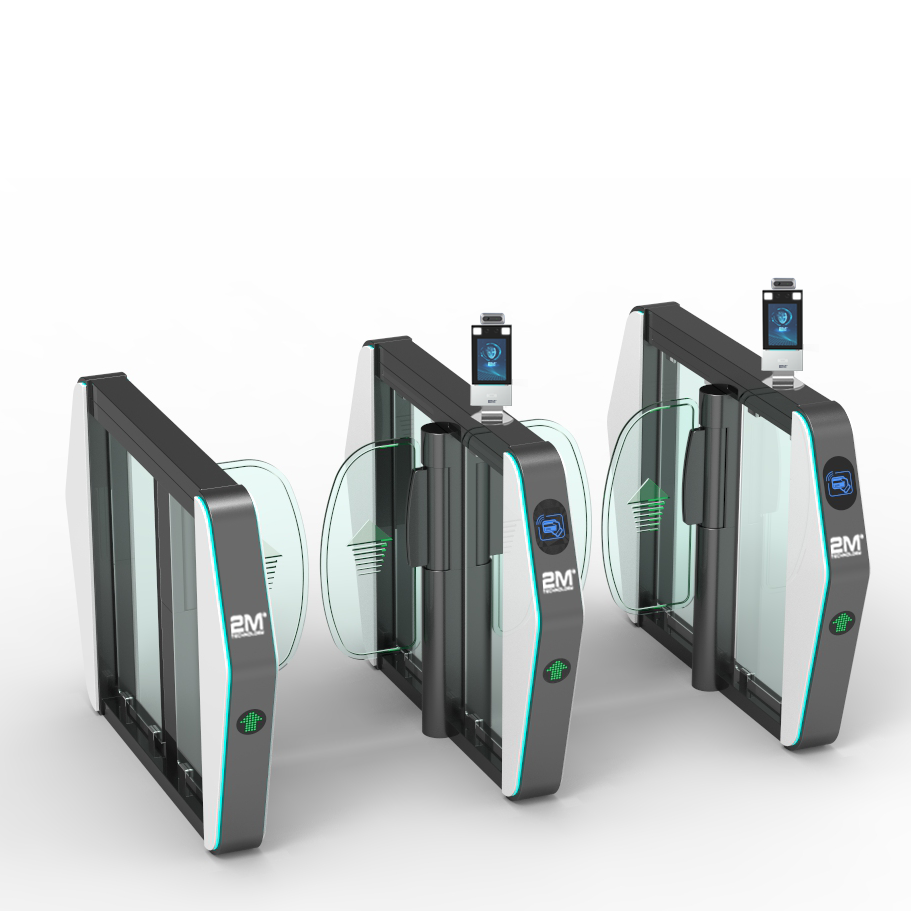

2MGST-4 Face Recognition and Thermal Detection Access Control Swing Turnstile

REQUEST QUOTE (for best price)
  • Speed gate retractable turnstile
  • Temperature and face recognition access control
  • Pass rate: 35 person /min
  • Unlock time: 0.2s
  • Constructed of 304 stainless steel
  • Can support also two-sided card readers, paper tickets, fingerprint / bio-metric scanning, and coins

Product Documents

Compare

2MRST-1 Face Recognition and Thermal Detection Access Control Retractable Door Turnstile

Features:

  • Vertical Swing turnstile,Stainless steel 304#
  • Size 55.1″ x 7.9″ x 39.4″ (in); Gross weight: 70kg, single: 95kg
  • Unlock time: 0.2s ;
  • Pass rate: 35 person /min;
  • Pass width:≤550mm;
  • Input :100V~240V;
  • Driving voltage: 24v;
  • Environment: -25~+70;
  • Power consumption:30w;
  • Input: 12v dry contact;
  • Automatic open when power off
  • Support non-contact detection, support warning people with abnormal body temperature
  • Support body temperature detection and personnel information binding, which can quickly confirm personnel information and do body temperature detection
  • Built-in deep learning dedicated chip, supports local offline recognition, 10,000 face capacity, face whitelist (1:N)
  • Fastest recognition time 0.2 seconds, various model merge mode are used to reduce false rate and increase pass rate
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Support anti-spoofing detection based on deep learning algorithm, effective against fraud such as photo and video

NOTE: The model numbers and prices represent single units and ARE NOT as illustrated in the images. For more information on pricing contact our representatives.

Temperature Detection Features

Face Recognition and Temperature Detection Access Control Technology

Control access to buildings, offices, factories, plants and any facility by verifying persons identity with a 99% face recognition accuracy. Does not allow access to anyone with a high fever or without a Mask. 2M terminal software can determine if the person passing by is wearing a mask or not.It can also read his/her temperature and determine based on configurable pre-defined temperature threshold if access should be granted or not.

Module Features:

  • Fast recognition time within 0.2 seconds. Various models merge mode are used to reduce false rate and increase pass rate
  • Non-contact temperature detection
  • Body temperature detection and personnel information binding
  • Configurable temperature detection threshold value
  • Temperature range between 30˚C to 45˚C
  • Accuracy between 0.1˚C to ≤0.3˚C, distance is up to 1m
  • Learning algorithm maximizes accuracy rate >99% and reduce the false rate <1%
  • The dedicated learning chip, supports local offline recognition up to a 10K face capacity, face whitelist (1:N)
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Anti-spoofing detection based on deep learning algorithm

Want to see this product in action? Schedule a live demo now!
REQUEST QUOTE (for best price)

Options Available with this Model

MODEL NUMBER



MOTOR TYPE

2MGST-4 (SINGLE FLAP)

2MGST-4D (DOUBLE SIDED FLAPS)



BRUSH MOTOR                          BRUSHLESS MOTOR                            SERVO MOTOR

BRUSH MOTOR

BRUSHLESS MOTOR

SERVO MOTOR

Drive Type

Drive By Brush Motor

Drive By Brushless Motor

Drive By Servo Motor

Drive By Brush Motor

Drive By Brushless Motor

Drive By Servo Motor

Arm Material

Acrylic

Acrylic / Tempered Glass

Acrylic / Tempered Glass

Acrylic

Acrylic / Tempered Glass

Acrylic / Tempered Glass

Power Off

Automatic Open

Automatic Open

Automatic Open

Automatic Open

Automatic Open

Automatic Open

Lane Width

0-23.6″ (in) [0-600mm]

0-35.4″ (in) [0-900mm]

0-35.4″ (in)

[0-900mm] or Longer

0-35.4″ (in)

[0-900mm] or Longer

0-35.4″ (in)

[0-900mm] or Longer

0-35.4″ (in)

[0-900mm] or Longer

Speed

1 Second Not Adjustable

0.5 Seconds Adjustable

Max 0.2 Second And Can Adjustable

1 Second Not Adjustable

0.5 Seconds Adjustable

Max 0.2 Second And Can Adjustable

Max Capacity Flow

1000

2000

More Than 2000

1000

2000

More Than 2000

Life Time

2-3 Years

3-5 Years

At Least 5 Years

2-3 Years

3-5 Years

At Least 5 Years

MTBF

5 Million

10 Million

20 Million

5 Million

10 Million

20 Million

Controller

Standard Function Can Be Set

Standard Function Can Be Set

Full Function Can Be Set

Standard Function Can Be Set

Standard Function Can Be Set

Full Function Can Be Set

Structure

Stable

Strong

Strong

Stable

Strong

Strong

Mechanical Friction

Yes

Some

None

Yes

Some

None

Noise

Moderate

Quiet

Almost None

Moderate

Quiet

Almost None

Dimensions 55.1 × 11.8 × 39.4 in
Country of Origin

China

GATE FEATURE
Turnstile type speed gate turnstile
  Cabinet material 304 stainless steel (standard)
316 stainless steel (optional)
  Arm material Acrylic (optional)
Tempered glass (optional)
  Finish   Stainless steel satin finish
Function Fail-safe, anti-clamping
Dimension 55.1” x 11.8” x 39.4” (in)
Passage width Customized
Direction Single / bidirectional
Power supply AC110–220 V, 50/60Hz
Unlock time Adjustable
Working environment Indoor
Indicator lights Yes
      Motor   DC brush motor (standard)
DC brushless motor (optional)
DC servo motor (optional)
FACIAL RECOGNITION
Operation System Linux
Face Recognition Accu- racy Rate >99%
Face Recognition Time 200ms
Face Capacity 10,000
Card Capacity 100,000
Storage Capacity 4GB
Event Capacity 30,000 (with images)
Measurement Range 30°C - 45°C
Measurement Accuracy 0.1°C
Measurement Deviation ≤±0.3°C
Measurement Distance 1m
  Authentication Mode Face Whitelist: (1:N)
Card:(1:N)
Face +Body temperature
Card Type Mifare 1 Card
User Management Support user library addition, deletion, update
Record Management Support local recording and real-time upload
  Interface LAN×1, Wiegand Input×1, Wiegand Output×1, RS485×1, Alarm Input×2, Alarm Output×1, USB2.0×1, Lock×1, Door Contact ×1, Exit Button×1
Power Supply Input 12V±25% DC
Screen Touch Screen, Size:7 inch, Resolution: 600×1024
Camera Dual Lens, 2MP, 1080P
Supplement Light LED soft light and infrared light
Dimensions (L×W×H) 134.0mm×33.0mm×305.0mm
Working Environment For access control terminal: -20°C~+65°C, Relative Humidly<95% (non-condensing)
Protection Level Both terminal and module: IP 54
Application Situation Indoor, No wind
