2MPWT-i24Z Indoor-Rated 24 Zones Portable Walkthrough Metal Detector

SKU: 2MPWT-i24Z

Key Features:

  • Portable and foldable
  • Multi-zone detection with 8, 16, or 24 independent zones
  • Adjustable sensitivity up to 255 levels per zone for customizable screening
  • High throughput, capable of screening over 100 people per minute
  • Configurable audible and visual alarms

Features

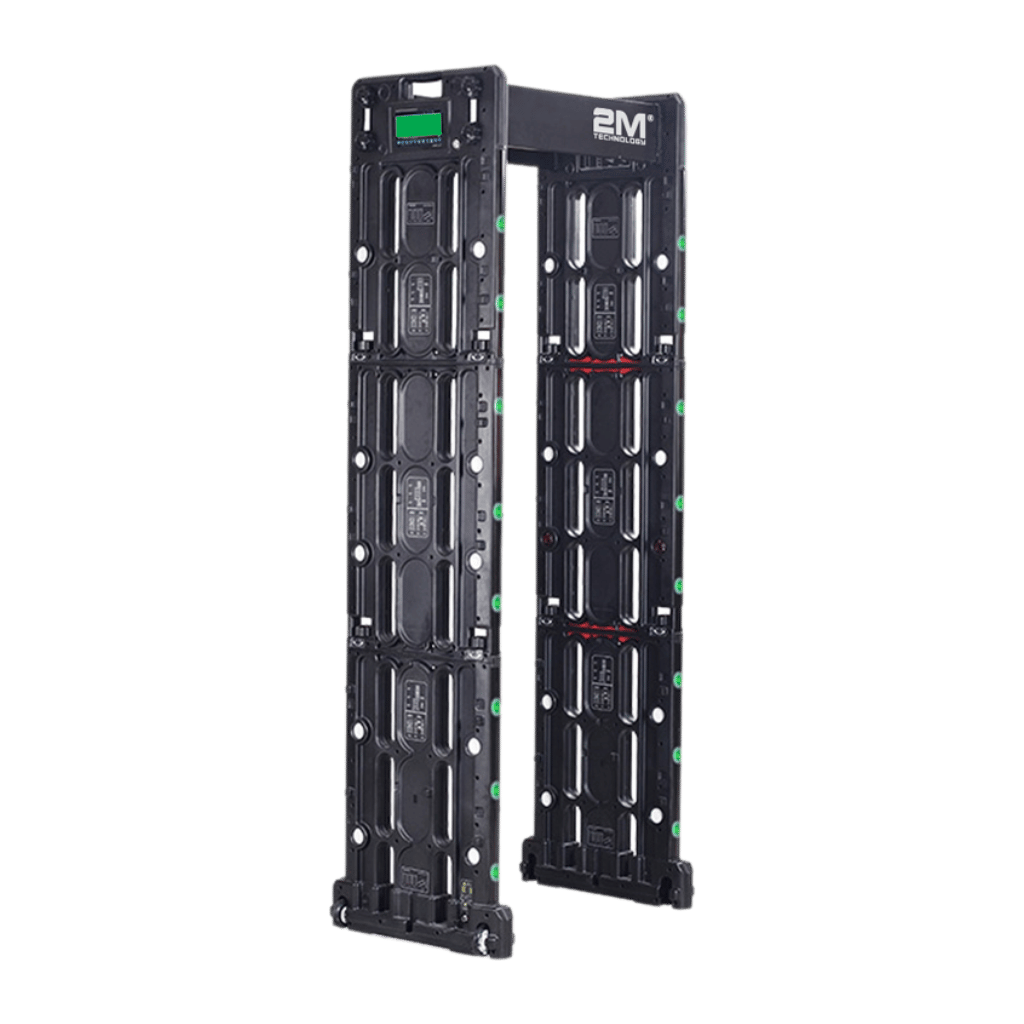

The 2MPWT-i24Z is a portable, indoor-rated walk-through metal detector designed for fast and reliable deployment in a variety of security settings. Its lightweight, foldable design makes it easy to transport and store, and setup can be completed by a single person in under 5 minutes. With 8, 16, or 24 detection zones, it pinpoints metallic threats accurately, and each zone’s sensitivity can be adjusted from 0 to 255 for fully customizable screening.

The detector includes a 7-inch touch-screen LCD for easy parameter control and a self-diagnostic system that automatically runs on startup to ensure reliable operation. Sound and light alarms with configurable tones and durations provide clear alerts, while the real-time inquiry function allows operators to monitor system status and activity efficiently. Designed for high throughput, it is capable of screening more than 100 people per minute.

Powered by a built-in battery with up to 4 hours of operation, the system also offers optional battery extensions of 8, 16, 24, 48, or 72 hours. Operating reliably in temperatures from -20°C to +60°C (-4°F to +140°F) and up to 99% non-condensing humidity, the 2MPWT-i24Z is built for indoor environments with consistent performance.

Certified to ISO9001, ISO14001, ISO45001, and CE standards, the 2MPWT-i24Z combines portability, precision, and adaptability for professional indoor security applications.

Specifications

Weight 110.2 lbs
Dimensions 37.3 × 26.2 × 20.7 in
Metal Detection Zones

24

Country of Origin

China

Product Documents

The 2MPWT-i24Z is a portable, indoor-rated walk-through metal detector designed for fast and reliable deployment in a variety of security settings. Its lightweight, foldable design makes it easy to transport and store, and setup can be completed by a single person in under 5 minutes. With 8, 16, or 24 detection zones, it pinpoints metallic threats accurately, and each zone’s sensitivity can be adjusted from 0 to 255 for fully customizable screening.

The detector includes a 7-inch touch-screen LCD for easy parameter control and a self-diagnostic system that automatically runs on startup to ensure reliable operation. Sound and light alarms with configurable tones and durations provide clear alerts, while the real-time inquiry function allows operators to monitor system status and activity efficiently. Designed for high throughput, it is capable of screening more than 100 people per minute.

Powered by a built-in battery with up to 4 hours of operation, the system also offers optional battery extensions of 8, 16, 24, 48, or 72 hours. Operating reliably in temperatures from -20°C to +60°C (-4°F to +140°F) and up to 99% non-condensing humidity, the 2MPWT-i24Z is built for indoor environments with consistent performance.

Certified to ISO9001, ISO14001, ISO45001, and CE standards, the 2MPWT-i24Z combines portability, precision, and adaptability for professional indoor security applications.

Specifications

Weight 110.2 lbs
Dimensions 37.3 × 26.2 × 20.7 in
Metal Detection Zones

24

Country of Origin

China

Product Documents
