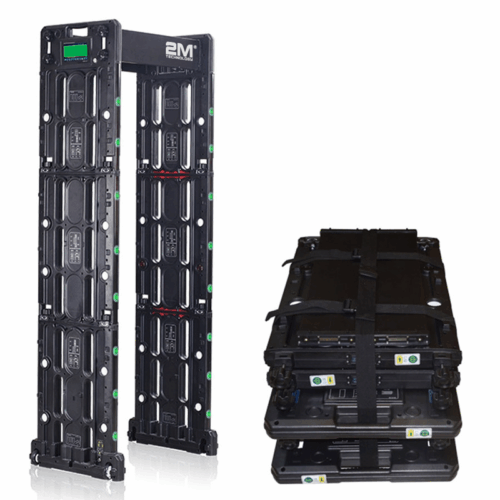

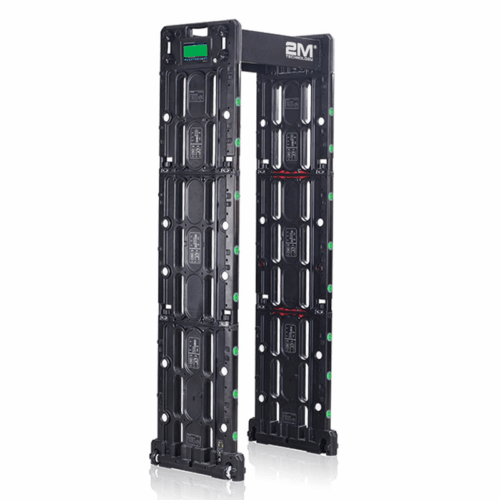

2MPWT-O24Z Outdoor Rated, 24 Zone Portable Walkthrough Metal Detector

  • Outdoor 24 zones
  • Portable; easy to move only 1 person required without disassembly
  • ADA Compliant Models Available
  • Waterproof construction
  • Remote access

Note: This is a special order item. Allow 4-6 weeks for delivery.

Product Documents

  • Outdoor 24 zones
  • Portable; easy to move only 1 person required without disassembly
  • ADA Compliant Model Available
  • Can be controlled by mobile APP
  • IP67 rated
  • Self-diagnostic system: When turn on, system will detect adaptively hardware working
  • Waterproof construction
  • Remote access
  • Easy to assemble and disassemble
  • Visual and audible alarm
  • WIFI Network Capability option available
  • Harmless to pregnant women and people with pacemakers
  • Can connect to a computer, camera, turnstile, .. (optional)
  • Multi-zone detecting technology: 8, 16, 24 zones, can be adjusted and
  • Wide range of frequencies (0-120), and adaptive working environment function
  • Start and stop technology: Infrared device will automatically shut off during the time that it is not being used which extends the lifespan of this
  • Sensitivity of each zone can be adjusted
  • Specific zones can be selected to accommodate any need
  • Sound and light Alarm tones and time can be adjusted.
  • Inquiry function: System provides real-time information inquiry function
Weight99.2 lbs
Dimensions88.6 × 33.5 × 19.7 in
Zone Options24 zones
Detecting TargetContraband goods, more magnet metals
Vertical Outside Size2250 x 850 x 500 (mm) 88.6" x 33.5" x 19.7" (in)
  Tunnel Size2051 x 710 x 500 (mm) (Width customized range 700~1500 mm) 80.7" x 27.9" x 19.7" (in) (Width customized range 27.6"~59.1" inches)

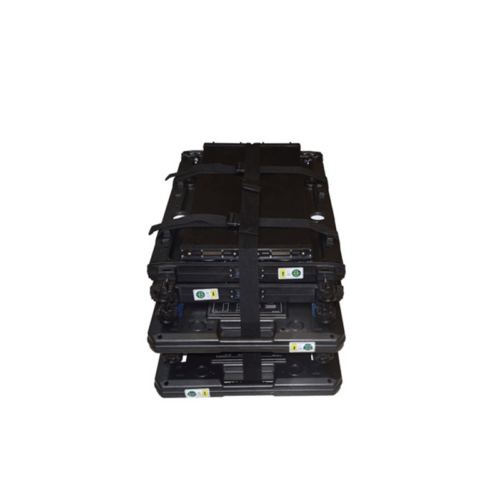

Fold Size889 x 606 x 484 (mm) 35" x 23.9" x 19.1" (in)
Working Humidity99% non-condensing
Power Supply MethodPolymer batteries, they can last 8,16,24,48,72 hours and can be selected in optional
InputAC 110V~240V/50HZ~60HZ
OutputDC 12V/5A 12W
Working Temperature-40°C ~ 85°C
Package Size948 x 666 x 525 (mm) 88.6" x 33.5" x 19.7" (in)
WeightN.W.: 42kg, G.W.: 50kg
