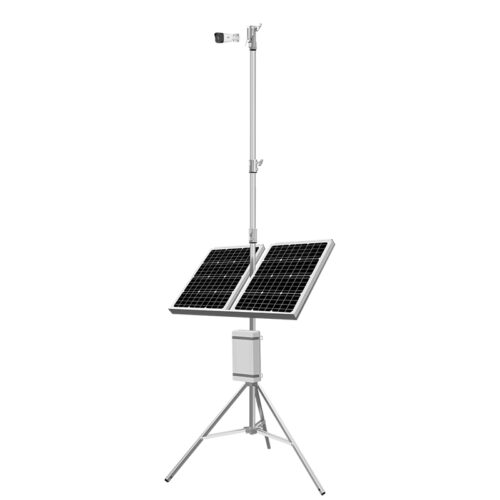

2MSP1B-4G5D Portable Solar Solution with a 4MP Mini Fixed Bullet Camera and 4G Router Standby 24hr x5 Days

4MP Mini fixed bullet cameras
24 hour 5 Day Standby
Day/night functionality
Smart IR, up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance

Product Documents

Downloads

2MSP1B-4G3D Spec Sheet

Add to Wishlist

Compare

Add to Wishlist

Compare

Description
Specification

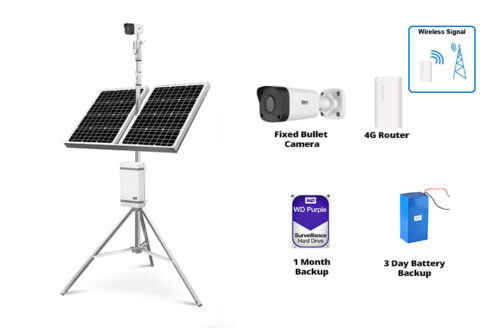

2MSP1B-4G5D Portable Solar Solution with a 4MP Mini Fixed Bullet Camera and 4G Router Standby 24hr x5 Days:

4MP Mini Fixed Bullet Network Camera: 2MBIP-4MIR30-E

Day/night functionality
Smart IR, up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)

Solar Power System

Mono-crystalline silicon solar cell module with a 25 year service life
Durable Lithium iron phosphate battery with an 8 year service life
Standby time: 24 hours for 5 days
Easy to manage controller
Integrated power cabinet

Note: More cameras can be added. Further customization is available. Price will change accordingly.

SKU: 2MSP1B-4G5D Categories: Off the grid Portable Solar CCTV Systems, Solar Powered CCTV Tags: 24hr, 2MSP1B-4G5D, 4G Router, 4MP, bullet camera, Fixed, Mini, Portable Solar Solution, Standby, x5 Days

Description
Specification

Country of Origin	China

CAMERA: 2MBIP-4MIR30-E
Sensor		1/2.7″, 5.0 megapixel, progressive scan, CMOS
Lens		4.0mm@F2.0
DORI Distance	Lens	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	4.0mm	60	24	12	6
Angle of View (H)		79.7°		50.5°


Angle of View (V)	51.8°	35.9°
Angle of View (O)	98.0°	62.1°
Adjustment Angle	Auto/Manual, 1~1/100000 s
Shutter	Color: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR on
Digital Noise Reduction	2D/3D DNR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
WDR	D-WDR
VIDEO
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:5MP (2592*1944): Max.15fps; Sub Stream: 720P (1280×720): Max.20fps;
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
NETWORK
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration	ONVIF (Profile S), API
INTERFACE
Network	10/100M Base-TX Ethernet
GENERAL
Power	12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption	Power consumption: Max 4W
Dimensions (LxWxH)	167.3 × 62.9 ×62.7 mm (6.6” × 2.5” × 2.5”)
Weight	0.37kg (0.81lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F)
Humidity	Humidity :10%~90% RH (non-condensing)
Ingress Protection	IP67

BATTERY SPECIFICATIONS
Voltage	12.8V
Max Capacity	230AH
Discharge Stop Voltage	11.2V
Charge Stop Voltage	14.4V
Working Temperature	-10°C~70°C \| 14°F to 158°F
Service Life	2000-2500 circle life
Features	Deep discharge depth, no memory, environmental protection, portable, long life

SOLAR MODULE SPECIFICATIONS
MODULE DATA
Standard Power (W)	170	300	380
Working Voltage (V)	18.86	32.01	38.41
Working Current (A)	8.51	8.86	8.86
Open Circuit Voltage (V) Voc	22.35	37.27	44.72
Short-circuit Current (A) Isc	9.02	9.373	9.895
Cell Efficiency (%) CE	19.3	19.9	19.9
Module Efficiency (%) ME	>16.13	>17.43	>17.52
Tolerance (%)	±3%
Nominal Operating Cell Temperature	47°C (+/- 2°C) \| 116.6°F (+/- 35.6°F)
TEMPERATURE COEFFICIENTS
Short Circuit Current Coefficient Isc (%)	0.04°C / 32.1°F
Open Circuit Voltage Coefficient Voc (%)	-0.38°C / 31.3°F
Nominal Power Factor Pm (%)	-0.47°C / 31.2°F
Working Current Coefficient Im(%)	0.04°C / 32.1°F
Working Voltage Coefficient Vm (%)	-0.38°C / 31.3°F
COMPONENTS & MECHANICAL DATA
Solar Cell	156 x 156 Mono-crystalline silicon
Number of Cell (pcs)	4 x 9 series connection	6 x 10 series connection	6 x 12 series connection
Size of Module	1485 x 668 mm/ 4.9′ x 2.2′ ft	1640 x 990 mm/ 5.4′ x 3.2′ ft	1960 x 990/ 6.4′ x 3.2′ ft
Front Glass Thickness	3.2mm \| 0.1″ in
Surface Maximum Load Capacity	2400-5400Pa
Allowable Hail Load	23m/s, 7.53g \| 23m/s, 0.3oz
Weight Per Piece (kg)	15.26kg/33.6 lbs	18.86/41.6 lbs	22.16/48.9 lbs
Junction Box Type	Pass the TUV or CE Certificate
Bypass Diode Rating (A)	12 or None
Cable & Connector Type	Pass the TUV or CE Certificate
Frame (Material Corners,etc.)	30# / 35#	40# / 35#
Back Board Type (Brand Type)	TPT, PET or KPF
Working Temperature	-40°C to 85°C \| -40°F to 185°F
Standard Test Conditions	AM1.5 1000W/m2 25°C/77°F

CONTROLLER SPECIFICATIONS
System Voltage	12V/24V/48V/96V automatic recognition
Max Charging Current	40A
Fast Charging Voltage	14.0/28.0V/56V/112V(25°C)/(77°F)
Boost Charging Voltage	14.5/29.0V/58.0V/116V(25°C)/(77°F)
Equalization Charging Voltage	14.8/29.6V/59.2V/118.4V(25°C)/(77°F)
Float Charging Voltage	13.7/27.4V/54.8V/109.6V(25°C)/(77°F)
Low Voltage Alarm	11.0/22.0/44.0/88.0V
Low Voltage Disarming	12.5/25.0V/50.0V/100.0V
Storage Cell Type	Liquid, Gel, Lithium
Temperature Compensation	-4.17mV/K per cell (boost charging, equalization charging); -3.33mV/K per cell (float charging)
Solar Power End Max Voltage	55V/100V/150V/300V
Storage Cell Max Voltage	DC280V
Cable Length	120mm/80mm \| 4.7″ in/3.1″ in.
High Protection Voltage For Storage Cell	15.5/31.0/62V/124V
Communication Protocol	RS232/RS485/TCP/IP transmission wired or wireless by GPRS/3G/4G etc.
Recommended Wire Diameter	6mm2
Max Current Consumption	8mA /16mA /24mA
Working Temperature	-40°C ~ 60°C
Protection Level	IP30~IP68
Altitude (for reference)	4000~5000m \| 2.5~3.1 miles
