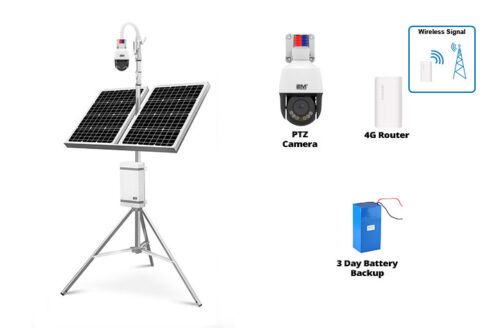

2MSP1P-4G5D Portable Solar Solution with Deterrent Motorized PTZ Dome and 4G Router Standby 24hr x 5 Days
REQUEST QUOTE (for best price)
- Light Predator illumination
- 2MP PTZ camera
- 24 hour 5 Day Standby
- 5x optical zoom
- up to 50m (164 ft) night vision and 10m (33 ft) warm light distance
- With wall mount
Product Documents
Downloads
2MSP1P-4G5D Portable Solar Solution with Deterrent Motorized PTZ Dome and 4G Router Standby 24hr x 5 Days:
Features:
PTZ Camera: 2MPIP-2MIR505X
• Light Predator illumination
• 2MP PTZ camera
• 5x optical zoom
• up to 50m (164 ft) night vision and 10m (33 ft) warm light distance
• With wall mount
Solar Power System
• Monocrystalline silicon solar cell module with a 25 year service life
• Durable Lithium iron phosphate battery with an 8 year service life
• Standby time: 24 hours for 5 days
• Easy to manage controller
• Integrated power cabinet
Note: More cameras can be added. Further customization is available. Price will change accordingly.
| Country of Origin | China |
|---|
| CAMERA: MODEL 2MPIP-2MIR505X | |||||
| Sensor | 1/2.8″ progressive scan, 2.0 megapixel, CMOS | ||||
| Lens | 2.8~12mm, AF automatic focusing and motorized zoom lens | ||||
| DORI
Distance |
Lens | Detect (m) |
Observe (m) | Recognize (m) |
Identify (m) |
| 2.8mm | 43.4 | 17.4 | 8.7 | 4.3 | |
| 12mm | 186.2 | 74.5 | 37.2 |
18.6 |
|
| Angle of View (H) | 32.5°~95.7° | ||||
| Angle of View (V) | 18.4°~52.2° | ||||
| Angle of View (O) | 36.9°~100.8° | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
| Minimum Illumination | Color: 0.001 lux (F1.6,AGC ON) 0 lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52 dB | ||||
| IR Range | UP to 50m (164ft) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Warm Light Range | UP to 10m (33ft) | ||||
| WDR | 120dB | ||||
| VIDEO | ||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | |
| H.264 code profile | Baseline profile, Main Profile | |
|
Frame Rate |
Main Stream:1080P (1920*1080):Max. 30 fps; 720P (1280×720): Max. 30 fps; Sub Stream: 720P (1280×720):Max. 30 fps; Third Stream: CIF (352*288): Max. 30 fps |
|
| Video Bit Rate | 128 Kbps~16 Mbps | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 8 areas | |
| ROI | Up to 8 areas | |
| Motion Detection | Up to 4 areas | |
| IMAGE | ||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |
| Digital noise reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal/Vertical/Horizontal/180° | |
| Dewarping | Support | |
| HLC | Supported | |
| BLC | Supported | |
| AUDIO | ||
| Audio Compression | G.711 | |
| Suppression | Supported | |
| Sampling Rate | 8 KHZ | |
| STORAGE | ||
| Edge Storage | Micro SD, up to 128 GB | |
| Network Storage | ANR, NAS(NFS) | |
| NETWORK | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL | |
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | |
| Client | Android®, IPhone®, 2M Station, 2M Guard | |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||
| PAN & TILT | ||
| Pan Range | 345° | |
|
Pan Speed |
0.1°/s ~ 50°/s | |
| Preset speed: 50°/s | ||
| Tilt Range | 90° | |
| Tilt Speed | 0.1° ~ 40°/s | |
| Preset speed: 40°/s | ||
| Number of Presets | 256 | |
| Patrol | Preset patrol, Route patrol | |
| INTERFACE | ||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |
| Built-in Mic | Supported | |
| Built-in Speaker | Supported | |
| Alarm Light | Supported | |
| CERTIFICATIONS | ||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |
| GENERAL | ||
| Power | DC 12V±25%, PoE (IEEE802.3 at) | |
| Power consumption: Max 16 W | ||
| Dimensions (Ø x H) | Ø 133 x 269.4 (mm) (Ø 5.2″x 10.6″ in.) | |
| Weight | 0.87 kg (1.92lb) | |
| Gross Weight | 1.13 kg (2.49lb) | |
| Material | Metal + Plastic | |
| Working Environment | -20°C ~ 60°C (-4°F to 140°F),
Humidity:≤95% RH (non-condensing) |
|
| Storage Environment | -20°C ~ 60°C (-4°F to 140°F),
Humidity:≤95% RH (non-condensing) |
|
| Surge Protection | 4KV | |
| Ingress Protection | IP66 | |
| Reset Button | Supported | |
| SOLAR MODULE SPECIFICATIONS | |||
| MODULE DATA | |||
| Standard Power (W) | 170 | 300 | 380 |
| Working Voltage (V) | 18.86 | 32.01 | 38.41 |
| Working Current (A) | 8.51 | 8.86 | 8.86 |
| Open Circuit Voltage (V) Voc | 22.35 | 37.27 | 44.72 |
| Short-circuit Current (A) Isc | 9.02 | 9.373 | 9.895 |
| Cell Efficiency (%) CE | 19.3 | 19.9 | 19.9 |
| Module Efficiency (%) ME | >16.13 | >17.43 | >17.52 |
| Tolerance (%) | ±3% | ||
| Nominal Operating Cell Temperature | 47°C (+/- 2°C) | 116.6°F (+/- 35.6°F) | ||
| TEMPERATURE COEFFICIENTS | |||
| Short Circuit Current Coefficient Isc (%) | 0.04°C / 32.1°F | ||
| Open Circuit Voltage Coefficient Voc (%) | -0.38°C / 31.3°F | ||
| Nominal Power Factor Pm (%) | -0.47°C / 31.2°F | ||
| Working Current Coefficient Im(%) | 0.04°C / 32.1°F | ||
| Working Voltage Coefficient Vm (%) | -0.38°C / 31.3°F | ||
| COMPONENTS & MECHANICAL DATA | |||
| Solar Cell | 156 x 156 Mono-crystalline silicon | ||
| Number of Cell (pcs) | 4 x 9 series connection | 6 x 10 series connection | 6 x 12 series connection |
| Size of Module | 1485 x 668 mm/
4.9′ x 2.2′ ft |
1640 x 990 mm/
5.4′ x 3.2′ ft |
1960 x 990/
6.4′ x 3.2′ ft |
| Front Glass Thickness | 3.2mm | 0.1″ in | ||
| Surface Maximum Load Capacity | 2400-5400Pa | ||
| Allowable Hail Load | 23m/s, 7.53g | 23m/s, 0.3oz | ||
| Weight Per Piece (kg) | 15.26kg/33.6 lbs | 18.86/41.6 lbs | 22.16/48.9 lbs |
| Junction Box Type | Pass the TUV or CE Certificate | ||
| Bypass Diode Rating (A) | 12 or None | ||
| Cable & Connector Type | Pass the TUV or CE Certificate | ||
| Frame
(Material Corners, etc.) |
30# / 35# | 40# / 35# | |
| Back Board Type (Brand Type) | TPT, PET or KPF | ||
| Working Temperature | -40°C to 85°C | -40°F to 185°F | ||
| Standard Test Conditions | AM1.5 1000W/m2 25°C/77°F | ||
| CONTROLLER SPECIFICATIONS | |
| System Voltage | 12V/24V/48V/96V automatic recognition |
| Max Charging Current | 40A |
| Fast Charging Voltage | 14.0/28.0V/56V/112V(25°C)/(77°F) |
| Boost Charging Voltage | 14.5/29.0V/58.0V/116V(25°C)/(77°F) |
| Equalization Charging Voltage | 14.8/29.6V/59.2V/118.4V(25°C)/(77°F) |
| Float Charging Voltage | 13.7/27.4V/54.8V/109.6V(25°C)/(77°F) |
| Low Voltage Alarm | 11.0/22.0/44.0/88.0V |
| Low Voltage Disarming | 12.5/25.0V/50.0V/100.0V |
| Storage Cell Type | Liquid, Gel, Lithium |
| Temperature Compensation | -4.17mV/K per cell (boost charging, equalization charging);
-3.33mV/K per cell (float charging) |
| Solar Power End Max Voltage | 55V/100V/150V/300V |
| Storage Cell Max Voltage | DC280V |
| Cable Length | 120mm/80mm | 4.7″ in/3.1″ in. |
| High Protection Voltage For Storage Cell | 15.5/31.0/62V/124V |
| Communication Protocol | RS232/RS485/TCP/IP transmission wired or wireless by GPRS/3G/4G etc. |
| Recommended Wire Diameter | 6mm² |
| Max Current Consumption | 8mA/16mA/24mA |
| Working Temperature | -40°C ~ 60°C |
| Protection Level | IP30~IP68 |
| Altitude (for reference) | 4000~5000m | 2.5~3.1 miles |
| BATTERY SPECIFICATIONS | |
| Voltage | 12.8V |
| Max Capacity | 230AH |
| Discharge Stop Voltage | 11.2V |
| Charge Stop Voltage | 14.4V |
| Working Temperature | -10°C~70°C | 14°F to 158°F |
| Service Life | 2000-2500 circle life |
| Features | Deep discharge depth, no memory, environmental protection, portable, long life |
