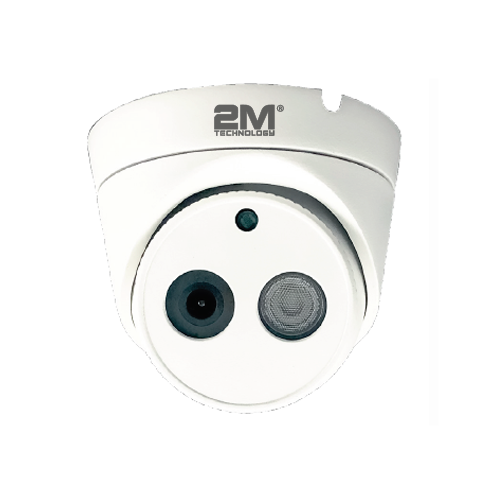

2MTT-4KIR20 8MP 4-in-1 IR Fixed Lens Turret Camera

  • Sony IMX335 8MP CMOS, capture image
  • High definition 4K output, clear image
  • 0.01Lux@ (F1.2, AGC ON), 0LUX with IR
  • Support AF port (Optional)
REQUEST DEMO

Product Documents

Features:

  • Sony IMX335 8 MP CMOS, capture image
  • High definition 4K output, clear image
  • 0.01Lux@ (F1.2, AGC ON), 0LUX with IR
  • Support AF port (Optional)
  • IR-CUT switch, CDS external control, D/N mode
  • Support OSD menu, suitable for user-defined settings
  • D-WDR
  • Auto adjusting 2D-DNR, 3D-DNR
  • Support UTC controller
Signal Type

Resolution

4k – 8 Megapixel (3840 x 2160)

Night Vision Type

Infra Red (IR) LED

Night Vision Distance

20 Meters (65 feet)

CAMERA
Sensor1/2.9″ Sony IMX335
SystemPAL/NTSC
Effective Pixel1920(H)x1080(V)
Lens3.6mm Fixed
IR Range20m
Illumination0.01Lux@(F1.2,AGC ON),0LUX with IR
ShutterAUTO
D/NEXT (Default) / AUTO / COLOR / B/W
SynchronouslyInternal
FPS1080P@25fps / 1080P@30fps
Video OutputAHD/TVI/CVI/CVBS (Optional)
OSD MENU
ExposureShutter/AGC/Sense-up/Brightness/DWDR
BacklightOff/BLC/HLC
WBATW /AWC-SET/Indoor/Outdoor/ Manual/AWB
D/N modeExternal Switch /Auto/Color/B&W
DNR2DNR/3DNR
Video SettingContrast/Sharpness/Color gain/DNR/System/DWDR
FunctionCam / Digital function / Motion detection / Privacy mask / Language / DPC / RS485
AdjustmentSharpness/LCD/LSC/NTSC/PAL
ExitSave & Exit/Reset/Not saved
GENERAL
Operation temperature-20°C to 60°C
Working humidityRelative humidity less than 90 %
PowerDC12V
