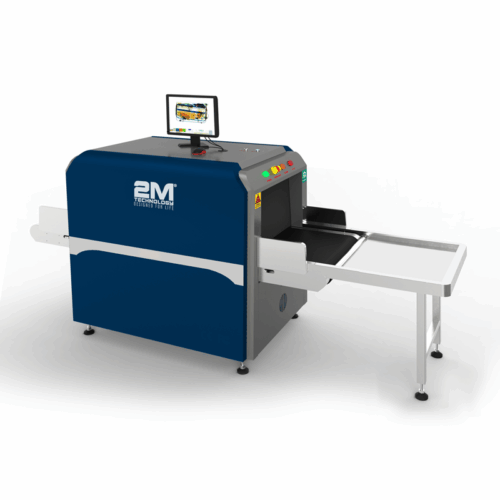

2MX-6040 X-Ray Baggage and Parcel Scanner
- Tunnel Size 606 x 405 (mm)/23.9″ x 15.9″ (in.)
- Available in two density penetration capacity 30mm or 38mm
- 1x 17 inch LCD monitor
- Threat alert and material classification
- Drug and explosives detection
- Also available in a higher penetration capacity Model: 2MX-6040H
Note: This is a special order item. Allow 4-6 weeks for delivery.
Product Documents
Downloads
Features:
- Radiation safe
- High resolution, high penetration and good image quality
- Multilingual operation
- Automatic built in test and self diagnosis
- Threat alert and material classification
- Energy saving design
- One key turn off with patent
- Drugs and explosives detection
- Also available in a higher penetration capacity Model: 2MX-6040H
The 2MX-6040 X-Ray Baggage and Parcel Scanner can be upgraded with optional AI (artificial intelligence) technology to enhance image clarity and analysis with every scan. When enabled, AI not only delivers sharper, more detailed images but also automatically identifies and labels different objects. This feature makes it easier for operators to differentiate between harmless items and potential threats, reducing the chances of false alarms. Dangerous items such as weapons, contraband, and prohibited materials are automatically detected with greater accuracy and speed, ensuring nothing is missed. This optional AI feature boosts both the safety and efficiency of baggage inspections, making it an excellent choice for environments where security is a top priority.
Models Available with Higher Penetration:
| MODEL | STEEL PENETRATION | X-Ray Generator |
| 2MX-6040 | 32mm | 140kv |
| 2MX-6040H | 38mm | 160kv |
**This machine is not a medical device. It is intended for industrial or security purposes only.**
Note: This is a special order item. Allow 4-6 weeks for delivery.
Specifications
| Weight | 1003.1 lbs |
|---|---|
| Dimensions | 79.02 × 33.66 × 48.94 in |
| Country of Origin | China |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Tunnel Size | 606 mm x 405 mm / 23.9″ x 15.9″ (in) |
| Unit Weight | 455 kg / 1003.1 lbs |
| Unit Size (LxWxH) | 79″ x 33.7″ x 48.9″ (in) / 2007 mm x 855 mm x 1243 mm |
| Gross Weight | 500 kg / 1102.31 lbs |
| Packing Size | #1: 86.6″ x 39.8″ x 61.4″ (in) / 550 cm x 101 cm x 156 cm #2: 33.9″ x 33.9″ x 55.9″ (in) / 86 cm x 86 cm x 142 cm #3: 26.4″ x 30.3″ x 4.7″ (in) / 67 cm x 77 cm x 12 cm |
| GENERAL SPECIFICATIONS | |
| Conveyor Speed | 0.22 m/s forward or backward |
| Conveyor Height | 668 mm / 26.3″ (in) |
| Conveyor Capacity | 150 kg / 330.7 lbs |
| Frame Design | 304 stainless steel, 2-5 mm cold rolled plate and square steel, double-layer staggered lead impregnated safety curtain |
| X-Ray Dose/Inspection | ≤2.5 µSv |
| X-Ray Leakage | ≤1 µSv/h at any point 5 cm outside the external surface. FDA standard is ≤5 µSv/h |
| Steel Penetration | 30 mm / 1.2″ (in) guaranteed |
| Wire Resolution | AWG40 guaranteed |
| Penetration Resolution | AWG32 guaranteed |
| Spatial Resolution | 1.0 mm Horizontal, 1.0 mm Vertical |
| Power Consumption | Max. 0.8 KW |
| Noise | <60 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
| X-RAY GENERATOR (SINGLE) | |
| Anode Voltage | 140 KV |
| Ray Direction | Upward |
| Cooling / Duty Cycle | Sealed oil cooling / 100% |
| COMPUTER AND OTHER | |
| Monitor | One 17″ (in) LCD monitors, 1280 x 1024 |
| Console | No |
| CPU | Intel (R) i3 (R) 3.3 GHz |
| RAM | 4 GB |
| Hard Disk | 2 TB |
| Keyboard | Special design |
| Platform | Windows® 10 |
| Backup | Uninterrupted Power Supply (UPS) |
| Electric Roller | Three-phase |
| OPERATING ENVIRONMENT | |
| Operation Temperature/Humidity | 5 °C – 40 °C (41 °F – 104 °F) / 0% – 90% (non-condensing) |
| Storage Temperature/Humidity | -20 °C – 60 °C (-4 °F – 140 °F) / 10% – 90% (non-condensing) |
| Operation Power | 220 V(+10% ~ -15%) 50±3 Hz Options: 100-130 V, 200-250 V, 60 Hz |
| UPS | Options: 15 mins, 30 mins, 60 mins, etc. |
| IMAGING SYSTEM | |
| Detector | 1152 channels in an L-Shaped Array |
| Image Processing | Color / black and white imaging, local enhancement, high penetration, low penetration, super enhancement, organic stripping, inorganic stripping, reverse color, brightness, darkening, gray level change/variable contrast, continuously zoom maximum 64x, pseudo color imaging, organics enhancement, suspicious item alarm and notation, edge enhancement imaging, etc. |
| Suspicious Alarm | Alarm and box line the suspicious objects including hard to penetrate material, explosives and drugs |
| Threat Image Projection (TIP) | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Recall | 30 recallable images |
| Image Archive | Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other formats |
| Miscellaneous Functions | Time/date display, counters, user management, system- on/x-ray-on timers, power on self test, built-in diagnostic facilities, bi-directional scanning, forced scanning, image search and export, system setting, system log, system standby and stimulant training, etc. |
| Options | Intelligent roller, remote work station, network integration, video monitoring, face recognition and baggage integration, recheck station, additional roller table, etc. |
*Product specifications and availability are subject to change without notice.
