Case Study: Multi-Site Ubiquiti UniFi Security Installation for a Growing Urology Clinic

Ubiquiti UniFi Medical Clinic Security System Integration by 2M Technology: this case study covers a camera and access control installation in the Dallas-Fort Worth area, featuring UniFi Protect, UniFi Access, cameras, door readers, and integration with UniFi Network.

Ubiquiti UniFi Protect, UniFi Access, and UniFi Network Integration

Project Type: Facility Upgrade | Sector: Healthcare | Integrator: 2M Technology | Location: Dallas-Fort Worth, TX

2M Technology designs and installs advanced video surveillance and access control systems for healthcare facilities, commercial offices, schools, and secure environments. Our team integrates comprehensive camera and access control systems with robust networking infrastructure to deliver seamless security solutions. This case study shows how we deployed an Ubiquiti UniFi medical clinic security system integrated with an existing network in Dallas-Fort Worth, Texas.

Project Snapshot

Specification	Detail
Facility Type	Medical urology clinic
Location	Dallas-Fort Worth, Texas
Video Platform	Ubiquiti UniFi Protect
Access Control Platform	Ubiquiti UniFi Access
Integrated Network Platform	Ubiquiti UniFi Network
Camera Model	Ubiquiti UniFi G5 Dome (indoor)
Door Reader Model	Ubiquiti UniFi G2 Reader
Installation Sites	4 locations across DFW
Delivery	2 to 3-day installation and commissioning phase per site

Why the Ubiquiti UniFi Medical Clinic Security Installation Was Needed

When a prominent urology clinic in the DFW area began expanding across the metroplex, the management team realized their physical security needed to scale alongside their footprint. With four active locations and four more planned for the near future, the clinic required a robust, standardized Ubiquiti UniFi medical clinic security system that could be deployed easily across both their older, established offices and their brand-new builds.

When the client approached us for this installation, they specifically requested the UniFi ecosystem. The clinic was already utilizing UniFi for their networking needs after the owner received a strong recommendation for Ubiquiti. Pleased with the network’s performance, the owner decided to expand the ecosystem to cover their security operations. This made perfect sense for their daily workflow. The clinic staff already had network logins for UniFi, meaning the learning curve would be virtually nonexistent. Additionally, the clinic employed an established IT company to manage their network infrastructure. They just needed a hardware solution that would integrate perfectly with their IT team’s existing setup, creating a fully unified networking and Ubiquiti UniFi medical clinic security system.

Because this is a healthcare setting, the clinic had strict privacy requirements that dictated exactly where security hardware could and could not be placed. Ultimately, the Ubiquiti UniFi medical clinic security solution had to fit into their current workflow while keeping patient data strictly protected.

Why Ubiquiti UniFi?

With an IT company already handling the network infrastructure, UniFi provided exactly what they needed on the backend. The platform was chosen for several key reasons:

• Traffic Management & VLAN Segregation: High-definition video can heavily impact network speeds. UniFi allowed the clinic’s IT team to easily set up a VLAN (Virtual Local Area Network) to segregate the security devices. This guaranteed that the cameras would not take up the essential bandwidth required for patient records and medical imaging.
• Secure Multi-Site VPN: UniFi supports secure VPN connections between different networks. This feature allows authorized management to securely access live camera feeds from any of the current (and future) locations without exposing the video traffic to the public internet.
• Existing Familiarity: Since the clinic staff already had network logins for the UniFi ecosystem, transitioning to the new security interface was easy for the end users.
• A Fully Integrated Solution: UniFi effortlessly bridges networking, video surveillance, and access control under one intuitive interface, making it significantly easier to install and integrate across multiple clinic sites.

Ubiquiti UniFi Medical Clinic Security System Architecture

With the clinic’s IT partners confidently managing the network infrastructure, 2M Technology focused entirely on designing and deploying the physical hardware. When developing this Ubiquiti UniFi medical clinic security system, we carefully tailored the camera and access control layouts to meet the fast-paced, privacy-conscious workflow of a modern healthcare environment.

Ubiquiti UniFi G5 Dome Camera Specification

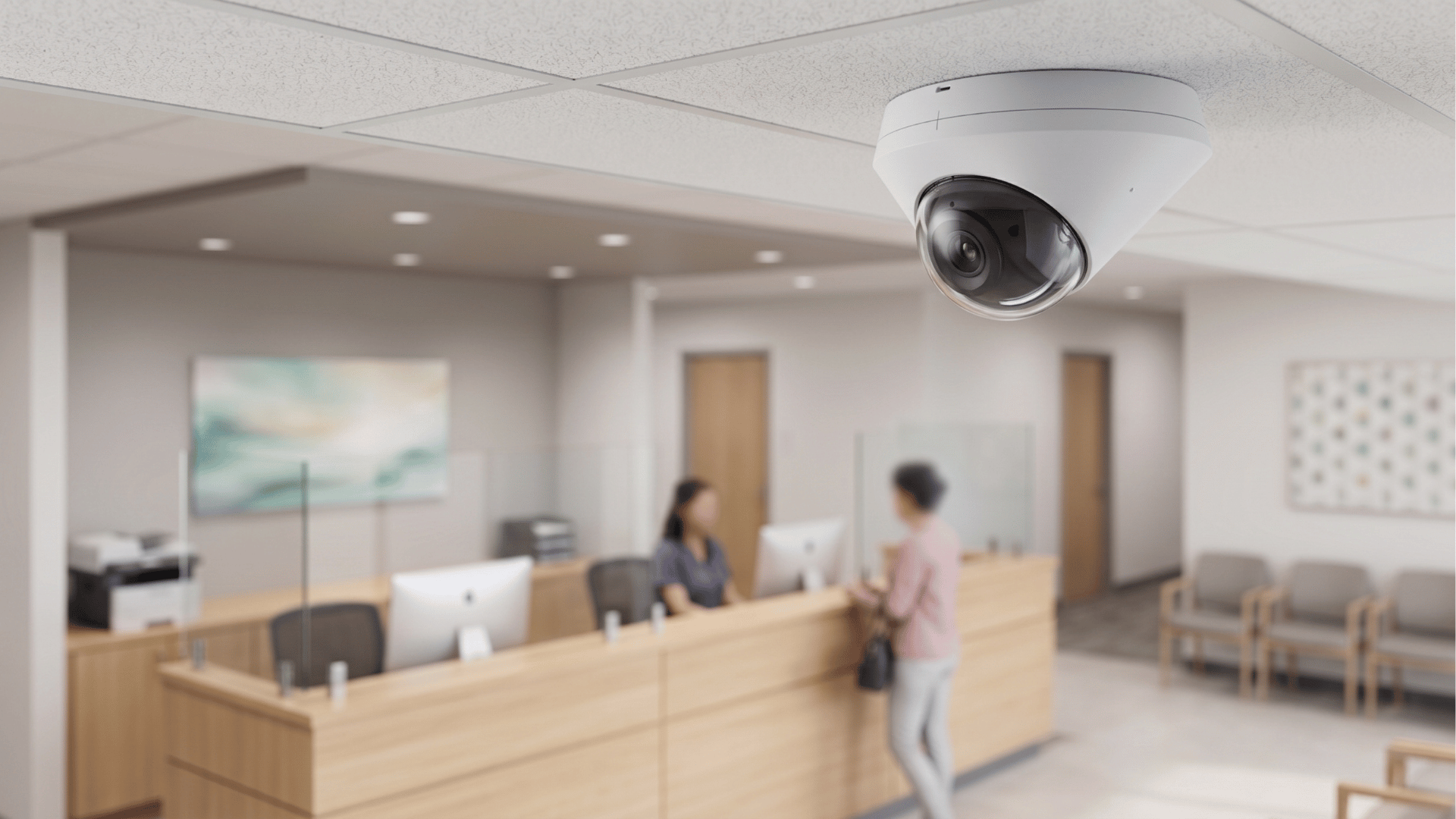

To maintain a welcoming clinical environment, we opted exclusively for UniFi G5 dome cameras. Their low-profile, discreet design blends perfectly into ceilings, providing high-definition coverage without making patients feel like they are being monitored. These cameras offered several advantages:

Strategic Camera Placement

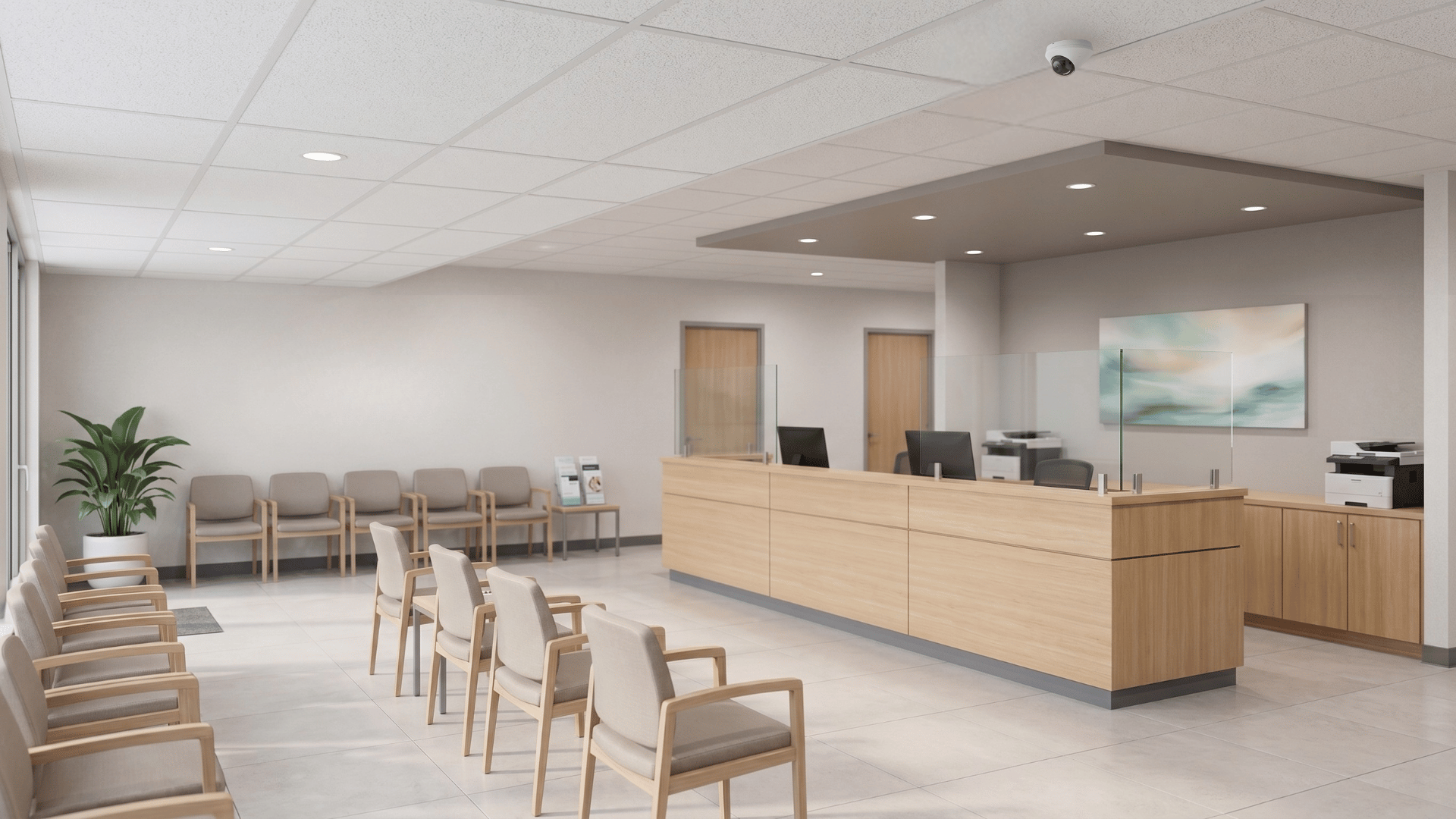

In a medical clinic, where you place cameras is just as important as where you do not. It was a strict requirement that absolutely no cameras were installed inside any patient exam rooms. Instead, we prioritized high-traffic and critical operational areas, heavily focusing on the customer service desks to monitor patient check-ins and staff interactions.

Privacy Adjustments

After reviewing our initial comprehensive floor plan diagram, the clinic requested an essential privacy adjustment. We originally excluded cameras from the phlebotomy (blood draw) rooms out of concern for patient privacy. However, the clinic clarified that monitoring is actually necessary in these specific areas for liability and staff safety. We quickly updated the architecture to ensure these rooms had complete, unobstructed camera coverage before deploying the final Ubiquiti UniFi medical clinic security system.

Ubiquiti UniFi Protect Integration

The UniFi Protect application serves as the central command layer for all video recording, smart detections, and user management. Integration points for this project included:

• Centralized Recording: A UniFi Network Video Recorder (UNVR) deployed in the main IT closet handles all continuous recording for the cameras, providing redundant local storage. Keeping video data stored entirely on-site is a critical requirement for healthcare facilities, as it ensures patient privacy is maintained and sensitive footage is never exposed to or hosted on third-party cloud servers.
• Smart AI Detections: The cameras utilize onboard AI to detect motion and identify people. This enables the system to log specific events, making it incredibly easy for management to locate footage of patient incidents or intrusions.
• Unified Management: The entire ecosystem, including the UniFi Protect cameras, UniFi Access door readers, and UniFi Network equipment, is managed from a single, highly intuitive interface.
• Remote Access: Clinic administrators can view live feeds, review playback, and configure camera settings directly from their smartphones using the secure UniFi mobile app.

Modern Access Control

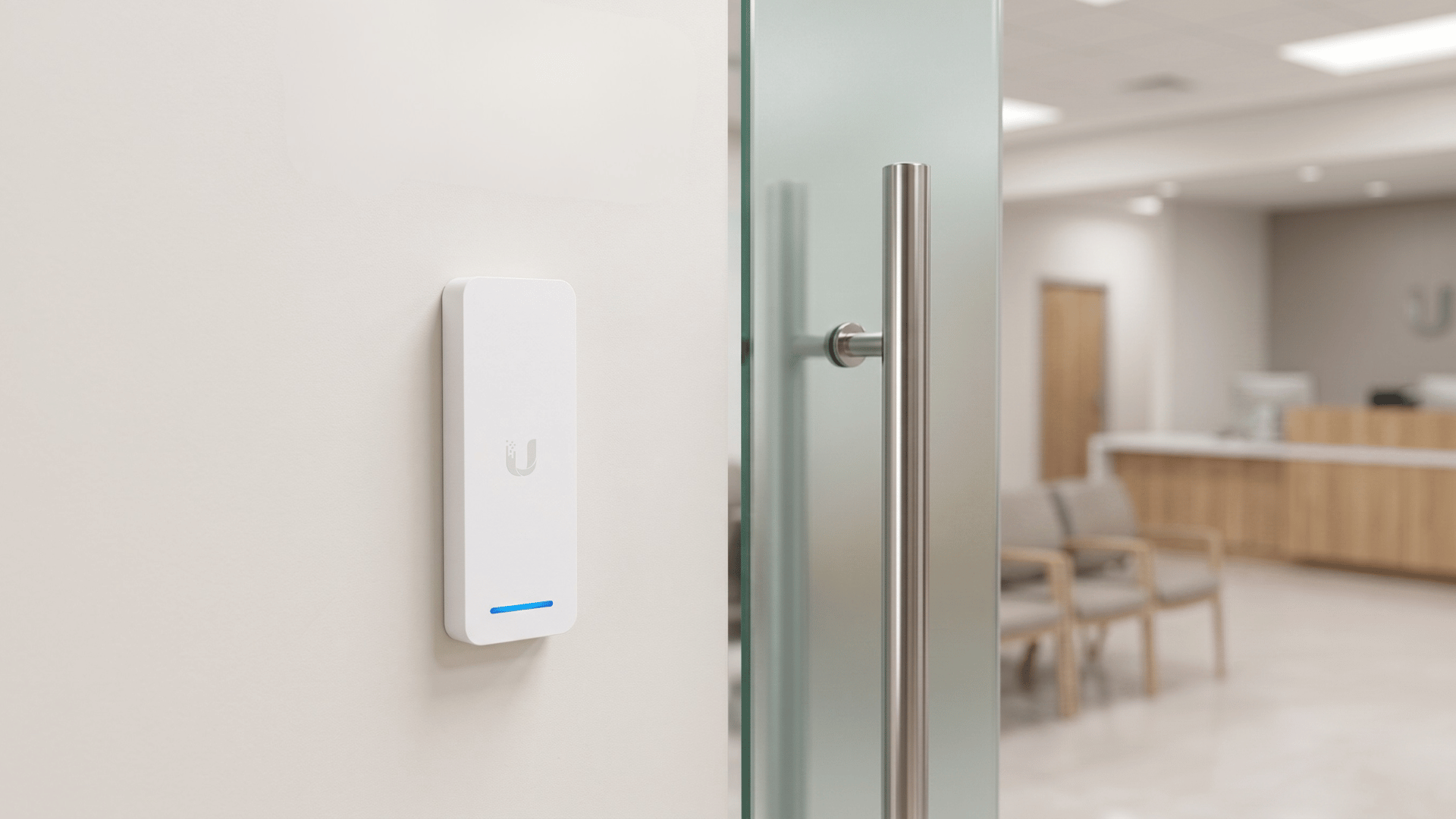

To secure the facilities, we deployed UniFi Access Control at key entryways and restricted zones. By utilizing keyfob entry, staff can now move fluidly through the clinic without fumbling for keys. At the same time, this ensures that unauthorized individuals cannot access highly sensitive areas like administrative offices and medication storage rooms. Furthermore, management retains complete control over area permissions. They can easily track access logs and instantly revoke entry credentials for former employees.

Security Applications

Because UniFi integrates so seamlessly with existing networking, the clinic’s IT company was able to utilize the platform’s backend applications to further optimize the system:

• VLAN Segregation: High-definition cameras generate a lot of traffic. The IT team configured a VLAN to keep the security devices entirely separated from the clinic’s medical network. This ensures camera feeds never consume the bandwidth required for medical imaging and patient records.
• Multi-Site VPN: UniFi’s secure VPN capabilities allowed the clinic to connect their different networks securely. Management can now easily view cameras from any of the separate locations without exposing the video traffic to the public internet.

Ubiquiti UniFi Medical Clinic Security System Installation

The 2M Technology team worked closely alongside the clinic’s established IT partners. While the IT company handled the network architecture, our technicians focused entirely on the physical installation of the cameras and access control hardware.

Because UniFi is a fully integrated solution, installing and connecting the hardware to the access control and network systems was a smooth process. The physical deployment at both the older locations and the new builds averaged just 2 to 3 days per site, minimizing any disruption to the clinic’s daily operations.

The installation of the Ubiquiti UniFi medical clinic security system included:

• Dome Camera Calibration: Adjusting viewing angles for optimized coverage and privacy.
• Access Control Configuration: Setting up restricted areas with keyfob readers.
• Mobile Access Setup: Helped management and administrators access the UniFi Protect and Access applications through secure VPNs.
• Network segmentation: The clinic’s IT team set up a VLAN to isolate traffic generated by the new security devices from the main medical network, preventing slowdowns and optimizing bandwidth for critical patient care.

The Results

By expanding on the urology clinic’s current UniFi ecosystem, 2M Technology delivered a highly scalable physical security setup that worked perfectly alongside their established IT infrastructure. Management enjoys ease of access between multiple locations, staff can navigate the buildings securely with keyfobs, and the IT team has full control over the network bandwidth.

Today, the clinic enjoys a state-of-the-art Ubiquiti UniFi medical clinic security system that is easy to manage, highly secure, and ready to scale. As they prepare to open their next four locations, they now have a proven, repeatable security blueprint. This ensures that no matter how much the practice expands, their Ubiquiti UniFi medical clinic security infrastructure will grow right alongside them.
