Case Study: Custom 10-ft Container Turnstile Checkpoint

Custom container turnstile checkpoint fabrication by 2M Technology: this case study covers a portable job site access control deployment for a Louisiana energy site: 10-ft custom steel container, single bidirectional full-height turnstile, and universal badging system integration.

2MFHT-3C Full Height Container Access Control Turnstile Set

Project Type: Custom Fabrication | Sector: Energy | Integrator: 2M Technology | Location: Louisiana

2M Technology designs and manufactures modular container checkpoints and portable access control solutions for energy job sites, industrial yards, and remote commercial facilities. We combine heavy-gauge container shells with high-speed turnstiles and flexible credential platforms to provide turnkey, relocatable security checkpoints ready for immediate site deployment. This case study details how we designed, fabricated, wired, and delivered a custom 10-ft container turnstile checkpoint with a bidirectional full-height gate for an energy company in Louisiana.

Project Snapshot

Security Challenges at Remote Energy and Utility Sites

Energy facilities and industrial utility sites require uncompromising perimeter security. As noted by the Cybersecurity and Infrastructure Security Agency (CISA), nearly every critical infrastructure sector relies on electric power and fuel. A physical breach or service disruption at an energy asset does not stay isolated; it directly threatens vital systems like transportation, public water, communications, and emergency services.

Because operational plants, pipeline terminals, and remote substations cycle through numerous trade crews and technicians every shift, entry points present an ongoing security risk. Relying on makeshift chain-link fences, paper sign-in logs, and stationed guards creates severe bottlenecks at shift changes, exposes compliance vulnerabilities, and drives up operating costs. Standard physical security setups consistently fall short against the unique logistical and environmental demands of dynamic, remote energy facilities:

• Fixed Infrastructure Requirements: Pouring concrete foundations, trenching extensive conduit, and constructing permanent guardhouses require significant capital expenditure and are inefficient for temporary projects or evolving facilities.
• Recurring Guard Labor: Staffing entry gates around the clock to manually check badges and log visitors drains operational budgets.
• Regulatory Compliance and Safety Audits: Energy sector operators must maintain accurate, verifiable digital timestamps of all personnel on-site to satisfy regulatory standards, risk management guidelines, and emergency headcounts.
• Relocation Difficulties: As field operations conclude or shift to adjacent regional assets, permanent installations cannot easily be moved, often resulting in sunk costs.

Customizing the Right Checkpoint Solution

When the energy client approached 2M Technology, they knew they needed an automated employee badging portal they could move between regional assets as facility requirements shifted. During the initial design consultation, our engineering team evaluated three core job site metrics:

1. Daily Traffic Volume: The facility averaged fewer than 100 entries and exits per day, meaning multiple lanes would simply take up unnecessary space. A single turnstile lane easily satisfied peak morning and afternoon throughput.
2. Bidirectional Passage: Instead of building separate inbound and outbound corridors, the client preferred a dual-direction rotor to save space. This would allow workers to check in during the morning and clock out in the evening through the same turnstile.
3. Targeted Functionality: The unit was intended strictly for automated credentialing, eliminating the need for a dedicated guard booth, supervisor office, or climate control package.

Adding unneeded interior volume would only increase structural dead weight and hike up shipping costs. To achieve maximum efficiency, 2M Technology recommended our compact 10-ft container turnstile checkpoint. This design cut out excess square footage, kept flatbed freight costs low, and accelerated production without sacrificing physical perimeter control.

10-ft Container Turnstile Checkpoint System Architecture

Every component of this custom 10-ft container turnstile checkpoint was chosen to balance structural longevity, field adaptability, and ease of maintenance in industrial environments.

       [ Exterior Perimeter / Public Side ]
                        │
                        ▼
     ┌──────────────────────────────────────┐
     │   Heavy-Duty Roll-Up Security Door   │
     │   Overhead Exterior LED Lighting     │
     └──────────────────┬───────────────────┘
                        │
                        ▼
     ┌──────────────────────────────────────┐
     │    Universal Access Control Bracket  │
     │    (Customer-Specified Card Reader)  │
     └──────────────────┬───────────────────┘
                        │
                        ▼
     ┌──────────────────────────────────────┐
     │   Full-Height Stainless Steel Rotor  │
     │      (Bidirectional Access Lane)     │
     │     - Mechanical Fail-Safe Release   │
     │     - Anti-Tailgating Interlocks     │
     └──────────────────┬───────────────────┘
                        │
                        ▼
     ┌──────────────────────────────────────┐
     │   Heavy-Duty Roll-Up Security Door   │
     │   Overhead Exterior LED Lighting     │
     └──────────────────┬───────────────────┘
                        │
                        ▼
         [ Secure Job Site Interior ]

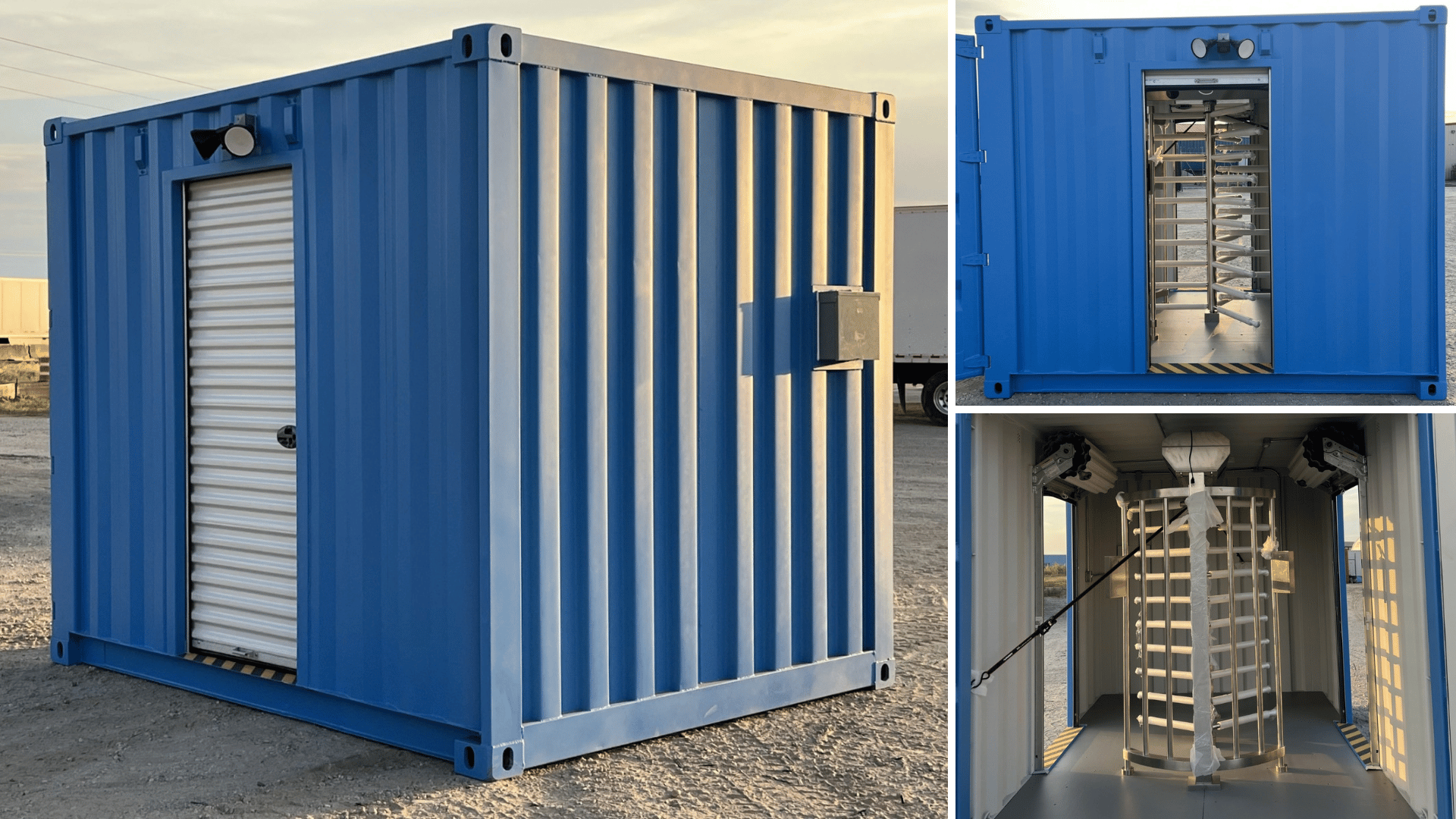

10-ft Shipping Container

• Platform: Engineered on our rugged CSC certified 2MFHT-3C series structural chassis.
• Heavy-Gauge Steel Shell: Built from high-tensile industrial steel, delivering impact resistance, weather sealing, and structural rigidity for repeated crane rigging and flatbed transport.
• Finish & Color: Finished in high-durability industrial blue exterior paint formulated to resist UV degradation, humidity, and corrosive marine air.

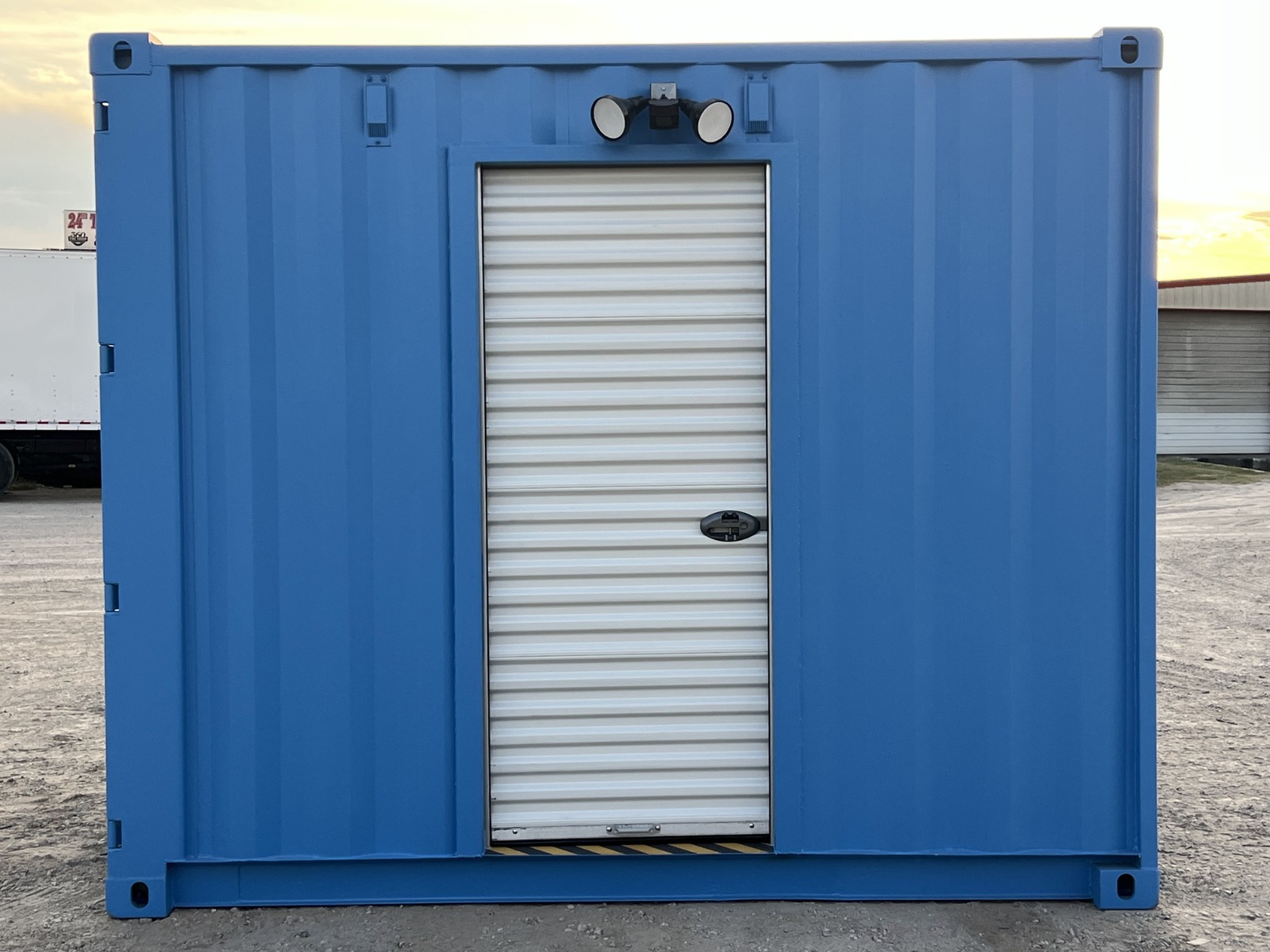

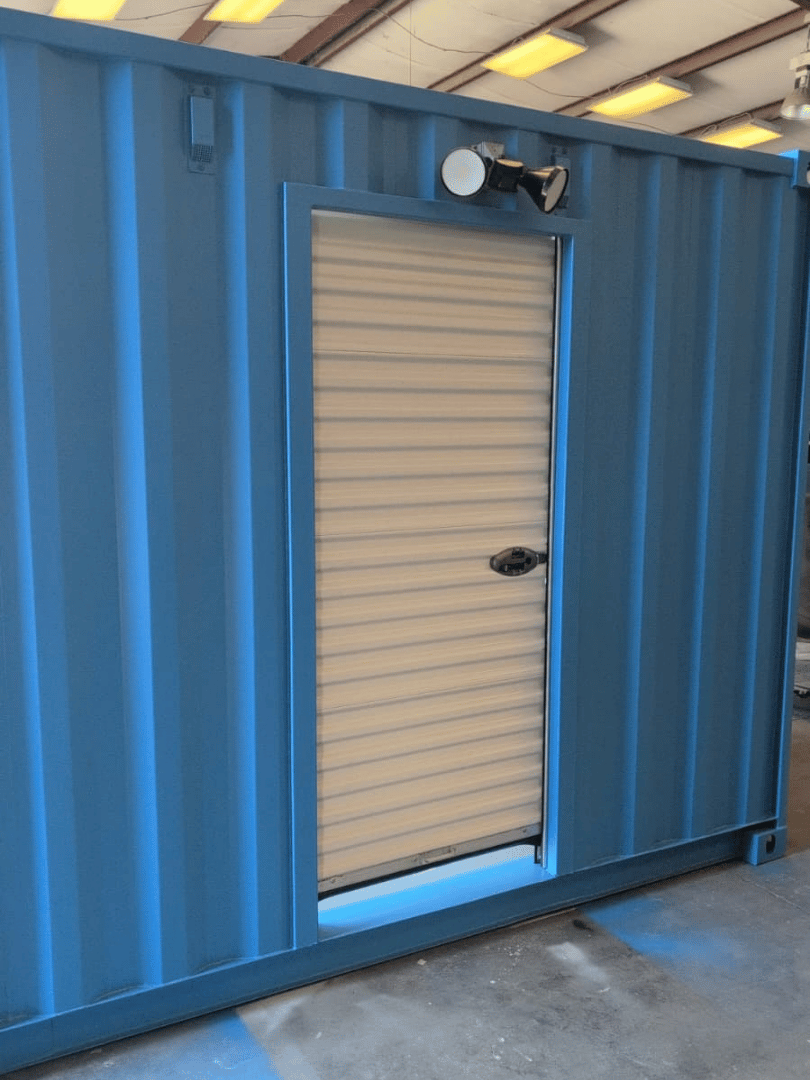

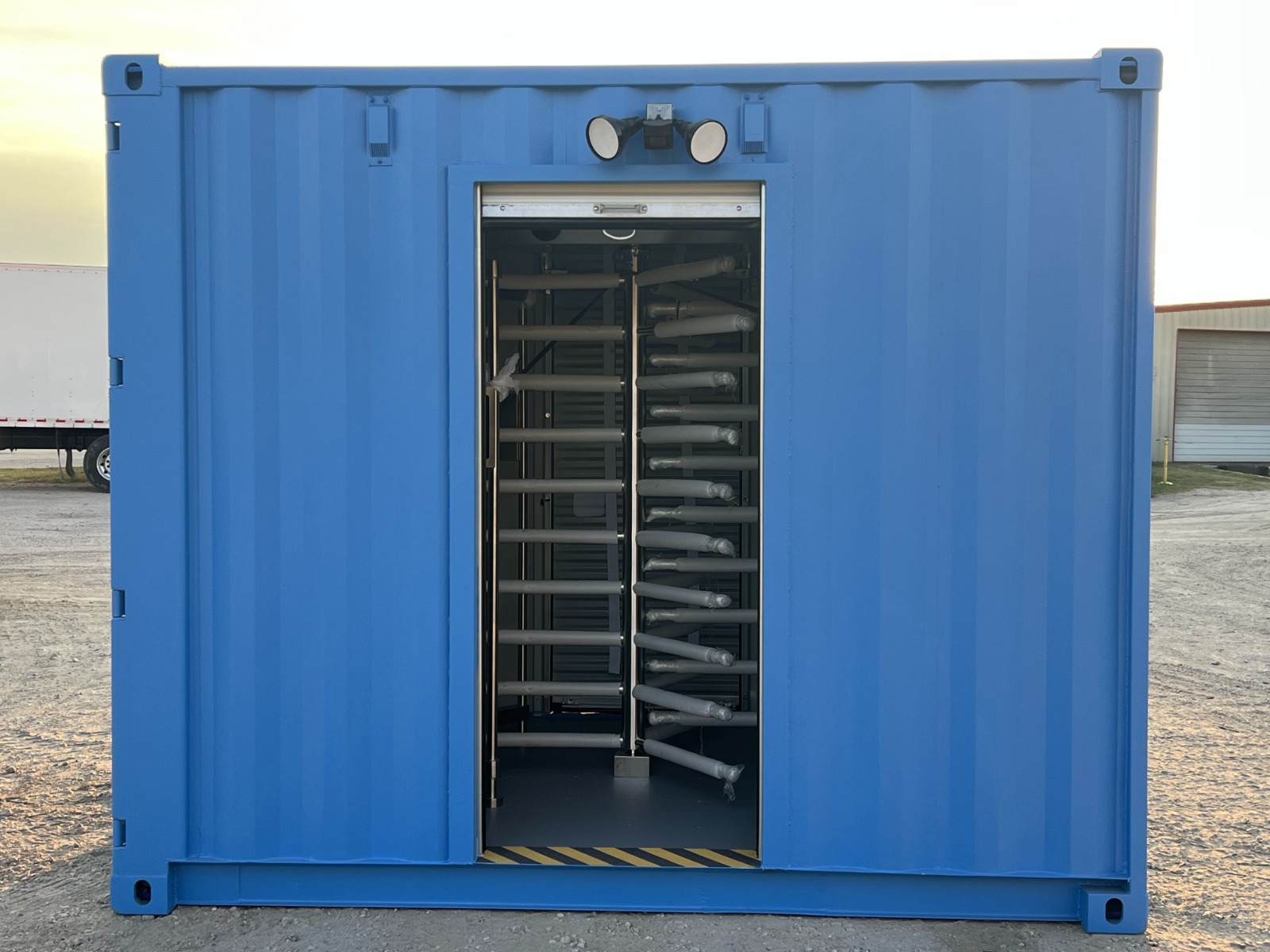

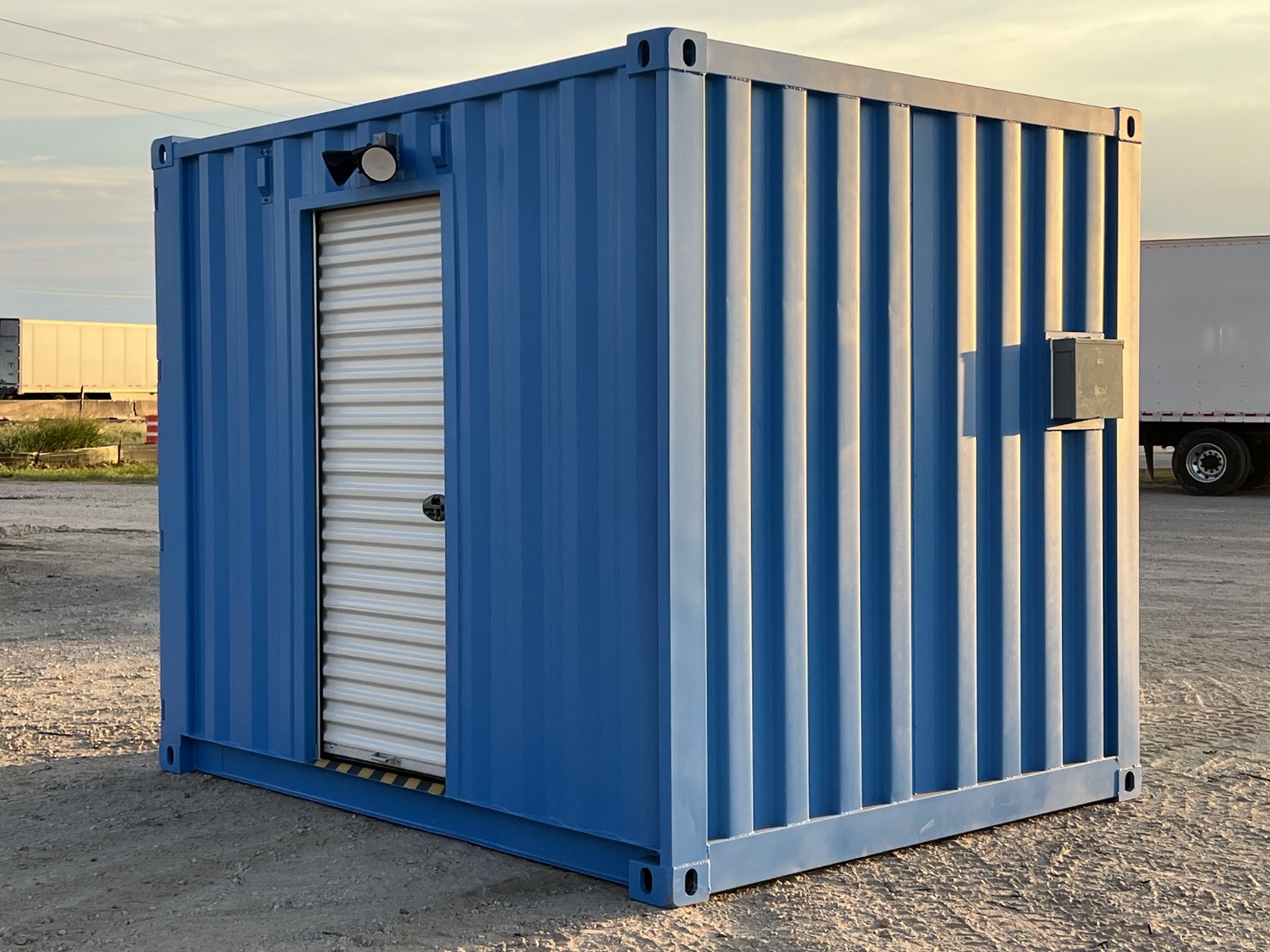

• Dual Security Roll-Up Doors: Outfitted with heavy-duty exterior roll-up shutter doors at both portals. This allows operators to lock down the entire structure during non-operational hours, severe weather, or scheduled site shutdowns.
• Integrated Lighting Package: Durable exterior LED fixtures mounted directly above each roll-up entrance ensure safe foot traffic, clear camera coverage, and visible credential presentation during early morning or nighttime shift transitions.
• Lean, Guardless Layout: By eliminating interior partitions and climate control infrastructure, the entire structural volume remains dedicated to clear transit lanes and electrical routing.

Single-Lane Full-Height Turnstile Gate

• Construction: Single full-height mechanical barrier fabricated from corrosion-resistant 304 stainless steel, built for demanding outdoor duty cycles and backed by ISO 9001 quality standards.
• Bidirectional Rotor Mechanism: Integrated electromechanical locking heads support two-way authorized passage. The rotor locks securely against reverse travel and counter-rotation, preventing tailgating and unauthorized walk-ins.
• Emergency Life-Safety Integration: The turnstile incorporates an automated power-loss release mechanism. Upon an emergency alarm trigger or power interruption, the rotor freely unlocks and rotates bidirectionally to ensure unrestricted site egress, supporting regulatory life-safety and OSHA emergency evacuation requirements.

Non-Proprietary Access Control Infrastructure

• Universal Badging Reader Architecture: Proprietary access lock-ins can limit flexibility if a plant switches badging platforms. We installed universal surface-mount housings and interface relays compatible with standard Wiegand, OSDP, and IP-based credential readers.
• Clean Pre-Cabling & Conduit Run: All internal signal wiring, dry-contact trigger leads, and power distribution channels were run through surface-mounted rigid metal conduit. This protects internal communication lines from vibration and environmental wear while allowing on-site technicians to swap reader hardware within minutes.

Installation and Commissioning

From approved engineering drawings to final system testing, 2M Technology completed fabrication of the 10-ft container turnstile checkpoint in less than three weeks at our facility:

• Week 1: Structural Fabrication & Container Modifications
• Week 2: Turnstile Rigging, Electrical Conduit & Reader Brackets
• Week 3: Quality Control Testing, Site Delivery & Power Hookup

Fabrication Process, From Start to Finish

1. Precision Modification

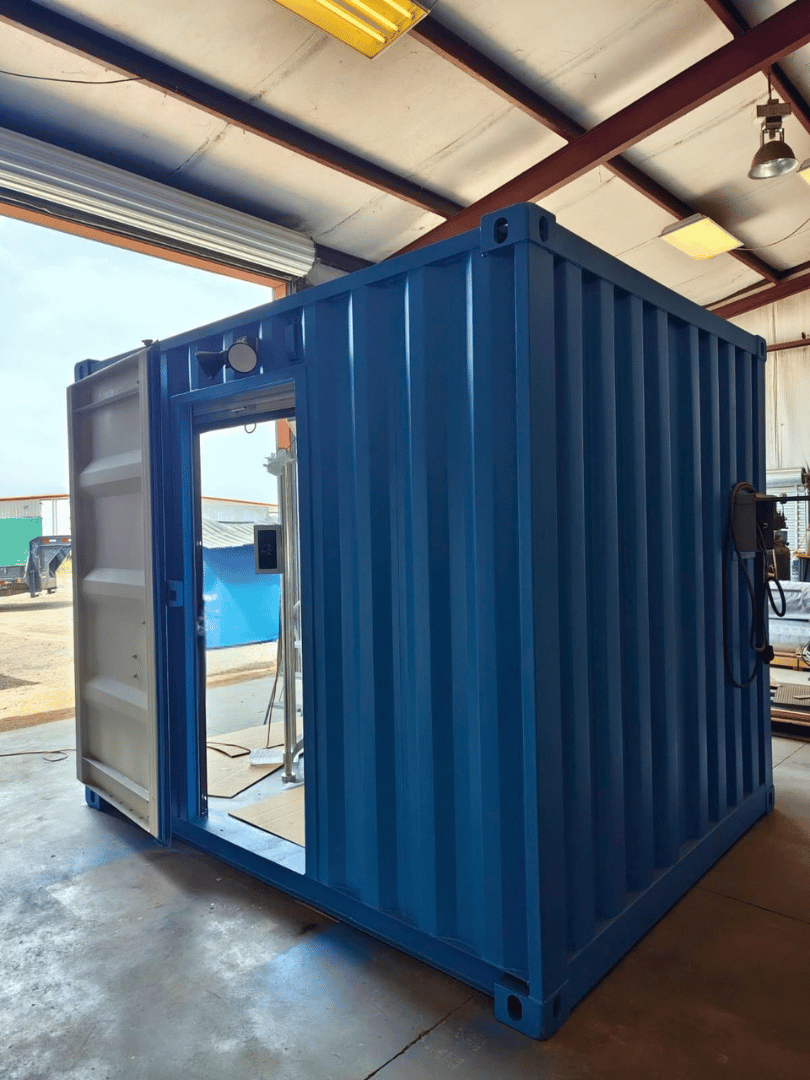

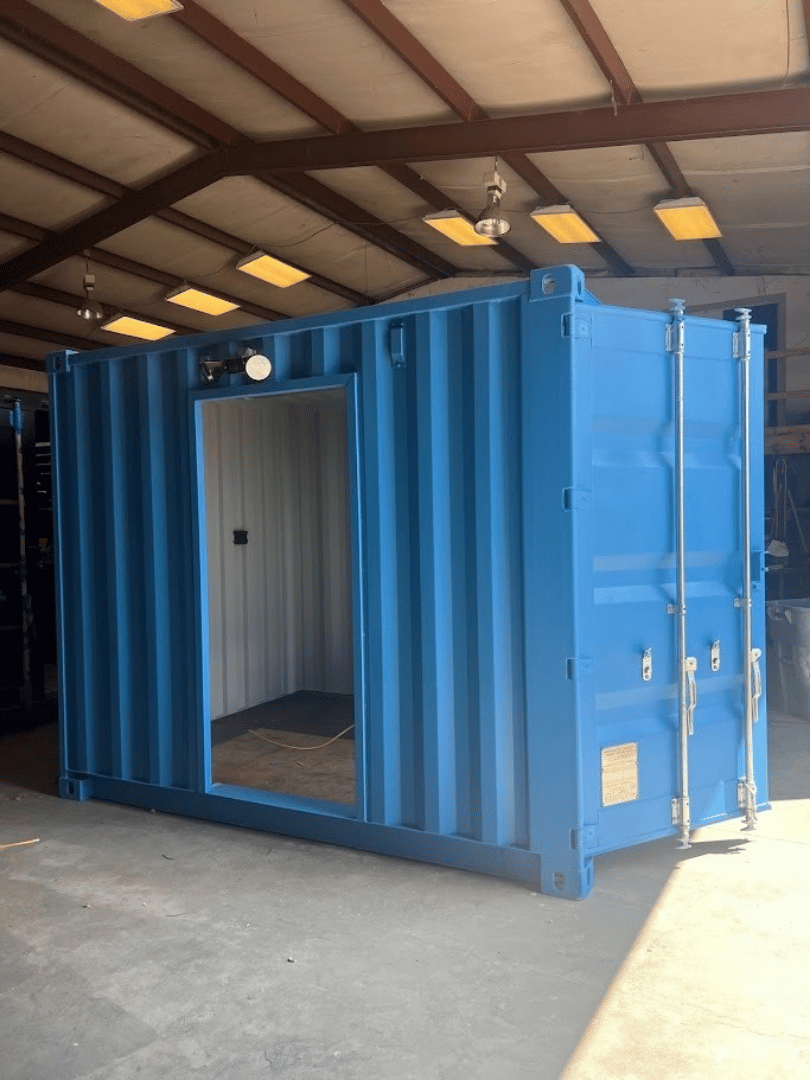

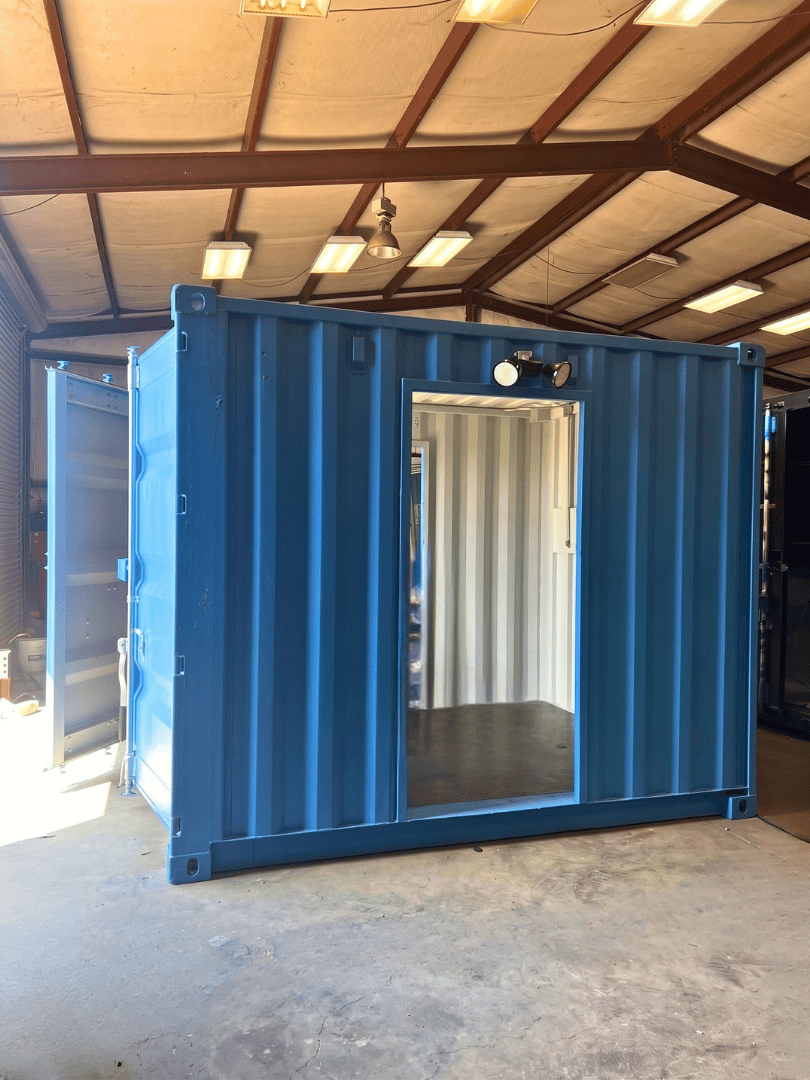

The 10-foot container shell underwent structural cutouts, structural reinforcement framing, anti-corrosive priming, and protective blue finish coating.

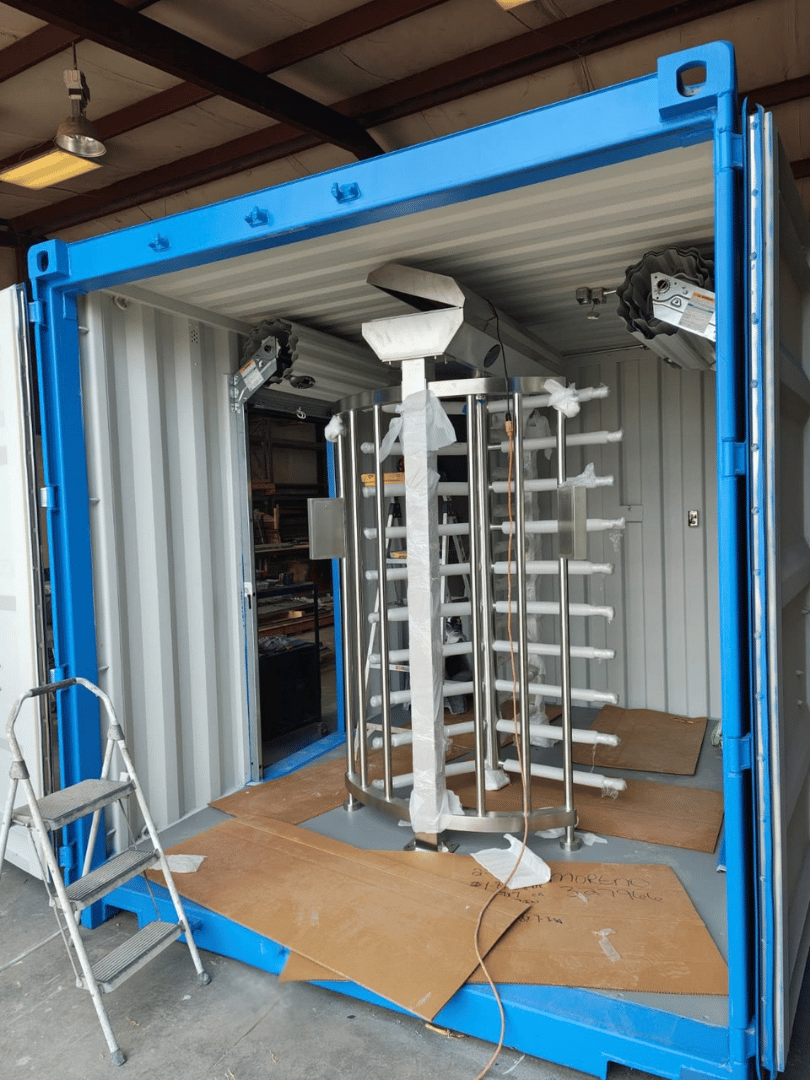

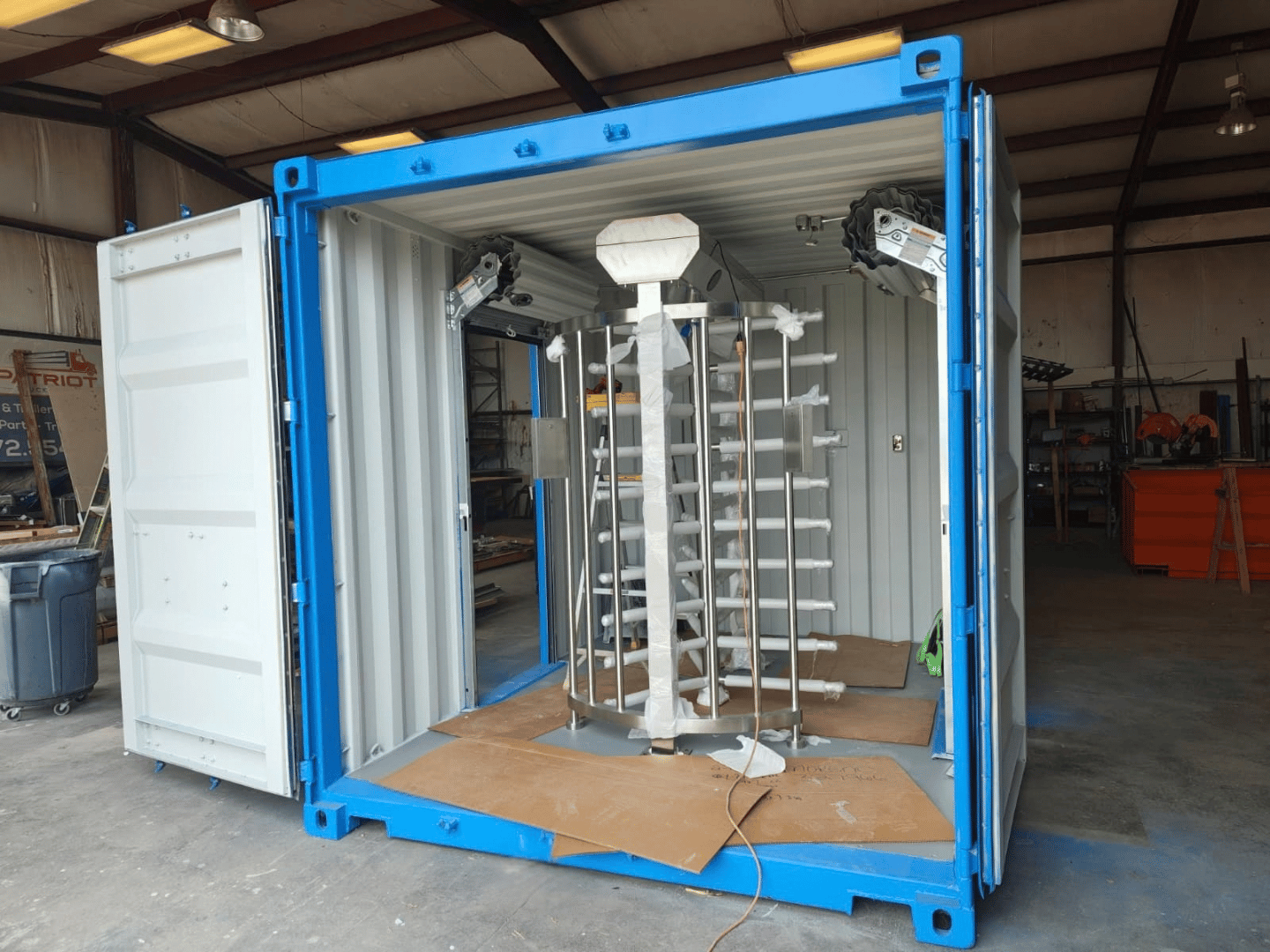

2. Shop Assembly & Alignment

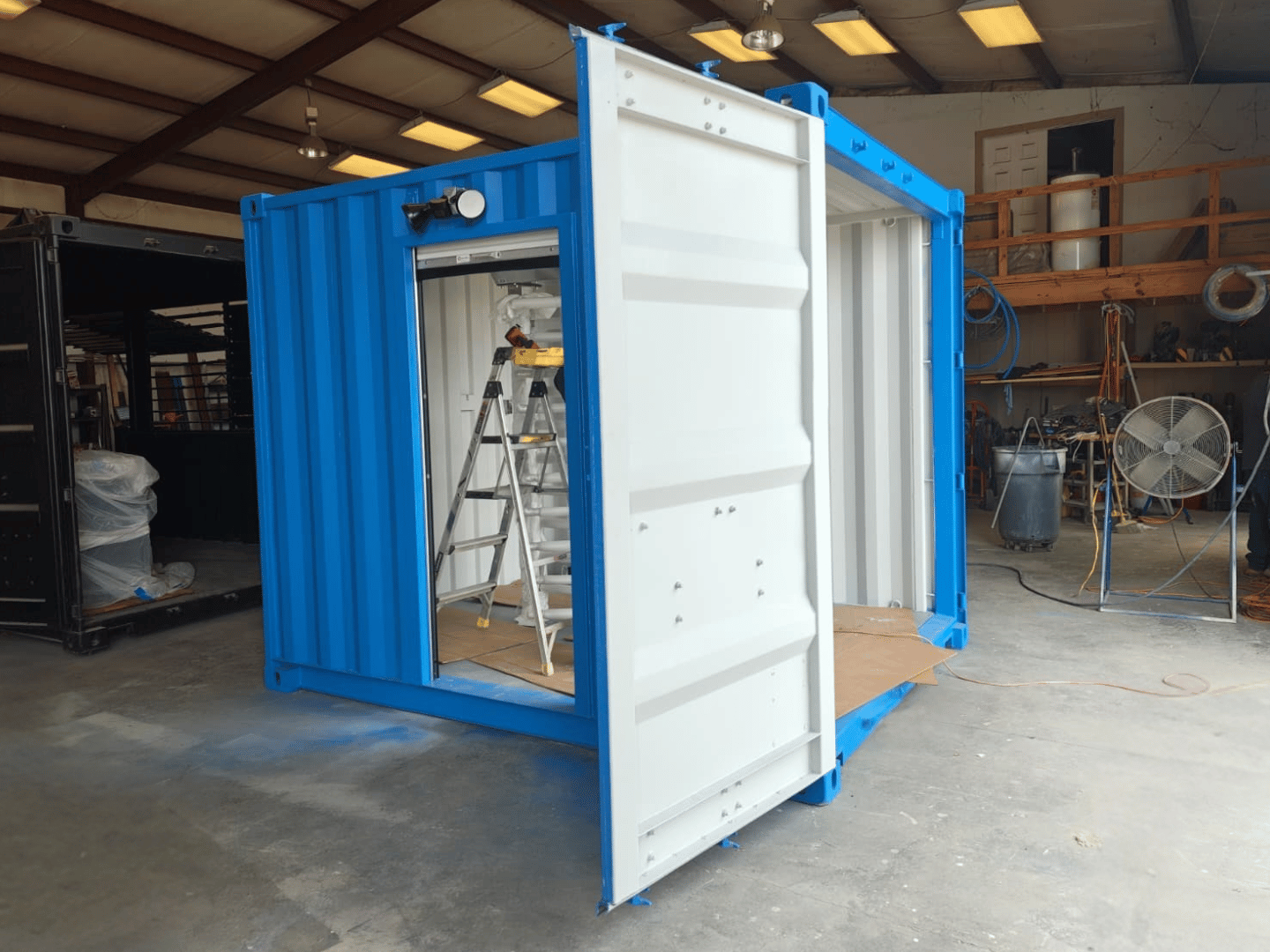

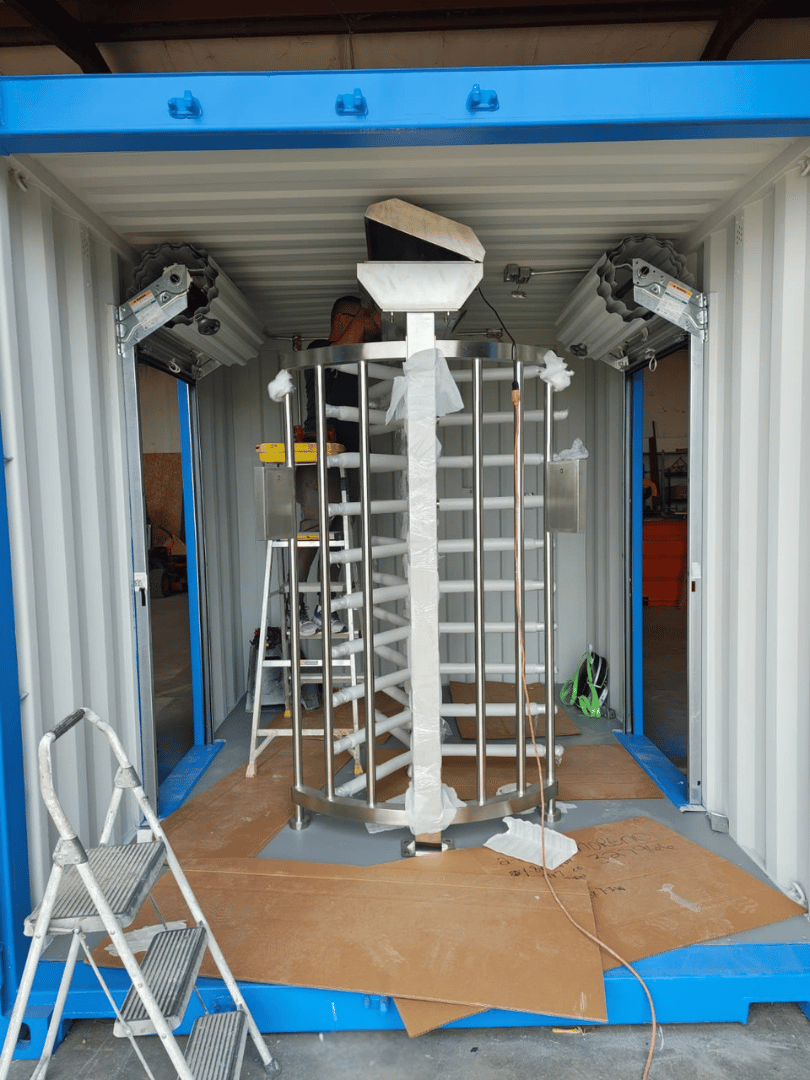

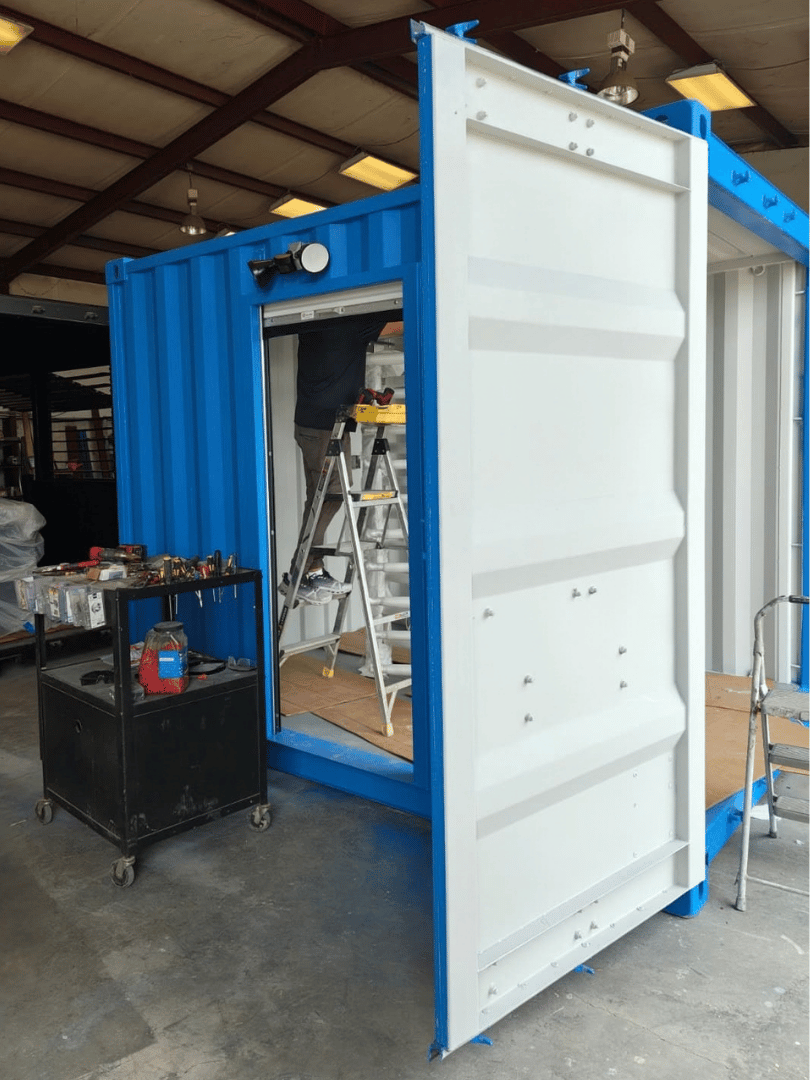

The 304 stainless steel turnstile was bolted down to reinforced internal flooring plates, followed by the installation of the roll-up shutter doors, exterior overhead lighting, and conduit raceways.

3. Factory Acceptance Testing

The electromechanical rotor turnstile assembly underwent complete cycle testing, verifying bidirectional badge triggers, lock engagement speed, and emergency fail-safe release status.

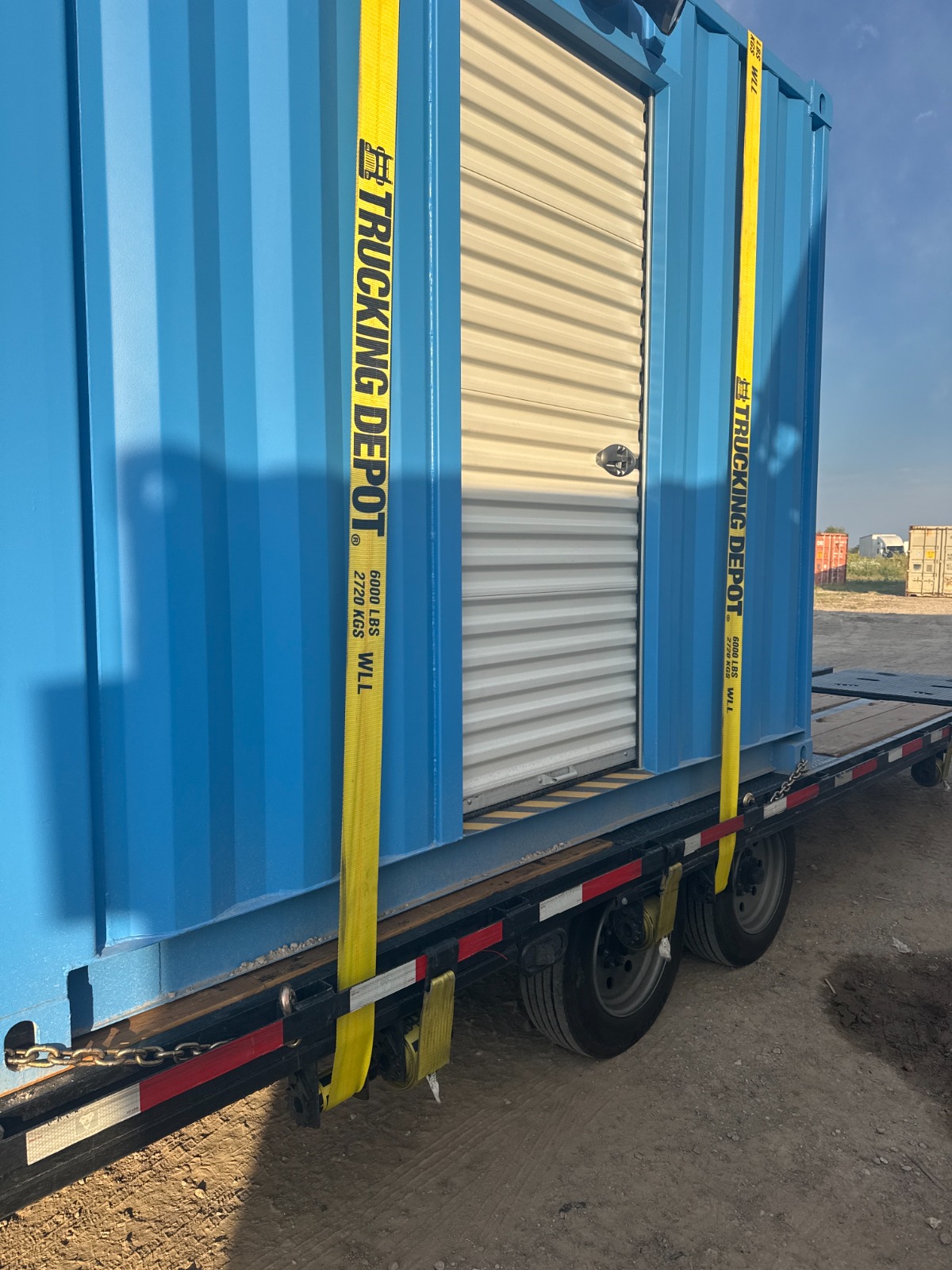

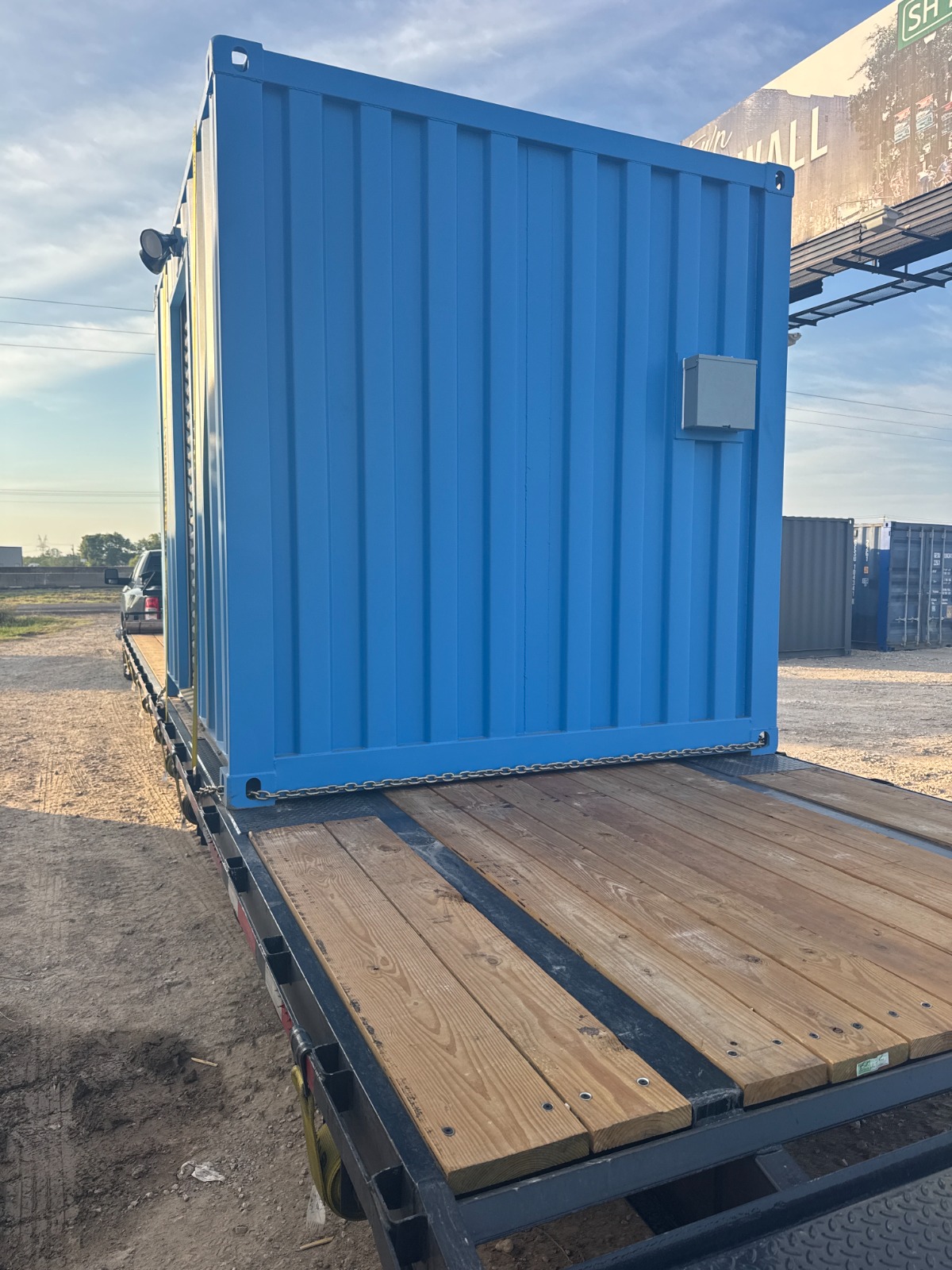

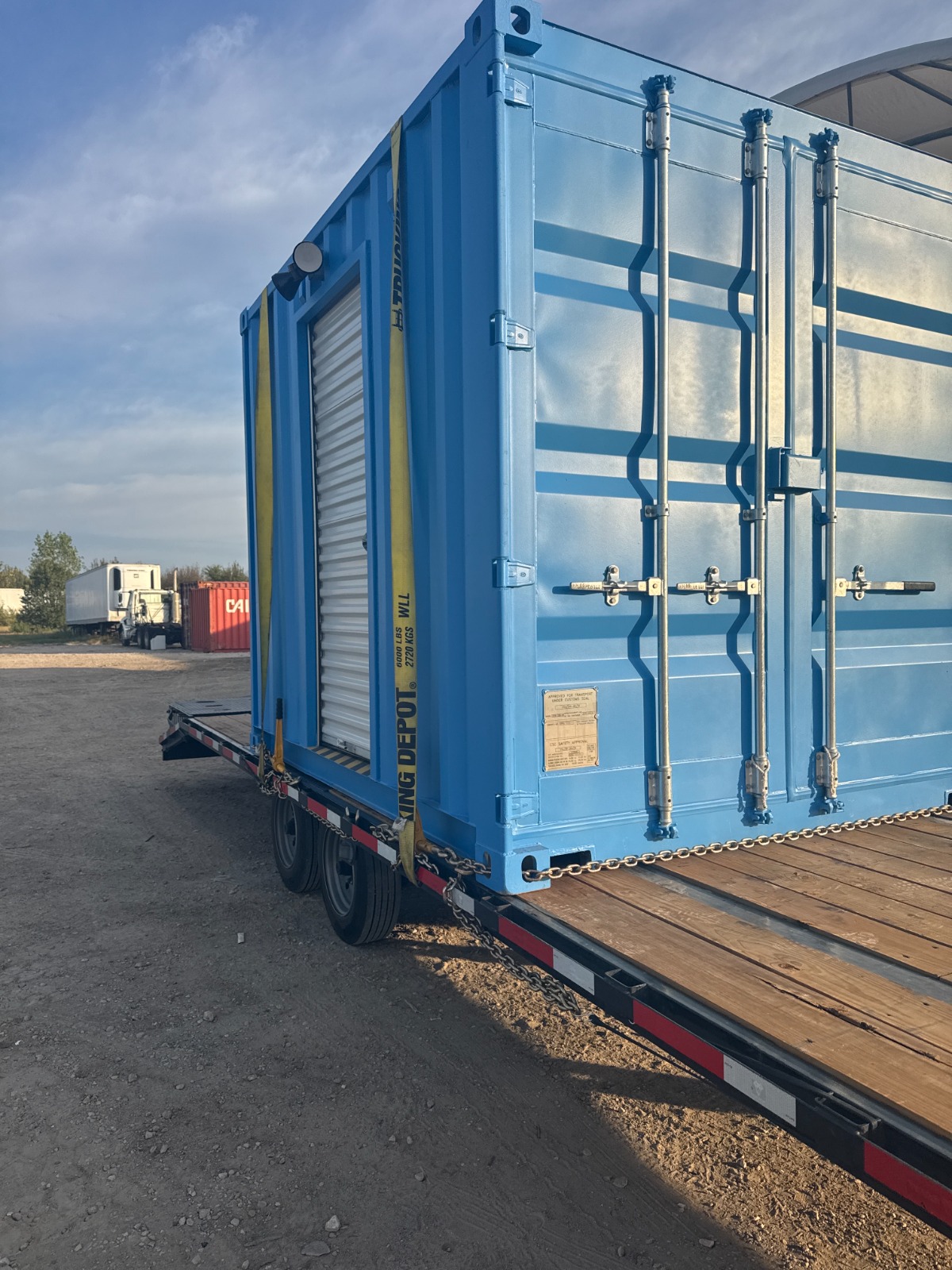

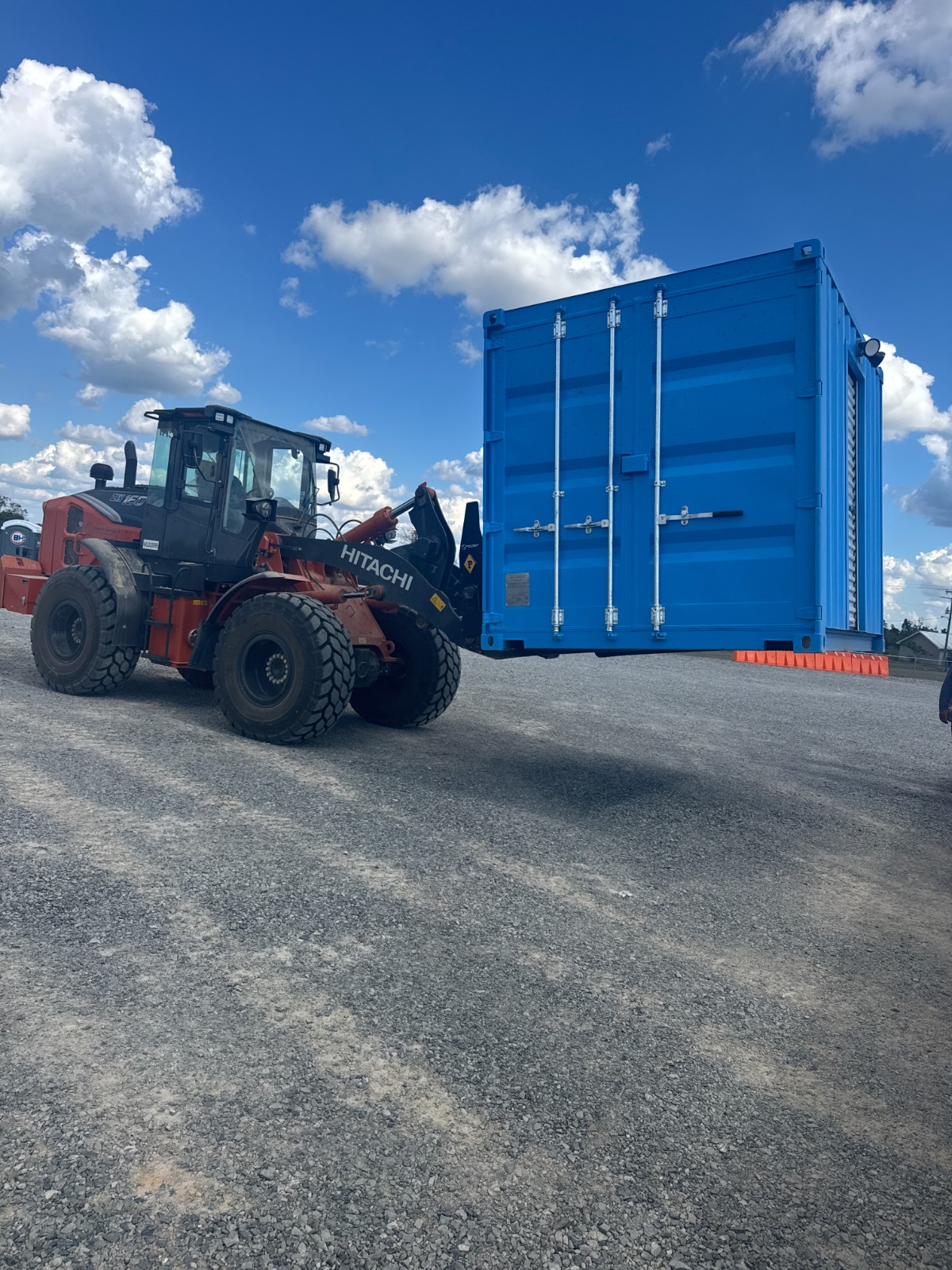

4. Transport & Site Arrival

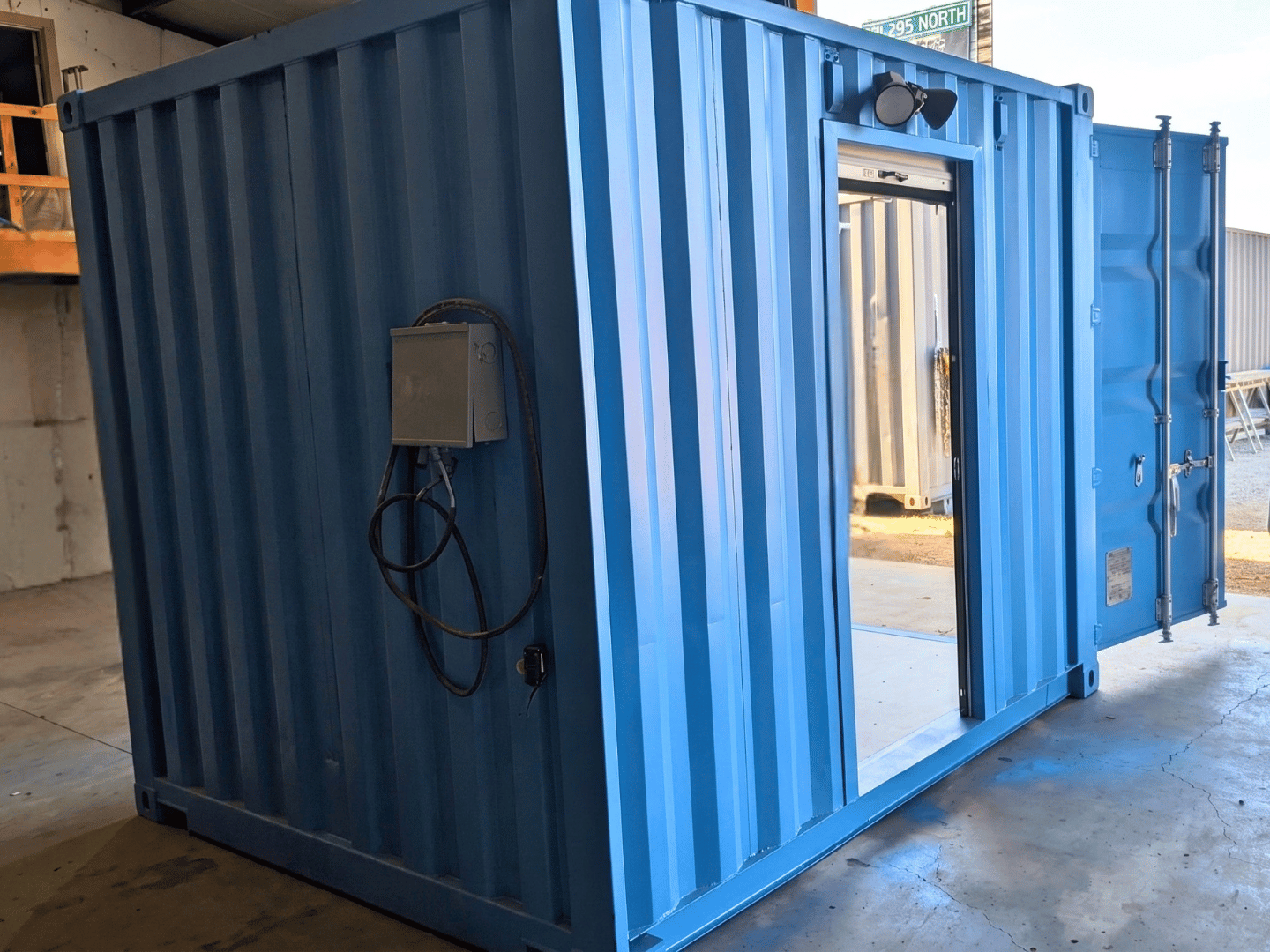

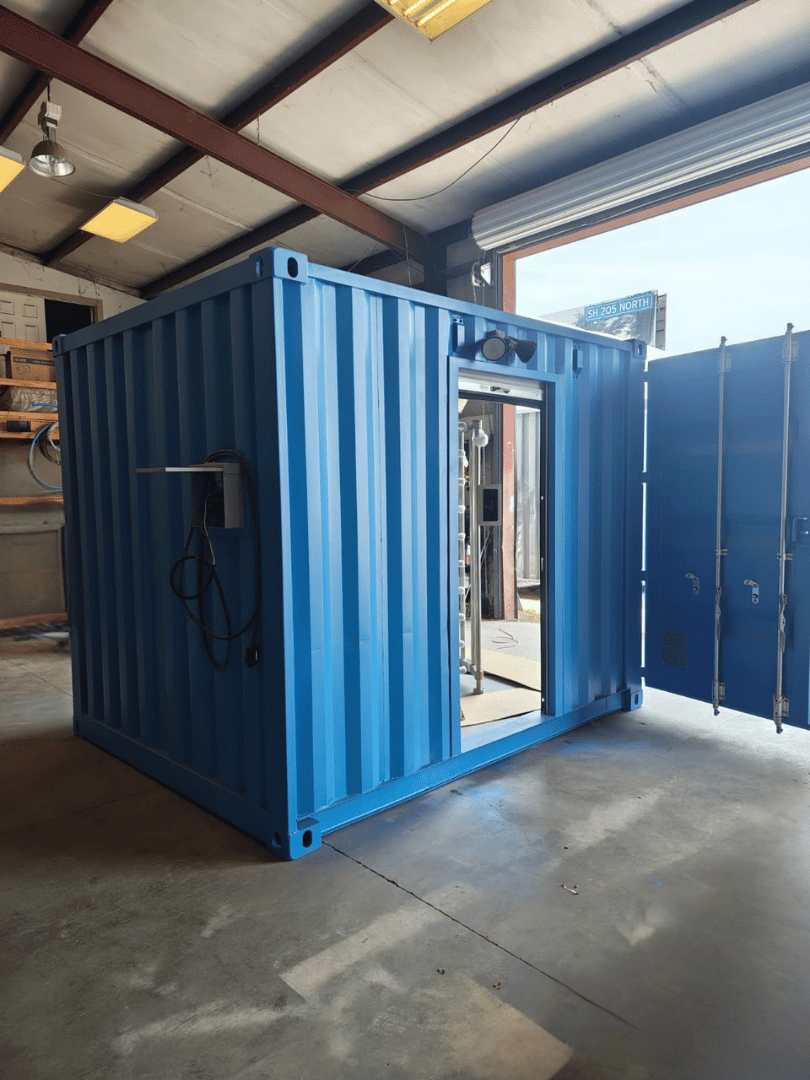

The 10-ft container turnstile checkpoint was transported via standard flatbed freight directly to the Louisiana facility. Field commissioning required no foundation work. On-site crew positioned the container on a leveled grade, secured external power to the integrated breaker panel, and connected their regional card readers to the pre-wired terminal blocks.

Industries We Provide Custom 10-ft Container Turnstile Checkpoints For

While this custom 10-ft container turnstile checkpoint addressed perimeter access requirements for an energy facility in Louisiana, identical configurations secure boundaries across diverse industrial environments:

• Oil, Gas & Petrochemical Refineries: Manages shift turnovers, contractor access, and turnaround influxes at refineries, pipeline terminals, and processing plants.
• Renewable Energy & Utility Sites: Establishes standalone, perimeter-integrated credential checkpoints for remote solar installations, wind farms, and electrical substations.
• Commercial & Industrial Construction: Secures high-liability laydown yards, tracking subcontractor crews, and keeping unauthorized individuals off active project sites.
• Logistics & Intermodal Yards: Enforces driver and dockworker credentialing across busy freight transfer points without impeding truck lanes.
• Disaster Recovery & Critical Staging Yards: Provides rapidly deployable entry portals for temporary utility command centers, emergency staging bases, and field operations.
