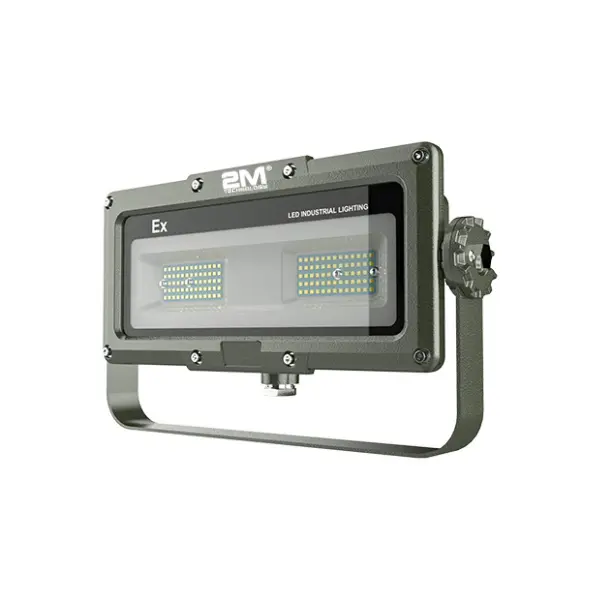

2M-EX8199-80 Explosion-Proof Flood Light (80W)

SKU: 2M-EX8199-80
  • Features:
    • Input voltage: AC100-270v
    • Led Light Source: Cree
    • Power Factor: 0.95
    • Color Rendering Index (CRI:Ra>): 75
    • IP Rating: IP66
    • Lumen flux: 120lm/w
    • Anti corrosion: WF2
    • Beam angle: 106.5°
    • Explosion-proof Grade: ExdIICT6
    • Also available in power option: 100W

Features

  • Constructed with an aluminum alloy die-cast case, the surface is finished with a high-pressure electrostatic coating. The exposed fasteners are made with a high-corrosion-resistant stainless steel material. The lamp is designed using the highest anti-corrosion performance features.
  • Ultra durable transparent cover with high light transmission, impact resistant, unique anti-glare design, optical reflector cup, and high reflection efficiency.
  • The explosion-proof structure is designed to meet with the national explosion-proof standard GB3836 to assure the reliability of this product in explosion-proof performance, durability, constant current power supply, low power consumption, constant power output meter, high temperature and aging resistant silica gel sealing ring, and high protection grade.
  • An international well known brand light source chip, unidirectional luminescence, no side light, high light utilization rate, high light efficiency, high display finger, with open circuit, short circuit, overheat protection function, ensure the reliable and continuous operation of light source, wide voltage input, constant light flux output, instantaneous start-up.
  • Unique heat dissipation structure design, excellent and reliable heat dissipation performance, ensure the long life and reliable use of lamps.
  • Cable wiring, fast and convenient.
MODELS AVAILABLE
Model Wattage
2M-EX8199-80 80W
2M-EX8199-100 100W

Specifications

Country of Origin

China

Power

80W

Ingress Protection

IP66

Product Documents

  • Constructed with an aluminum alloy die-cast case, the surface is finished with a high-pressure electrostatic coating. The exposed fasteners are made with a high-corrosion-resistant stainless steel material. The lamp is designed using the highest anti-corrosion performance features.
  • Ultra durable transparent cover with high light transmission, impact resistant, unique anti-glare design, optical reflector cup, and high reflection efficiency.
  • The explosion-proof structure is designed to meet with the national explosion-proof standard GB3836 to assure the reliability of this product in explosion-proof performance, durability, constant current power supply, low power consumption, constant power output meter, high temperature and aging resistant silica gel sealing ring, and high protection grade.
  • An international well known brand light source chip, unidirectional luminescence, no side light, high light utilization rate, high light efficiency, high display finger, with open circuit, short circuit, overheat protection function, ensure the reliable and continuous operation of light source, wide voltage input, constant light flux output, instantaneous start-up.
  • Unique heat dissipation structure design, excellent and reliable heat dissipation performance, ensure the long life and reliable use of lamps.
  • Cable wiring, fast and convenient.
MODELS AVAILABLE
Model Wattage
2M-EX8199-80 80W
2M-EX8199-100 100W

Specifications

Country of Origin

China

Power

80W

Ingress Protection

IP66

Product Documents
