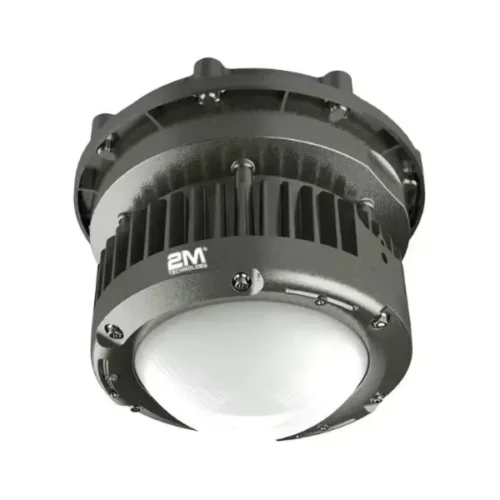

2M-EX8233H-50 Explosion-Proof Short High Bay Light (50W)

SKU: 2M-EX8233H-50
  • Features:
    • Input voltage: AC100-270v
    • Led Light Source: Cree
    • Power Factor: 0.95
    • Color Rendering Index (CRI:Ra>): 75
    • IP Rating: IP66
    • Lumen flux: 120lm/w
    • Anti corrosion: WF2
    • Beam angle: 141.9°
    • Explosion-proof Grade: ExdIICT6
    • Also available in power options: 60W, 80W, 90W

Features

  • Built-in smart cloud technology controller, remote control, status query, environment acquisition, electronic map, light condition monitoring and other functions, automatic dimming according to lighting needs, the annual electricity consumption rate ~ 34%.
  • LED light source, with an average service life of up to 100,000 hours. Wide voltage processing for constant current output with surge protection functions, to help extend the service life.
  • Independent upper and lower ventilation convection structure design, improve heat dissipation and avoid dust accumulation. Heat sink adopts inner and outer circumferential array to further improve heat dissipation performance.
  • Anti-glare: tempered glass cover (available in transparent or matte). The honeycomb crystal design helps soften the light and reduce shadows. The light transmittance is as high as 95%-98%, suitable for various solid light settings.
  • Rated IP66 the lamp body is WF2 anti-corrosion rated. The surface of the lamp body will never corrode or rust.
  • Can be installed in different configurations such as ceiling, curved rod, vertical pole, U-shaped anti-vibration bracket (angle adjustable) as needed.
  • The double inlet port design separates the power supply cavity and wiring cavity which makes the installation and wiring safer and convenient.
MODELS AVAILABLE
Model Wattage
2M-EX8233H-50 50W
2M-EX8233H-60 60W
2M-EX8233H-80 80W
2M-EX8233H-90 90W
Country of Origin

China

Power

50W

Ingress Protection

IP66

Light Type

LED

Product Documents

  • Built-in smart cloud technology controller, remote control, status query, environment acquisition, electronic map, light condition monitoring and other functions, automatic dimming according to lighting needs, the annual electricity consumption rate ~ 34%.
  • LED light source, with an average service life of up to 100,000 hours. Wide voltage processing for constant current output with surge protection functions, to help extend the service life.
  • Independent upper and lower ventilation convection structure design, improve heat dissipation and avoid dust accumulation. Heat sink adopts inner and outer circumferential array to further improve heat dissipation performance.
  • Anti-glare: tempered glass cover (available in transparent or matte). The honeycomb crystal design helps soften the light and reduce shadows. The light transmittance is as high as 95%-98%, suitable for various solid light settings.
  • Rated IP66 the lamp body is WF2 anti-corrosion rated. The surface of the lamp body will never corrode or rust.
  • Can be installed in different configurations such as ceiling, curved rod, vertical pole, U-shaped anti-vibration bracket (angle adjustable) as needed.
  • The double inlet port design separates the power supply cavity and wiring cavity which makes the installation and wiring safer and convenient.
MODELS AVAILABLE
Model Wattage
2M-EX8233H-50 50W
2M-EX8233H-60 60W
2M-EX8233H-80 80W
2M-EX8233H-90 90W

Specifications

Country of Origin

China

Power

50W

Ingress Protection

IP66

Light Type

LED

Product Documents
