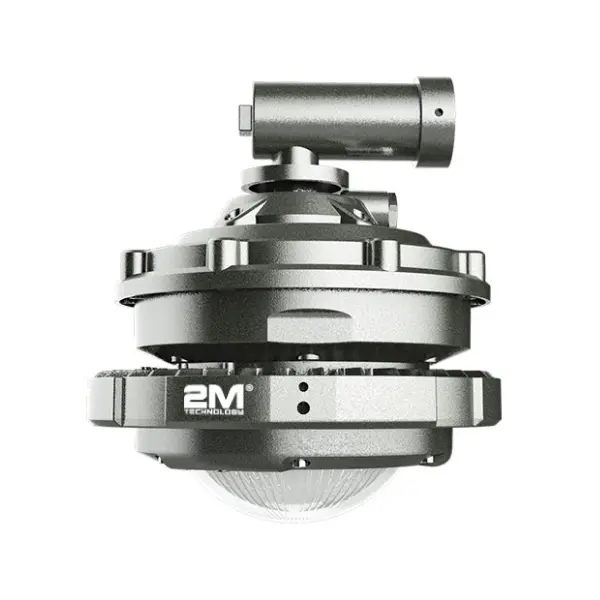

2M-EXO8232-120 Explosion-Proof Street Light (120W)

SKU: 2M-EXO8232-120
  • Features:
    • Input voltage: AC100-270v
    • Led Light Source: Cree
    • Power Factor: 0.95
    • Color Rendering Index (CRI:Ra>): 75
    • IP Rating: IP66
    • Lumen flux: 120lm/w
    • Anti corrosion: WF2
    • Beam angle: 122.4°
    • Explosion-proof Grade: ExdIICT6
    • Also available in power options: 100W, 150W

Features

  • Configuration: LED light source, the average service life is ~100,000 hrs. The wide voltage power supply can operate continuously current, it also has safety features to protect against a power surge
  • Heat dissipation: The casing is engineered to efficiently dissipate heat and avoid dust
  • Anti-glare: A strong glass cover (available in clear or frosted finish) is impact resistant, anti-glare and diffuses the light evenly to minimize shadows, up to 95% – 98% light transmittance capacity
  • Installation mode: Easy to install, the fixture can be mounted in various configurations to include: fence or guardrail street lamp
  • Inlet port: Series and parallel connection can be configured by using the double inlet design. The power supply and wiring are separated which makes the installation and wiring easier and safe
MODELS AVAILABLE
Model Wattage
2M-EXO8232-100 100W
2M-EXO8232-120 120W
2M-EXO8232-150 150W

Specifications

Country of Origin

China

Power

120W

Ingress Protection

IP66

Product Documents

  • Configuration: LED light source, the average service life is ~100,000 hrs. The wide voltage power supply can operate continuously current, it also has safety features to protect against a power surge
  • Heat dissipation: The casing is engineered to efficiently dissipate heat and avoid dust
  • Anti-glare: A strong glass cover (available in clear or frosted finish) is impact resistant, anti-glare and diffuses the light evenly to minimize shadows, up to 95% – 98% light transmittance capacity
  • Installation mode: Easy to install, the fixture can be mounted in various configurations to include: fence or guardrail street lamp
  • Inlet port: Series and parallel connection can be configured by using the double inlet design. The power supply and wiring are separated which makes the installation and wiring easier and safe
MODELS AVAILABLE
Model Wattage
2M-EXO8232-100 100W
2M-EXO8232-120 120W
2M-EXO8232-150 150W

Specifications

Country of Origin

China

Power

120W

Ingress Protection

IP66

Product Documents
