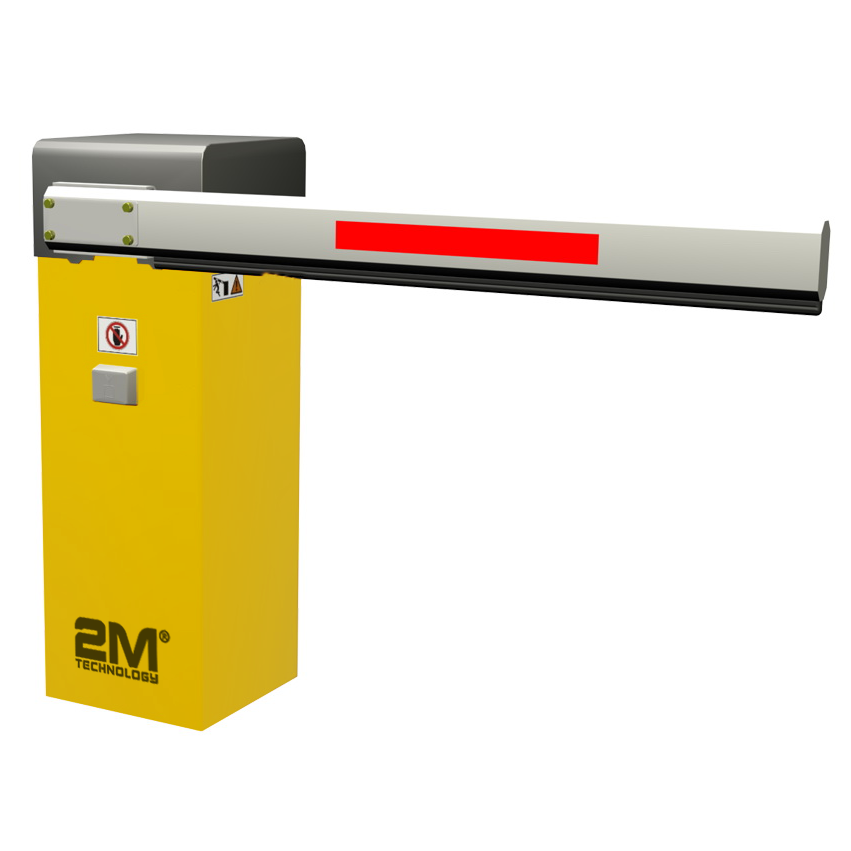

2MAGB-HSL-A High Speed Intelligent Barrier Gate (AC Torque Motor)

  • High-speed of open / close: 0.7/1.5 sec. adjustable
  • Straight boom arm with rubber bar.
  • Speed changes with the length of the bar
    • 0.7 sec. / Max.3m
    • o 1.5 sec. / Max.3.5m

The pricing is subject to change with customization. Allow 4-6 weeks for delivery.

Product Documents

  • High-speed of open / close: 0.7/1.5 sec. adjustable
  • Straight boom arm with rubber bar Max. length
    • 0.7 sec. / Max.3m
    • 1.5 sec. / Max.3.5m
  • Inclusive of arm×1 and push button×1 which opens/closes barrier
  • LED light bar, remote, boom bracket, swing-off (buy separately)
  • Housing color optional: yellow(default)/orange/white/red/blue
  • Arm direction can be switched to left or right without changing any parts

Want to see this product in action? Schedule a live demo now!
REQUEST DEMO

Dimensions55.1 × 11.8 × 39.4 in
Stainless Steel Types

Ingress Protection

IP67

IR Distance

30m (98ft)

GATE FEATURE
Power SupplyAC 85~264V,50~60HZ, 480W
Motor"240W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle"
Remoter\ (optional)Distance﹥20m
Spring1~3 pcs. spring balance
Controller80C51 MCU, 20MHz, PWM variable frequency servo controller board
Loop detector inputpulse width 100﹥ ms
IR detector inputpulse width 100﹥ ms
Up & Down inputpulse width 100﹥ ms
Traffic light outputAC220V output power (passive), current Max. 3A/AC220V
Loop detector Syn. outputRelay NO output,; Current Max.0.5A/AC220V, or Max. 1A/DC12V
RS 485 interface9600bps, ASCII decimal encoded
Arm"45×100mm Aluminum alloy octagonal arm with rubber bar, Max.6m Round arm with foam, Max. 3.5m"
Housing2mm cold-roller sheet, IP 54
Housing size (H*W*D)950×320×329mm / 37.4" x 12.5" x 12.9"
Package size1100×480×430mm / 43.3" x 18.8" x 16.9"
Gross Weightaround 46 KG / 101 lb
Operating temperature-30C , 55C / -22F , 131F
Humidity10%-95%
