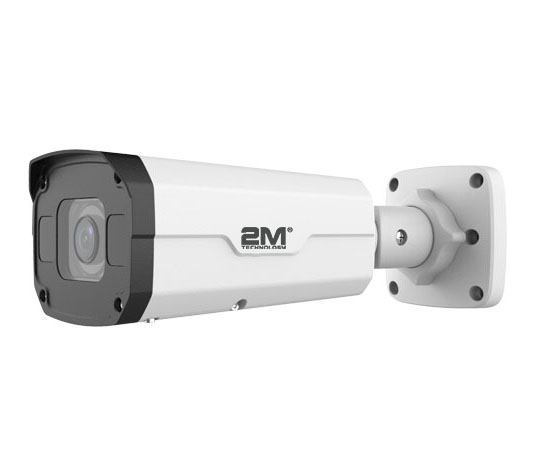

2MBIP-4KIR50Z-G 8MP HD Light Predator IR VF Bullet Network Camera
- High quality image with 8MP, 1/2.8″CMOS sensor
- Smart IR, up to 50m (164ft) IR distance
- Ultra 265, H.265, H.264, MJPEG
- NDAA Compliant
Product Documents
Downloads
2MBIP-4KIR50Z-G 8MP HD Light Predator IR VF Bullet Network Camera
Features:
- High quality image with 8MP, 1/2.8″CMOS sensor
- 8MP (3840×2160)@20fps; 5MP (3072×1728)@30/25fps; 4MP (2560×1440)@30/25fps; 2MP (1920×1080) @30/25fps
- Ultra 265, 265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 50m (164ft) IR distance
- Supports 256 G MicroSD card
- Vandal resistant rating: IK10
- IP67 ingress protection
- Supports PoE power supply
| Weight | 2.03 lbs |
|---|---|
| Dimensions | 9.6 × 3.4 × 2.8 in |
| Camera Type | Bullet Camera |
| Cameras Signal Type | IP (Network) |
| Resolution | 8MP |
| Lens Type | motorized |
| Lens Size | 2.8-12 |
| IR Lighting Distance | up to 50m |
| IP Rating | IP67 |
| Country of Origin | China |
| CAMERA | |||||||
| Sensor | 1/2.8″, 8.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||||
|
DORI Distance |
Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8mm | 86.9 | 34.8 | 17.4 | 8.7 | |||
| 12mm | 372.4 | 149.0 | 74.5 | 37.2 | |||
| Angle of View(H) | 107.4°~ 29.2° | ||||||
| Angle of View (V) | 54.2°~ 16.3° | ||||||
| Angle of View (O) | 111.0°~33.1° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||||
| Minimum Illumination | Color: 0.003Lux (F1.6, AGC ON)
0 Lux with IR on |
||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >56dB | ||||||
| IR Range | Up to 50m (164ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| VIDEO | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
|
Frame Rate |
Main Stream: 8MP (3840×2160), Max 20fps;5MP (3072×1728), Max 30fps; 4MP (2560×1440), Max30fps; 1080P (1920×1080), Max 30fps; Sub Stream: 1080P (1920×1080), Max 30fps;720P (1280×720), Max 30fps; D1 (720×576), Max 30fps; 640×360,Max 30fps; 2CIF(704×288), Max 30fps; CIF(352×288), Max 30fps; Third Stream: D1 (720×576), Max 30fps; 640×360,Max 30fps; 2CIF(704×288), Max 30fps; CIF(352×288), Max 30fps; |
||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| IMAGE | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | Supported | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| AUDIO | |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| STORAGE | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| NETWORK | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,
QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation, EZView, EZLive |
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
| INTERFACE | |
|
Audio I/O |
Input: impedance 35kΩ; amplitude 2V [p-p] |
| Output: impedance 600Ω; amplitude 2V [p-p] | |
| Alarm I/O | 1/1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| CERTIFICATIONS | |
|
Certifications |
CE: EN 60950-1 FCC: FCC Part 15 |
| GENERAL | |
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 10.5W | |
| Dimensions (LxWxH) | 245 × 86 × 72mm (9.6” × 3.4” × 2.8”) |
| Net Weight | 0.92kg (2.03lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Reset Button | N/A |
