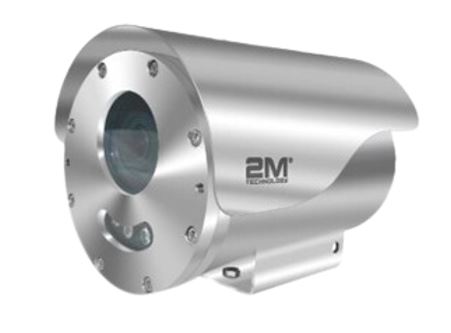

2MEBS 304/316 Stainless Steel Explosion-Proof Camera Housing with Built-In Heater

Key Features:

  • Surge Protection: 6KV
  • IP Rating: IP66, IP68, IP69
  • Material: 304/316 Stainless Steel
  • Heater Control: Built-in (optional)

Product Documents

Spec Sheet

Add to Wishlist
Compare

Add to Wishlist
Compare
  • Dimensions ( W x H x L): 270.50mm × 166.00mm × 160.00mm (10.6” × 6.5” × 6.3”)
  • Material: 304/316 Stainless steel
  • Heater Control: Built-in (optional)
  • Surge Protection: 6KV
  • Ingress Protection: IP66, IP68 (2m 2h), IP69
  • Protection Rating:
    • Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db
    • Ⅱ 2 G Ex db ⅡC T6 Gb
    • Ⅱ 2 D Ex tb ⅢC T80℃ Db
SKU: 2MEBS Categories: ,

Specifications:

  • Operating Ambient Temperature: -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
  • Surge Protection: 6KV
  • Ingress Protection: IP66, IP68 (2m 2h), IP69
  • Power: DC 12V±25%, PoE (IEEE 802.3af)/ AC100-240V
  • Power Consumption: Max 8.5W
  • Protection Rating:
    • Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db
    • Ⅱ 2 G Ex db ⅡC T6 Gb
    • Ⅱ 2 D Ex tb ⅢC T80℃ Db
  • Dimensions (W x H x L): 270.50mm × 166.00mm × 160.00mm (10.6” × 6.5” × 6.3”)
  • Net Weight: 5.6 kg (12.34 lb.)
  • Gross Weight: 6.5 kg (14.33 lb.)
  • Material: 304/316 Stainless steel
  • Heater Control: Built-in (optional)
