Features

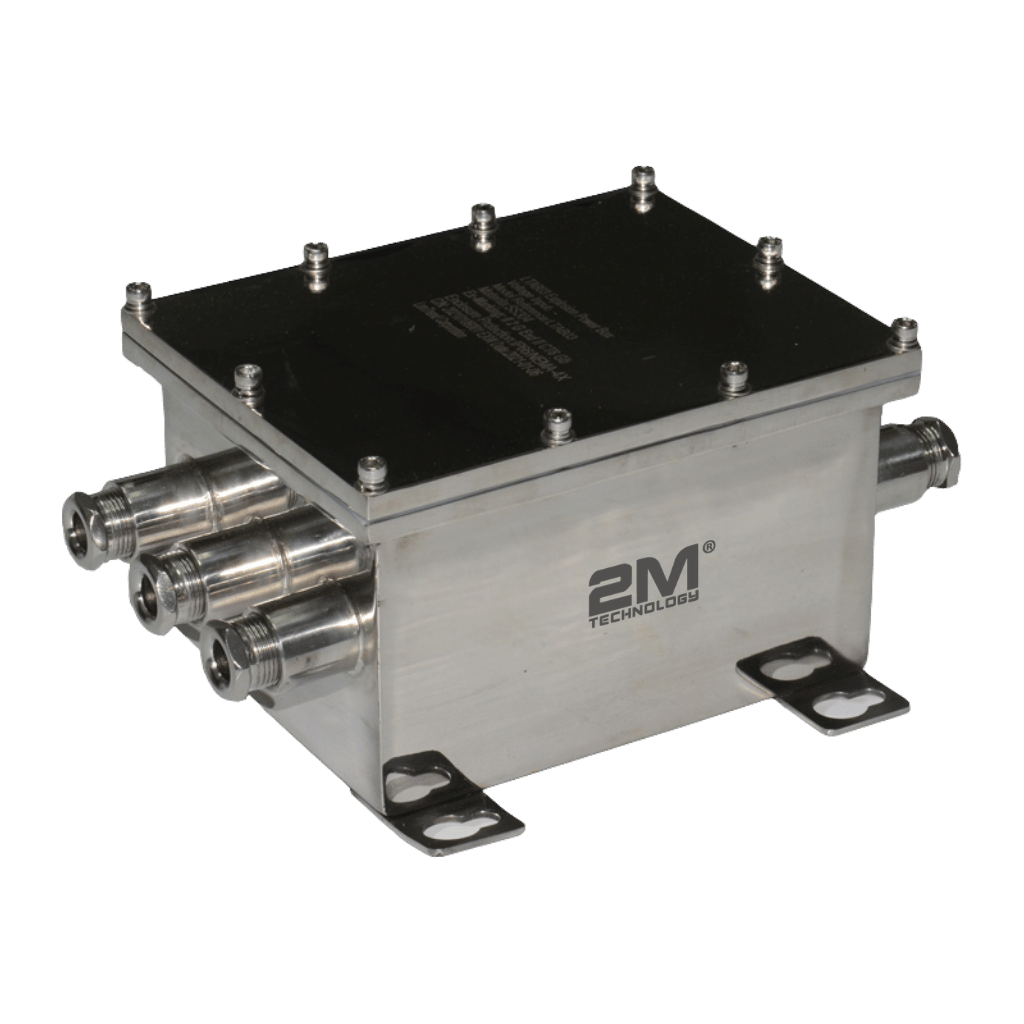

The 2M Technology 2MEJB-9 is a heavy-duty explosion-proof power box engineered to provide dependable protection for critical electrical connections, power supplies, and terminal wiring in hazardous locations. Designed for industrial facilities facing volatile atmospheres, harsh weather, and corrosive elements, the 2MEJB-9 offers certified containment and durability.
Rugged, Explosion-Proof Construction
Engineered to prevent internal electrical sparks from igniting surrounding flammable vapors or combustible dust, the enclosure carries an Ex d IIC T6 explosion-proof rating. It is manufactured from premium stainless steel and finished with an original electropolished surface that resists corrosive washdowns and airborne contaminants. Customers can choose between two material configurations: standard 304 stainless steel (Model 2MEJB04-9) or marine-grade 316L stainless steel (Model 2MEJB16-9) for maximum resistance in high-salinity or chemical-rich environments.
Deployment and Environmental Protection
The enclosure provides IP66 water and dust ingress resistance alongside a NEMA-4X rating, keeping sensitive electronics dry and functional during heavy precipitation, hose washdowns, and dusty operations. Rated for continuous operation across temperature extremes from -25°C to +60°C (-13°F to +140°F) and relative humidity levels up to 95% (non-condensing), it performs reliably in virtually any climate.
Wide Compatibility and Usability
The unit utilizes a secure top-opening design with heavy-duty fasteners, simplifying cable routing and maintenance procedures. It features dedicated 3/4-inch threaded conduit holes to accommodate standard industrial glands and armored cabling. With internal usable dimensions of 8.27 x 6.30 x 3.94 inches (210 x 160 x 100 mm), the 2MEJB-9 offers generous clearance for terminal blocks, relays, and power modules while maintaining a compact exterior footprint.
Typical Applications
- Oil and gas refineries, drilling platforms, and processing plants
- Chemical manufacturing facilities and pharmaceutical plants
- Marine ports, coastal terminals, and offshore installations
- Grain handling silos, flour mills, and agricultural processing hubs
- Heavy industrial manufacturing, paint booths, and munitions facilities
