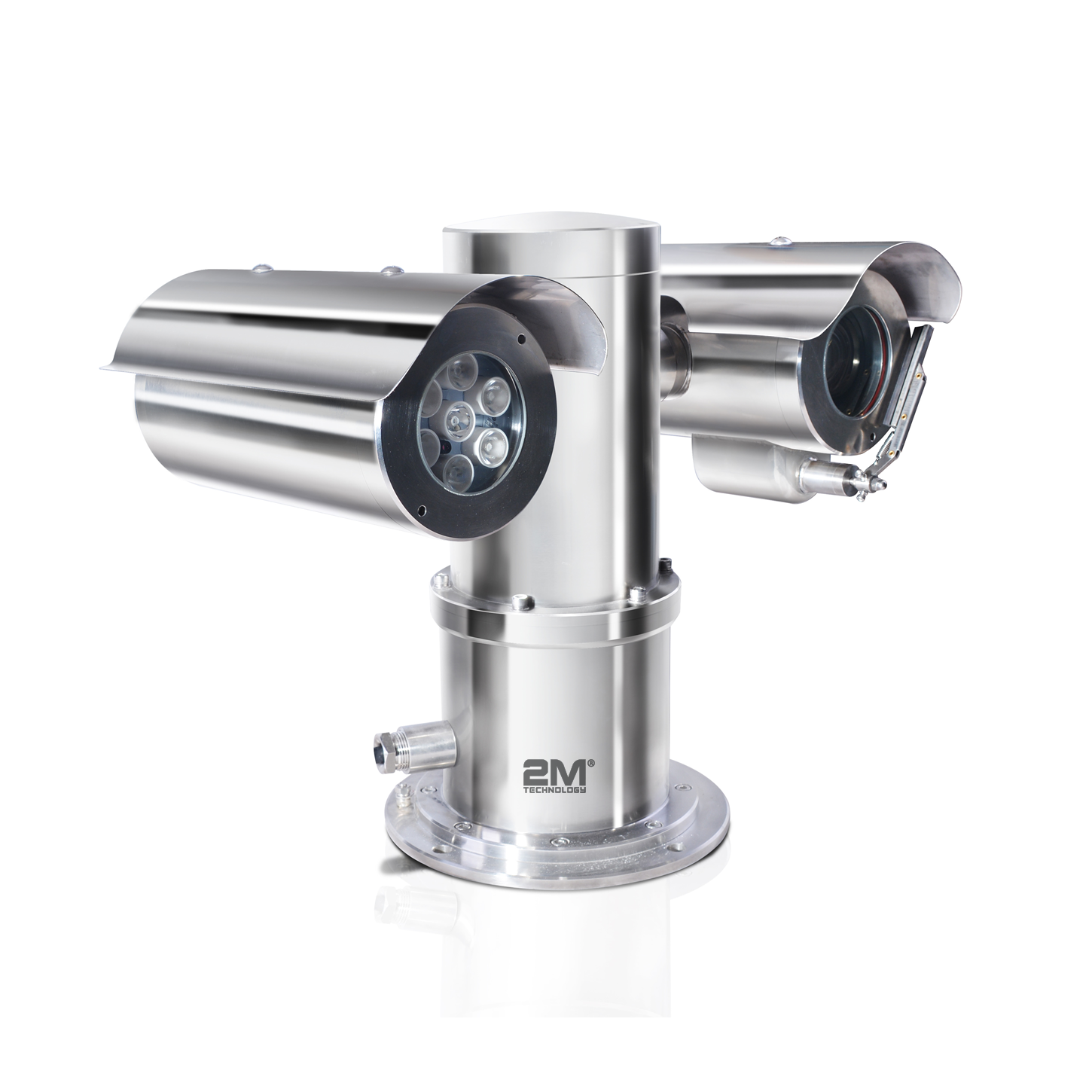

2MEPT Stainless Steel Explosion proof PTZ Housing – 316L Stainless Steel
,

Sign up to be an authorized dealer to unlock exclusive prices

2MEPT16-4K38X 4MP Network Explosion proof PTZ Camera – 316L Stainless Steel

REQUEST QUOTE
  • 316L Stainless steel (Also available in 304 SS)
  • 38X Optical Zoom
  • 4 Megapixel image
  • Smart IR, up to 250m (820ft) IR distance
  • PoE++ (IEEE 802.3bt)

Note: This is a special order item. Allow 4-6 weeks for delivery.

Product Documents

Downloads

Add to Wishlist
Compare

Add to Wishlist
Compare

2MEPT16-4K38X 4MP Network Explosion proof PTZ Camera – 316L Stainless Steel

Features:

  • 316L Stainless steel (Also available in 304 SS)
  • 38X Optical Zoom
  • Starlight illumination
  • Accurate and fast focusing
  • Smart IR, up to 250m (820ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 4 Megapixel image
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • Customized OSD
  • ONVIF Conformance
  • PoE++ (IEEE 802.3bt)

Note: This is a special order item. Allow 4-6 weeks for delivery.

SKU: 2MEPT16-4K38X Categories: , Tags: , , , , , , , ,
Weight 54 lbs
Dimensions 19.8 × 11.5 × 17.4 in
Stainless Steel Types

Resolution

4 Megapixel (2592 x 1520)
Night Vision Distance

250 Meters (800 feet)
HOUSING
Certificate Mark ExdIIC T6 GB/DIP A20 TA, T6
Certificate No CNEx13.3111
Standards Q/320412 ZAF047-2013
MECHANICAL
Housing Stainless steel 316L (Also available in 304 SS)
IP IP68
Cable Thread Hole 1pcs G3/4 or NPT3/4
Wiper Yes
AMBIENT
Ambient Temperature -25°C to +60°C
Air Pressure 80Kpa to 106Kpa
Relative Humidity ≤95% (no condensation)
ELECTRICAL
Voltage AC85V~AC265V or DC24Vor AC24V
Power 50W /70W (with thermostat)
LIGHTS
Light Distance 100m
Light Control Supported
GENERAL
Cable Integrated cable
Dimensions (LxWxH) 502 x 292 x 443 mm / 19.8″ x 11.5″ x 17.4″ in.
Weight 24.5kg [54 lbs]
Mounted Wall, Pole
CAMERA
Sensor 1/1.8″, 4.0 megapixel, progressive scan, CMOS
Lens 5.7 ~ 216.6mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 38




DORI

Distance

 Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
5.7 97.5 39 19.5 9.8
216.6 3030 1212 606 303
Angle of View (H) 58.5° ~ 2.1°
Angle of View (V) 34.9° ~ 1.2°
Angle of View (O) 72.0° ~ 2.5°
Shutter Auto/Manual; shutter time: 1 ~ 1/100000s
Minimum Illumination Color: 0.0005Lux (F1.3, AGC ON) 0Lux with IR
Iris Auto/Manual; F1.3 ~ F4.6
Day/Night IR-cut filter with auto switch (ICR)
Digital Noise reduction 2D/3D DNR
S/N >55dB
IR Range UP to 250m (820ft)
Defog Optical Defog & Digital Defog
WDR 120dB
VIDEO
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main Profile, High Profile


Frame Rate

 Main Stream: 4MP (2688*1520), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps
HLC Supported
BLC Supported
EIS Supported (Gyroscope)
OSD Up to 8 OSDs
Privacy Mask Up to 24 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
AUDIO
Audio Compression G.711
Two-way Audio Supported
Suppression Supported
Sampling Rate 8KHZ
STORAGE
Edge Storage Micro SD, up to 256GB
Network Storage ANR
NETWORK


Protocols

 IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,

QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
PAN & TILT
Pan Range 360° (endless)


Pan Speed

 0.1°/s ~ 74°/s
Preset speed: 300°/s
Tilt Range -20° ~ 90° (auto reverse)


Tilt Speed

 0.1° ~ 74°/s
Preset speed: 240°/s
Number of Presets 1024
Patrol Preset patrol, route patrol, recorded patrol
Home Position Supported
INTERFACE




Audio I/O

 Audio cable
Input: impedance 1kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 2/1
Serial Port 1 RS485
Network 1 RJ45 10M / 100M Base-TX Ethernet
GENERAL
Power AC 24V ±25%, DC 24V ±25%, PoE++ (IEEE 802.3bt)

(IEEE802.3bt switch required)
Power Consumption 16 ~ 51W
Reset Button Supported
