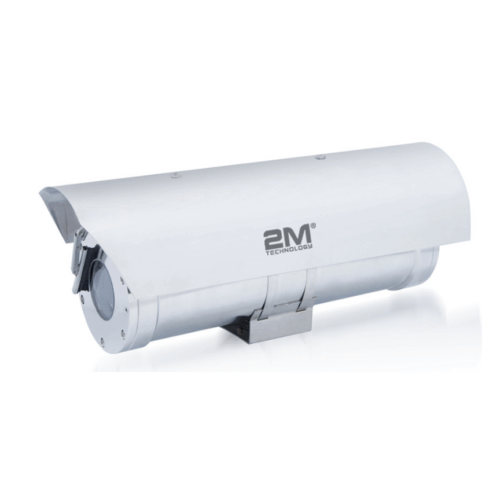

2MEW16 ATEX Explosion proof CCTV Housing with Sunshade – 316L Stainless Steel
REQUEST QUOTE (for best price)
- Constructed of stainless steel 316L (Also available in 304)
- Optical glass window with higher light transmittance
- IP68 ingress protection
- Sun shield and wiper included
Note: This is a special order item. Please allow 4-6 weeks for delivery.
Product Documents
Downloads
2MEW16L ATEX Explosion-proof CCTV Housing with Sunshade – 316L Stainless Steel
Features:
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Constructed of stainless steel 316L (Also available in 304)
- IP68 ingress protection
- Cable thread M25 x 1.5, or M27 x 1.25
- Sun shield and wiper included
Note: This is a special order item. Please allow 4-6 weeks for delivery.
| Weight | 34.2 lbs |
|---|---|
| Dimensions | 20.6 × 7.1 × 8.5 in |
| Stainless Steel Types | |
| Ingress Protection | IP68 |
| Country of Origin | China |
| CERTIFICATES | |
| ATEX
Certificate Mark |
ExII 2G Ex db IIC T6 Gb,
ExII 2D Ex tb IIC T80ºC Db |
| MECHANICAL | |
| Housing | Stainless steel 304 (also available in 316L) |
| Surface | Optional electro-polish or painting |
| IP | IP68 (1.2m/ 45min) |
| Cable Thread Hole | M25 x 1.5, or M27 x 1.25 |
| ELECTRICAL | |
| Voltage | AC100V~AC240V or AC24V |
| Power | 15W/25W (with thermostat) |
| Surge Protect | Optional, TVS6000V surge protect |
| Optical Fiber Output | Optional, multimode or single mode |
| Optical Video Signal | 1-way video output |
| Optional Network Signal | RJ45 |
| Optical Audio | 1-way input, 1-way output |
| Optical Alarm | 2-way alarm input, 1-way alarm output |
| Address Code | 0/1 |
| Trail Cable | 2m integrated cable |
| AMBIENT | |
| Ambient Temperature | -25°C – 60°C / -40°C~60°C [-13°F – 140°F / -40°F – 140°F] |
| Air Pressure | 80Kpa to 110Kpa |
| Relative Humidity | ≤95% (no condensation) |
| COMMUNICATION | |
| Communication Type | RS485 |
| Protocol | Pelco-D, Pelco-P |
| Communicate Rate | 2400~19200bps adjustable |
| 485 Communication | Support |
| GENERAL | |
| Sunshield | Yes |
| Wiper | Yes |
|
Overall Dimensions (LxWxD) |
524 x 179 x 215 (mm)
20.6″ x 7.1″ x 8.5″ in. |
|
Inner Dimensions (LxWxD) |
250 x 80 x 80 (mm)
9.84″ x 3.15″ x 3.15″ in. |
| Weight | 34.2 lbs (15.5 kgs) |
