Features
Heavy-Duty Lighting for Hazardous Outdoor Zones

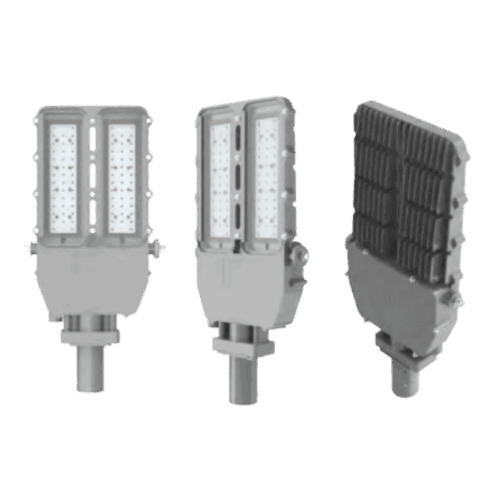

The 2MEXL-STA1 Explosion-Proof LED Street Light (Up to 200W power) is engineered to provide high-output, energy-efficient lighting in classified hazardous areas. Ideal for use in petrochemical plants, oil refineries, loading terminals, chemical storage yards, and marine environments, this fixture combines powerful illumination with industrial-grade protection.
Its rugged ADC12 aluminum housing and stainless steel fasteners ensure long-term durability even in corrosive or explosive atmospheres. The tempered glass lens and explosion-proof join surface offer additional safety and impact resistance. With IP66 and IK09 ratings (when used with wire guard), this light is built for harsh outdoor environments where reliability is critical.
Superior Lumen Output and Beam Control
Delivering up to 28,000 lumens with a luminous efficacy of 120–140 lm/W, this street light provides clear, uniform lighting for wide-area visibility. Beam angle options include 40°, 60°, 90°, 120°, T3, and T5, making it suitable for everything from narrow corridors to wide roadways.
Color temperature ranges from 2700K to 7000K, and the fixture maintains a CRI >70, offering consistent color rendering and visibility across diverse applications. It also supports 0–10V dimming, allowing users to optimize brightness and energy savings.
Engineered for Temperature Extremes
This fixture operates reliably in ambient temperatures from -40°C to +55°C (-40°F to +131°F), making it suitable for arctic, desert, or coastal deployments. Its robust thermal design supports long-term lumen maintenance, rated L70 >150,000 hours at 55°C.
Flexible Mounting and Long-Term Reliability
Designed for maximum installation flexibility, the fixture supports pole, trunnion, arm, slip fitter, bracket, and stanchion mounting. Whether you’re lighting walkways, driveways, or industrial perimeters, it can be adapted to meet your site’s unique layout.
With multiple voltage inputs (AC 120–277V or AC 200–480V), it’s compatible with most industrial power systems and ensures stable, flicker-free operation.
Key Features:
- Wattage: Up to 200W
- Lumen Output: Max. 28,000 lumens
- Efficacy: 120–140 lm/W
- CCT Range: 2700K – 7000K
- Beam Angles: 40°, 60°, 90°, 120°, T3, T5
- CRI: >70
- Dimming: 0–10V
- Housing Material: ADC12 aluminum
- Lens: Tempered glass
- Ambient Temperature: -40°C to +55°C
- Ingress Protection: IP66
- Impact Resistance: IK06/IK07 (w/o guard), IK09 (with guard)
- Mounting: Pole, Trunnion, Arm, Slip Fitter, Bracket, Stanchion
- Lumen Maintenance: L70 >150,000 hours @55°C
- Warranty: 5-Year Standard Warranty
Applications:
- Oil & gas processing plants
- Chemical and petrochemical facilities
- Outdoor hazardous storage
- Marine terminals and offshore platforms
- Industrial perimeters and loading zones
- Roadways in explosion-prone areas
