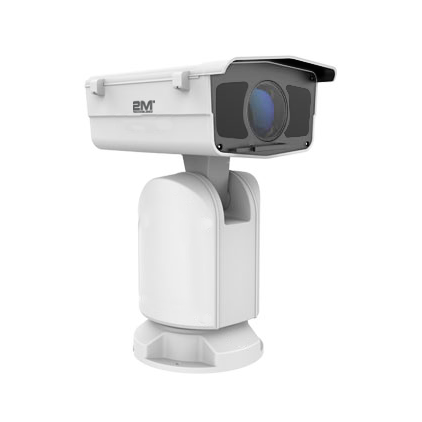

2MPIP-2MIR30044X 2MP 44x Darklight® IR Network Positioning System

Product Documents

2MPIP-2MIR30044X

2MP 44x Darklight®  IR Network Positioning System

Features:

  • 44X Optical Zoom(5~220mm) with wider and farther
  • Starlight illumination
  • Support Optical defog, Self-adaptive defog
  • Day/night functionality
  • Smart IR , up to 300 m (984 ft) IR distance
  • Gyroscope stabilization for stable picture
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265, H.265, H.264, MJPEG
  • Support 1080P@60fps, which has the smoother motion image
  • Triple streams
  • ROI (Region of Interest)
  • ONVIF Conformance
  • Intelligent temperature control technology
  • Intelligent Wiper function
  • Embedded gradient to ensure the horizontal position while installation
  • Wide temperature range: -40°C to 70°C (-40°F to 158°F)
  • Power supply: DC 48V±25%,DC 24V±15%(DC20V~DC60V)/ DC- 48V±25%,DC-24V±15%(DC-20V~DC-60V)/ AC 24V±25% Support 1/1 audio in/out, 7/2 alarm in/out ,1 Serial port RS485,1 BNC
  • Support up to 256G Micro SD card
  • Ingress Protection: IP66
CAMERA
Sensor1/2.8″ progressive scan, 2.0megapixel, CMOS
Lens5~220mm, AF automatic focusing and motorized zoom lens
Digital Zoom16
Optical Zoom44




DORI

Distance

LensDetect(m)Observe(m)Recog- nize(m)Identify(m)
5mm77.6(23.7ft)31.0(9.5ft)15.5(4.7ft)7.8(2.4ft)
220mm3413.8

(1040.5ft)

1365.5 (416.2ft)682.8 (208.1ft)341.4

(104.1ft)

Angle of View (H)60.6 ~ 1.83°
Angle of View (V)34.8°~0.8°
Angle of View (O)75.7°~1.8°
ShutterAuto/Manual, shutter time: 1s ~ 1/100000 s
Minimum Illumination0.0005lux (F1.2, AGC ON,Color); 0 lux with IR
IrisF1.2 ~ F3.5
Day/NightIR-cut filter with auto switch(ICR)
Digital noise reduction2D/3D DNR
S/N>52 dB
DefogOptical Defog
WDR120dB
IR Distance300m(984ft)
VIDEO
Video CompressionUltra 265, H.265, H.264, MJPEG




Frame Rate



Main Stream:2MP (1920×1080)@60fps Sub Stream:2MP(1920×1080)@60fps; Third Stream:D1(720×576)@60fps

HLCSupported
BLCSupported
GyroscopeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 24 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
SMART




General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
