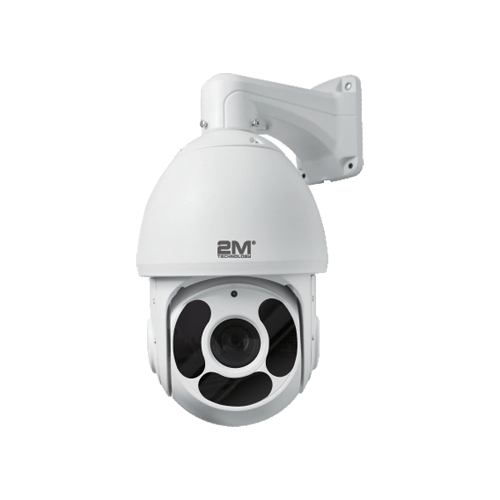

2MPT-5MIR15030X Large 5MP HD Analog IR PTZ Dome Camera

REQUEST DEMO
  • 5MP Resolution
  • The video format AHD/TVI/CVI/CVBS, factory default: AHD
  • The theory of video transmission distance up to 500 meters;
  • IP66 grade protection
  • 30x optical zoom, excellent auto focus performance

Product Documents

1)  IR Functions

  • Minimum illumination 05 Lux.
  • High efficiency infrared array, low power consumption, IR distance of 120m
  • Infrared light with a magnification distance matching algorithm;
  • Constant current circuit design, IR lights life up to 30,000

2)  System Functions

  • High performance 1/2.5”Ex-view Sony CMOS imx 2477+05A10, can achieve high quality and high sensitivity
  • Precision motor-driven, keen responsive, smooth operation, camera’s lowest running speed can be 6°/s, image can be moved with accuracy and stability under the high zoom-in with no vibration under any speed.
  • The video output resolution: 3072 x
  • 4-in-1 camera with AHD/TVI/CVI/CVBS with AHD as
  • Video transmission distance up to
  • Surge and lightning protection with an IP rating of

3)  Zoom Camera Functions

  • 30x optical zoom, excellent auto focus
  • Auto iris, electronic shutter, AWB,
  • Ultra low illumination, 05 Lux (color); 0.005 Lux (black), 0 Lux with IR;

4)  PTZ Control

  • Pan range 360° continuous rotation, tile range 0° to 90°.
  • Auto flip, no blind spot
  • Pan preset speed max: 200°/s, tilt preset speed max: 75°/s;
  • Pan control speed 6° ~ 200°/s tilt control speed 0.8° ~75°/s;
  • Supports 220 presets, 8 patrol scans, each patrol with 32 presets; supports 4 pattern scans, total record time more than 10min; supports scan between two presets and can be
  • Proportional zoom function, rotating speed can be auto adjusted according to the zoom
  • Supports park function, preset/pattern scan/patrol scan/pan scan can be auto time driven (including when in idle with power on).
Signal Type

Resolution

5 Megapixel (2560 x 1960)

Lens

30x Optical Zoom Lens

Night Vision Type

Infra Red (IR) LED

Night Vision Distance

150 Meters (500 feet)

Ingress Protection

IP66

PTZ
IR Distance 120m-150m
IR Angle Three angle adjustable with zoom in/out
Pan Range and Speed Pan 360° endless rotate, speed 0.6˚/s~200°/s
Tilt Range and Speed 0°~90°, speed 0.8°/s~75°/s
Manual Speed High/middle/low for adjustable
Preset 220x
Patrol 8 Each patrol can add 32x presets
Pattern 4 Total record time more than 10 minutes
Line Scan 1x AB line scan
Park Action Support can select preset, patrol, pattern
ZOOM CAMERA




Video Parameters

Resolution 5.0MP, 3072×1728
Sensor 1/2.5″ Ex-view Sony CMOS imx 2477+05A10
Illumination 0.05 Lux (color); 0.005 Lux (black), 0 Lux with IR
S/N > 50dB (AGC OFF)


Lens Parameters

Optical Zoom 4.7mm -141mm (close to focal)
Angle View 56° ~ 3.6°(Wide-Tele)
FUNCTIONS
Image Flip / mirror
White Balance Auto/manual
Exposure Mode Auto/manual
Backlight Compensation Supported
Gain Control Auto/manual
Electronic Shutter 1/25~1/10,000s
DNR 2D/3D digital
Focus Mode Auto/manual
Day-Night Mode Supported
GENERAL
Video Output AHD, TVI, CVI, CVBS (Default AHD)
Video Port BNC port
Power Port DC 12V/4A
Consumption 10W (max)
Working Temperature/Humidity -20°C~60°C, ≤90%RH (frostless)
Protection Grade IP66 for outside
Surge/Lightning Protection TVS3000V lightning protection,

Surge protection and voltage transient protection

Package Dimension (LxWxH) 300 x 300 x 470 (mm)
Weight 12.13 lbs
