Solar Pole Mounted Systems, Solar Powered CCTV
2MS1B-4G5D Solar Solution with a 4MP Mini Fixed Bullet Camera, NVR and 4G Router Standby 24hr x5 Days
REQUEST QUOTE
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Note: This is a special order item. Allow 4-6 weeks for delivery.
Product Documents
Downloads

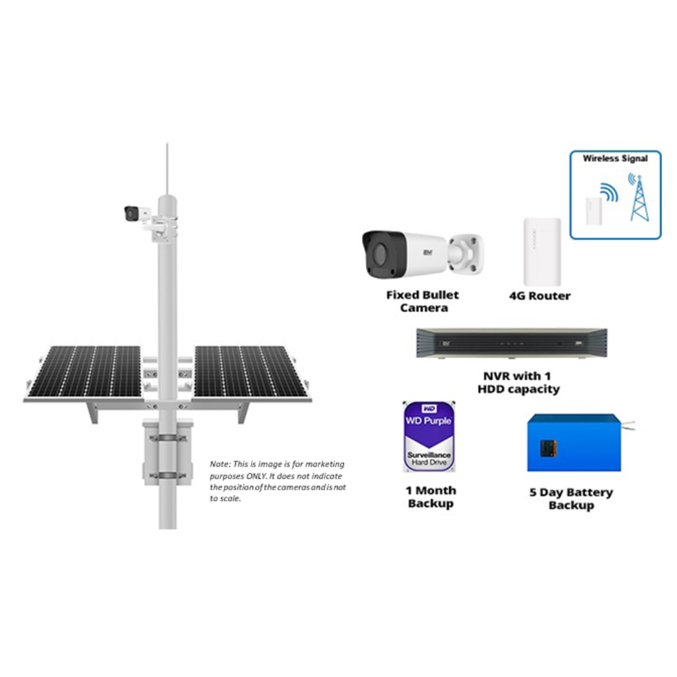

2MS1B-4G5D Solar Solution with a 4MP Mini Fixed Bullet Camera, NVR and 4G Router Standby 24hr x5 Days

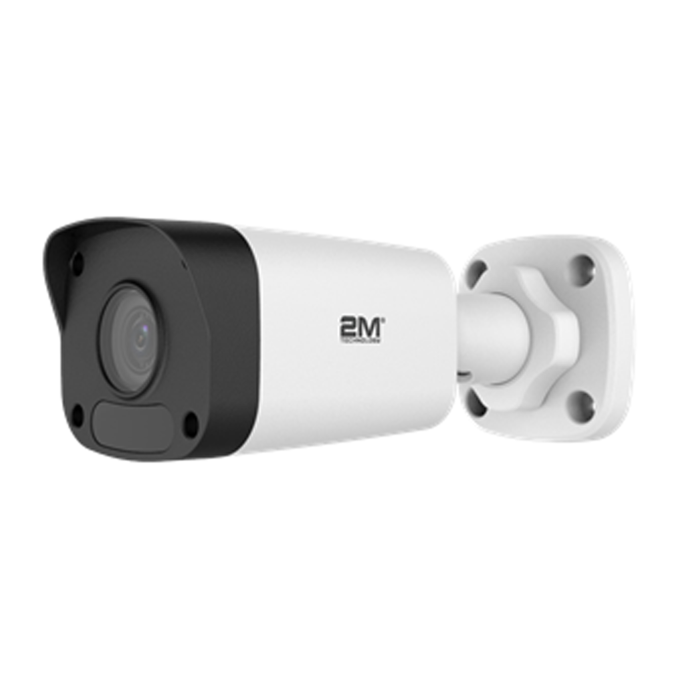

4MP Mini Fixed Bullet Network Camera: 2MBIP-4MIR30-E
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Video Recorder : 2MN-8004-P4
- 4 channel IP camera input
- 4 PoE channels
- 1 TB hard drive included

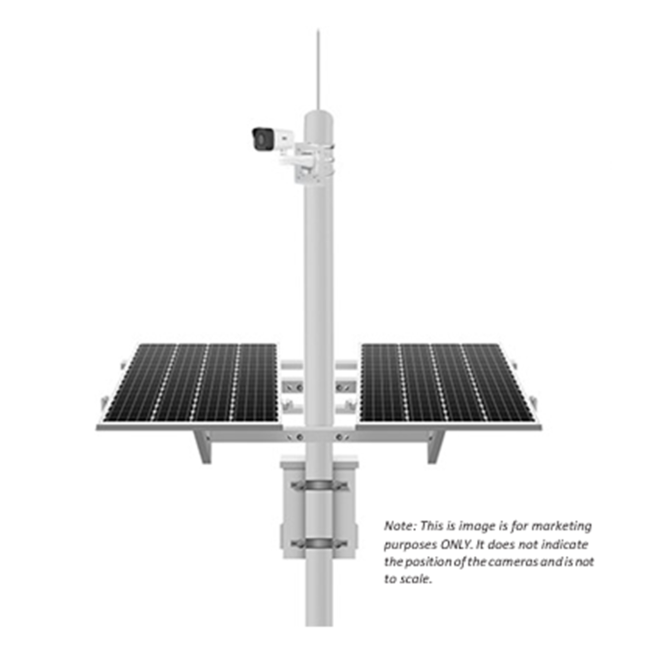

Solar Power System
- Monocrystalline silicon solar cell module with a 25 year service life
- Durable Lithium iron phosphate battery with an 8 year service life
- Standby time: 24 hours for 5 days
- Easy to manage controller
- Integrated power cabinet
Note: This is a special order item. Allow 4-6 weeks for delivery.
| CAMERA: 2MBIP-4MIR30-E | ||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||
| Lens | 4.0mm@F2.0 | |||||
| DORI Distance | Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 4.0mm | 60 | 24 | 12 | 6 | ||
| Angle of View (H) | 79.7° | 50.5° | ||||
| Angle of View (V) | 51.8° | 35.9° |
| Angle of View (O) | 98.0° | 62.1° |
| Adjustment Angle | Auto/Manual, 1~1/100000 s | |
| Shutter | Color: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR on | |
| Digital Noise Reduction | 2D/3D DNR | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| S/N | >52dB | |
| IR Range | Up to 30m (98 ft) IR range | |
| WDR | DWDR | |
| VIDEO | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| H.264 code profile | Baseline profile, Main Profile, High Profile | |
| Frame Rate | Main Stream:5MP (2592*1944): Max.15fps; Sub Stream: 720P (1280×720): Max.20fps; | |
| HLC | Supported | |
| BLC | Supported | |
| OSD | Up to 4 OSDs | |
| Privacy Mask | Up to 8 areas | |
| ROI | Up to 2 areas | |
| Motion Detection | Up to 4 areas | |
| NETWORK | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |
| Compatible Integration | ONVIF (Profile S), API | |
| INTERFACE | ||
| Network | 10/100M Base-TX Ethernet | |
| GENERAL | ||
| Poer | 12 V DC±25%, PoE (IEEE802.3 af) | |
| Power Consumption | Power consumption: Max 4W | |
| Dimensions (LxWxH) | 167.3 × 62.9 ×62.7 mm (6.6” × 2.5” × 2.5”) | |
| Weight | 0.37kg (0.81lb) | |
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F) | |
| Humidity | Humidity :10%~90% RH (non-condensing) | |
| Ingress Protection | IP67 | |
