Solar Pole Mounted Systems, Solar Powered CCTV
Compare

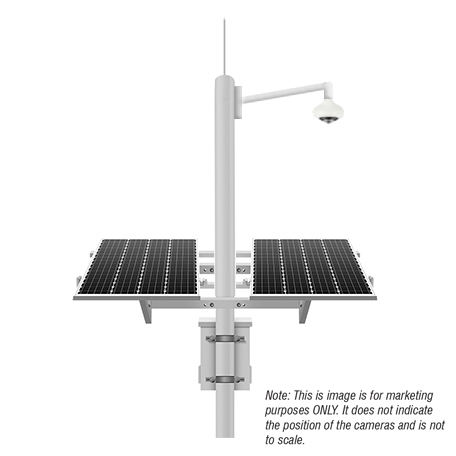

2MS1F-4G3D Solar Solution with a 4K Ultra HD Vandal-resistant Fisheye Camera, NVR and 4G Router Standby 24hr x3 Days
REQUEST QUOTE (for best price)
- 4K Ultra wide angle lens, 360° panoramic image
- Max 4000 x 3000 resolution
- Support PoE power supply
- Embedded infrared light, 360° fill-in light, up to 10m (33ft) IR distance
- IP66
Note: This is a special order item. Allow 4-6 weeks for delivery.
Product Documents
Downloads

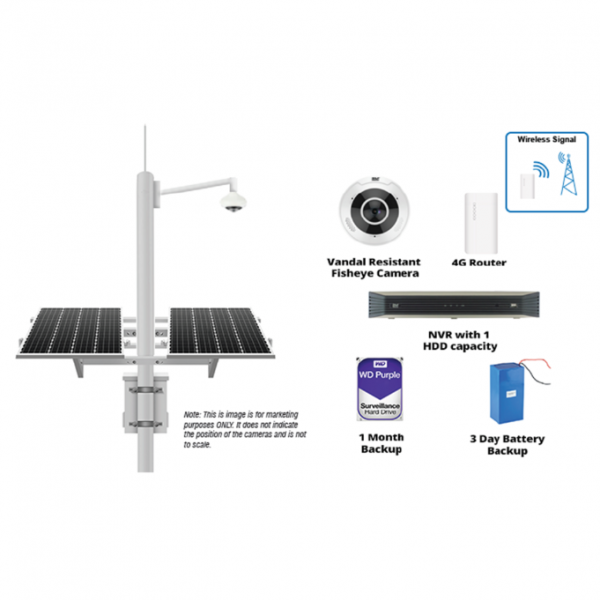

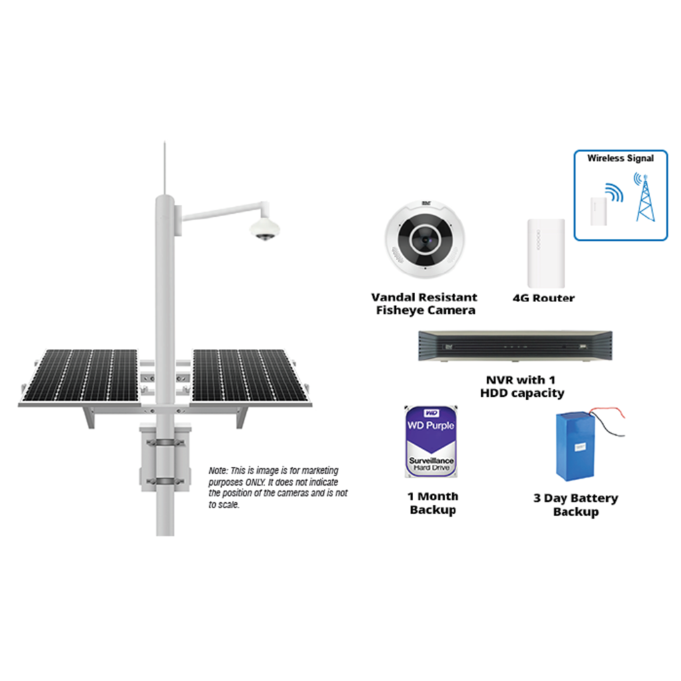

2MS1F-4G3D Solar Solution with a 4K Ultra HD Vandal-resistant Fisheye Camera, NVR and 4G Router Standby 24hr x3 Days
4K Ultra HD Vandal-resistant Fisheye: 2MFIP-12MIR20-P
- 4K Ultra wide angle lens, 360° panoramic image
- Max 4000 x 3000 resolution
- Support PoE power supply
- Embedded infrared light, 360° fill-in light, up to 10m (33ft) IR distance
- IP66
Video Recorder : 2MN-8004-P4
- 4 channel IP camera input
- 4 PoE channels
- 1 TB hard drive included
Solar Power System
- Monocrystalline silicon solar cell module with a 25 year service life
- Durable Lithium iron phosphate battery with an 8 year service life
- Standby time: 24 hours for 3 days
- Easy to manage controller
- Integrated power cabinet
Note: This is a special order item. Allow 4-6 weeks for delivery.
| Country of Origin | China |
|---|
| CAMERA: 2MPIP-2MIR505X | |||||
| Sensor | 1/1.7", 12.0 megapixel, progressive scan, CMOS | ||||
| Lens | 1.8mm@F2.4 | ||||
| DORI Distance | Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 1.8 | 43.8 | 17.5 | 8.8 | 4.4 | |
| Angle of View (H) | 360° | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||
| Minimum Illumination | Color: 0.05 Lux (F2.4, AGC ON) 0 Lux with IR | ||||
| Day / Night | IR-cut filter for day & night function | ||||
| S/N Ratio | >52dB | ||||
| IR Range | Up to 10m (33ft) | ||||
| wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | DWDR | ||||
| VIDEO | |||||
| Video Compression | Ultra265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream: 15fps (4000 x 3000, 3000 x 3000); 25fps (2560 x 2560); Sub Stream: 15fps (2000 x 1500, 2000 x 2000); 25fps (2000 x 2000); Third Stream: 15fps (720 x 576, 320 x 288) | ||||
