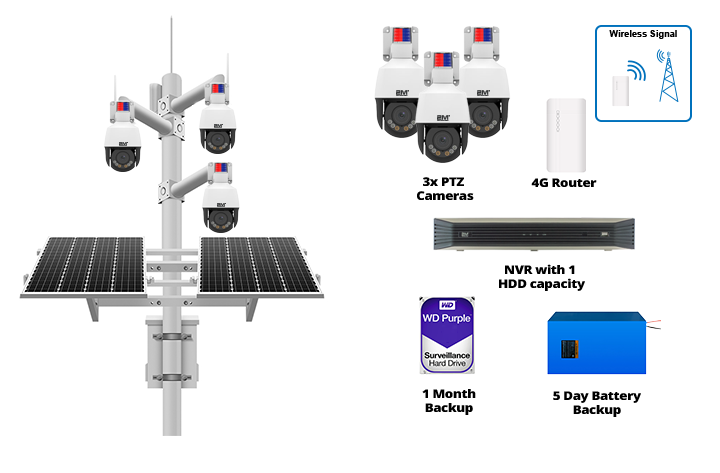

2MS3P-4G5D Solar Solution with 3x 2MP PTZ Domes, NVR and 4G Router Standby 24hr x5 Days
REQUEST QUOTE (for best price)
- Light Predator illumination
- Three 2MP PTZ cameras
- 5x optical zoom
- up to 50m (164 ft) night vision and 10m (33 ft) warm light distance
- With wall mount
Note: This is a special order item. Allow 4-6 weeks for delivery.
Product Documents
Downloads
2MS2B-4G3D Solar Solution with a 2MP Mini Fixed Bullet Camera, NVR and 4G Router Standby 24hr x3 Days
2MP PTZ Dome Network Camera: 2MPIP-4MIR30-E
- Light Predator illumination
- Three 2MP PTZ cameras
- 5x optical zoom
- up to 50m (164 ft) night vision and 10m (33 ft) warm light distance
Video Recorder : 2MN-8004-P4
- 4 channel IP camera input
- 4 PoE channels
- 1 TB hard drive included
Solar Power System
- Monocrystalline silicon solar cell module with a 25 year service life
- Durable Lithium iron phosphate battery with an 8 year service life
- Standby time: 24 hours for 3 days
- Easy to manage controller
- Integrated power cabinet
Note: This is a special order item. Allow 4-6 weeks for delivery.
| Country of Origin | China |
|---|
| CAMERA: MODEL 2MPIP-2MIR505X | |||||
| Sensor | 1/2.8" progressive scan, 2.0 megapixel, CMOS | ||||
| Lens | 2.8~12mm, AF automatic focusing and motorized zoom lens | ||||
| DORI Distance | Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8mm | 43.4 | 17.4 | 8.7 | 4.3 | |
| 12mm | 186.2 | 74.5 | 37.2 | 18.6 | |
| Angle of View (H) | 32.5°~95.7° | ||||
| Angle of View (V) | 18.4°~52.2° | ||||
| Angle of View (O) | 36.9°~100.8° | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
| Minimum Illumination | Color:0.001 lux (F1.6,AGC ON) 0 lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52 dB | ||||
| IR Range | UP to 50m (164ft) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Warm Light Range | UP to 10m (33ft) | ||||
| WDR | 120dB | ||||
| VIDEO | ||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | |
| H.264 code profile | Baseline profile, Main Profile | |
| Frame Rate | Main Stream:1080P (1920*1080):Max. 30 fps; 720P (1280×720): Max. 30 fps; Sub Stream: 720P (1280×720):Max. 30 fps; Third Stream: CIF (352*288): Max. 30 fps | |
| Video Bit Rate | 128 Kbps~16 Mbps | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 8 areas | |
| ROI | Up to 8 areas | |
| Motion Detection | Up to 4 areas | |
| IMAGE | ||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |
| Digital noise reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal/Vertical/Horizontal/180° | |
| Dewarping | Support | |
| HLC | Supported | |
| BLC | Supported | |
| AUDIO | ||
| Audio Compression | G.711 | |
| Suppression | Supported | |
| Sampling Rate | 8 KHZ | |
| STORAGE | ||
| Edge Storage | Micro SD, up to 128 GB | |
| Network Storage | ANR, NAS(NFS) | |
| NETWORK | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL | |
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | |
| Client | Android®, IPhone®, 2M Station, 2M Guard | |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||
| PAN & TILT | ||
| Pan Range | 345° | |
| Pan Speed | 0.1°/s ~ 50°/s | |
| Preset speed: 50°/s | ||
| Tilt Range | 90° | |
| Tilt Speed | 0.1° ~ 40°/s | |
| Preset speed: 40°/s | ||
| Number of Presets | 256 | |
| Patrol | Preset patrol, Route patrol | |
| INTERFACE | ||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |
| Built-in Mic | Supported | |
| Built-in Speaker | Supported | |
| Alarm Light | Supported | |
| CERTIFICATIONS | ||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |
| GENERAL | ||
| Power | DC 12V±25%, PoE (IEEE802.3 at) | |
| Power consumption: Max 16 W | ||
| Dimensions (Ø x H) | Ø 133 x 269.4 (mm) (Ø 5.2"x 10.6" in.) | |
| x | 0.87 kg (1.92lb) | |
| Gross Weight | 1.13 kg (2.49lb) | |
| Material | Metal + Plastic | |
| Working Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH (non-condensing) | |
| Storage Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH (non-condensing) | |
| Surge Protection | 4KV | |
| Ingress Protection | IP66 | |
| Reset Button | Supported | |
| RECORDER MODEL: 2MN-8004-P4 | ||
| VIDEO INPUT/ OUTPUT | ||
| IP Video Input | 4CH | |
| Two-way Audio Input | 1CH, RCA | |
| NETWORK | ||
| Incoming Bandwidth | 80Mbps | |
| Outgoing Bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| VIDEO/AUDIO OUTPUT | ||
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 4-ch | |
| Corridor Mode Screen | 3/4 | |
| DECODING | ||
| Decoding format | Ultra 265/H.265/H.264 | |
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080P@30 | |
| HARD DISK | ||
| SATA | 1 SATA interface | |
| Capacity | up to 6TB for each disk | |
| SMART | ||
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detec- tion, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed | |
| VCA Search | Face search, Behavior search | |
| Statistical Analysis | People counting | |
| EXTERNAL INTERFACE | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 | |
| POE | ||
| Interface | 4 independent 100 Mbps PoE network interfaces | |
| Max Power | Max 30W for single port Max 54W in total (13.5W for each) | |
| Supported Standard | IEEE 802.3at, IEEE 802.3af | |
| GENERAL | ||
| Power Supply | 48V DC | |
| Power Consumption | ≤9W (without HDD) | |
| Working Environment | -10°C ~ 55°C (14°F ~ 131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 260 x 240 x 47 (mm) (10.2"×9.4"×1.9 " in.) | |
| Weight (without HDD) | 1kg (2.20 lb) | |
| SOLAR MODULE SPECIFICATIONS | |||
| MODULE DATA | |||
| Standard Power (W) | 170 | 300 | 380 |
| Working Voltage (V) | 18.86 | 32.01 | 38.41 |
| Working Current (A) | 8.51 | 8.86 | 8.86 |
| Open Circuit Voltage (V) Voc | 22.35 | 37.27 | 44.72 |
| Short-circuit Current (A) Isc | 9.02 | 9.373 | 9.895 |
| Cell Efficiency (%) CE | 19.3 | 19.9 | 19.9 |
| Module Efficiency (%) ME | >16.13 | >17.43 | >17.52 |
| Tolerance (%) | ±3% | ||
| Nominal Operating Cell Temperature | 47°C (+/- 2°C) | 116.6°F (+/- 35.6°F) | ||
| TEMPERATURE COEFFICIENTS | |||
| Short Circuit Current Coefficient Isc (%) | 0.04°C / 32.1°F | ||
| Open Circuit Voltage Coefficient Voc (%) | -0.38°C / 31.3°F | ||
| Nominal Power Factor Pm (%) | -0.47°C / 31.2°F | ||
| Working Current Coefficient Im(%) | 0.04°C / 32.1°F | ||
| Working Voltage Coefficient Vm (%) | -0.38°C / 31.3°F | ||
| COMPONENTS & MECHANICAL DATA | |||
| Solar Cell | 156 x 156 Mono-crystalline silicon | ||
| Number of Cell (pcs) | 4 x 9 series connection | 6 x 10 series connection | 6 x 12 series connection |
| Size of Module | 1485 x 668 mm/ 4.9' x 2.2' ft | 1640 x 990 mm/ 5.4' x 3.2' ft | 1960 x 990/ 6.4' x 3.2' ft |
| Front Glass Thickness | 3.2mm | 0.1" in | ||
| Surface Maximum Load Capacity | 2400-5400Pa | ||
| Allowable Hail Load | 23m/s, 7.53g | 23m/s, 0.3oz | ||
| Weight Per Piece (kg) | 15.26kg/33.6 lbs | 18.86/41.6 lbs | 22.16/48.9 lbs |
| Junction Box Type | Pass the TUV or CE Certificate | ||
| Bypass Diode Rating (A) | 12 or None | ||
| Cable & Connector Type | Pass the TUV or CE Certificate | ||
| Frame (Material Corners, etc.) | 30# / 35# | 40# / 35# | |
| Back Board Type (Brand Type) | TPT, PET or KPF | ||
| Working Temperature | -40°C to 85°C | -40°F to 185°F | ||
| Standard Test Conditions | AM1.5 1000W/m2 25°C/77°F | ||
