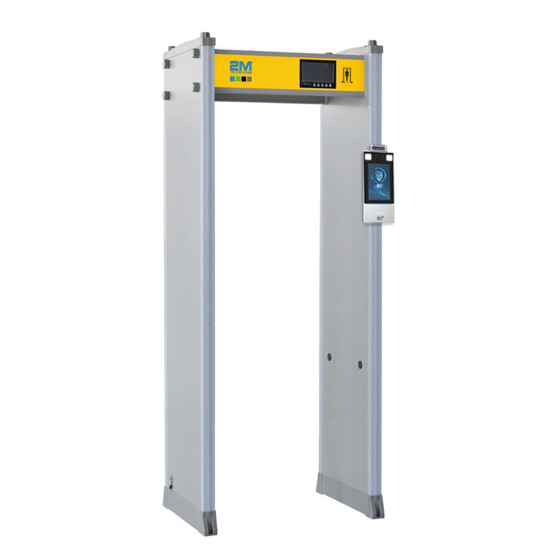

2MTHWT-HMD-III Walkthrough Metal Detector with Face Recognition and Forehead Temperature Measurement Module

  • Metal Detector
  • Can be set up with up to 33 metal detector zones
  • Temperature and Facial Recognition Module
  • Forehead temperature measurement, distance: up to 3 feet
  • Non-contact detection to avoid cross infection
  • Easy to set up and use

Product Documents

Features

  • Alarm sounds when it detects unauthorized metal objects
  • Can be set up with up to 33 metal detector zones
  • Temperature can be measured on the forehead
  • Temperature measurement distance: up to 3 feet
  • Non-contact detection to avoid cross infection
  • Easy to set up and use
  • Safe for pregnant women, and people with pacemakers and/or hearing aids
  • MBSU backup battery
  • Self-diagnostic procedures
  • Automatically adapts to the working environment
  • Auto scans for environmental interference
  • User friendly LCD
  • Automatic calibration
  • Two LED light bars on both door panels which indicates the level where the metal object is detected
  • Metal detection sensitivity is adjustable from Level 0 to 300 High: Can detect up to a paper clip. Low: Detects big metal articles such as knives, guns, copper, aluminum items, zinc (more than 150g), bypassing metal in belts, buttons and shoes
  • Shock proof to avoid false readings
  • Sound and light alarm warnings
  • Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
  • Tamper-Proof: The operating system is password protected
  • Adjustable operating frequencies to help eliminate the potential interference
  • from X-ray units, radios and other electrical items.
  • Mix distances between two walkthroughs: 8″ at low sensitivity, 20″ at high sensitivity
  • Connect with computer, camera, turnstile, etc… (optional)
  • Built-in deep learning chip, Supports local off-line recognition, with a capacity of up to 10K faces, face whitelist (1:N)
  • Fastest recognition time 2 seconds, various model merge mode are used to reduce false rate and increase pass rate
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for captures high quality images in various complex lighting
  • Supports anti-spoofing detection based on deep learning algorithm, effective against fraud such as presenting a photo or video vs a live
Zones Optionsup to 33 zones
Shock ProofYes
LED Bars2
DiagnosticsSelf-diagnostic procedures
CalibrationAutomatic


Tracking

Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
Advanced Broadband DetectionCan detect ferrous and non-ferrous articles
AlarmAudible and Visual Alerts
Adjustable SensitivityFrom Level 0 to 300
Tamper ProofPassword Protected
Operating FrequenciesAdjustable


Distance

Mix distances between two walk-through: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
SafetyHarmless to pregnant women and heart pacemakers
BatteryMBSU backup battery
Electrical Current:AC100V~240V 50/60Hz
Power15W
Work Environment-4º F (-20º C) to +149º F (65º C)
Ingress ProtectionIP55 / IP65
Gross Weight75kg
Outer Frame2210(h) x 880(w) 600(d) (mm)
Inner Frame2010(h) 760(w) 600(d) (mm)
FACIAL RECOGNITION
Face Recognition Accuracy Rate>99%
Face Recognition Time200ms
Face Capacity10,000
Card Capacity100,000
Storage Capacity4GB
Event Capacity30,000 (with images)
Measurement Range30°C 45°C
Measurement Accuracy0.1°C
Measurement Deviation≤±0.3°C
Measurement Distance1m


Authentication Mode

Face Whitelist: (1:N)
Card:(1:N)
Face +Body temperature
Card TypeMifare 1 Card
User ManagementSupports user library addition, deletion, update
Record ManagementSupports local recording and real-time upload










Interface

1x LAN

1x Wiegand Input 1x Wiegand Output 1x RS485

1x Alarm Input 2x Alarm Output 1x USB 2.0

1x Lock

1x Door Contact 1x Exit Button
