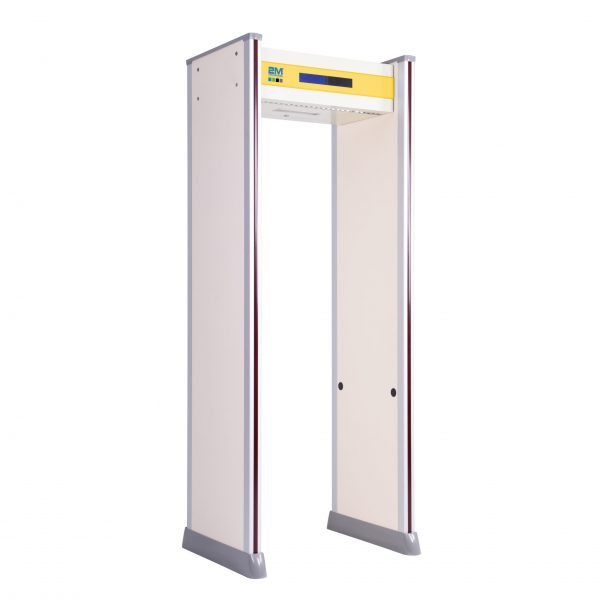

2MWT-O18Z Outdoor Rated, 18 Zone Walkthrough Metal Detector with Intelligent DSP

  • Outdoor 18 zones
  • LCD panel
  • 4 LED bars
  • IP55 weatherproof design
  • 18 zones to precisely identify multiple target
  • ADA Compliant Models Available
  • WIFI Network Capability option available

Product Documents

Certifications

  • ISO9001; ISO14001; HSMS18001; CE
  • Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center
  • In accordance with: EN60950, WN50081-1, EN50082-1
  • Electric safety: EN60950
  • Anti-interference standard: EN50082-1

Features

  • Indoor 18 zones
  • IP55 weather rated for outdoor use
  • Extremely high sensitivity to find even the smallest of threats
  • Operation: Keyboard and remote control
  • User friendly interface operation for LCD
  • Four LED light bars on both door panels: gives alarm corresponding to the height or human
  • 18 zones identify multiple target locations from head to toe
  • Sensitivity adjustable from Level 0 to 300 High: Can detect a clip; Low: Detects big metal articles such as knives, guns, copper, aluminum, zinc (more than 150g), bypasses metal in belt, buttons and
  • Shock proof to avoid false
  • Sound and light
  • Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
  • Tamper-Proof: operating system is password
  • Adjustable operating frequencies: Helps eliminate the potential interference from X-ray units, radios and other electrical
  • Mix distance between two walkthroughs: 3 meters at low sensitivity, 0.5 meters at high sensitivity
  • Harmless to pregnant women and patients with pacemakers
  • ADA Compliant
  • WIFI Network Capability option available
  • Connect with computer, camera, turnstile, etc… (optional)
Weight0.73 lbs
Series

Professional Series

Resolution

4 Megapixel (2592 x 1520)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Lens

Fixed 2.8mm Lens

Features

Audio Input

Ingress Protection

IP67

Zone Options18 zones
Shock proofYes
LED Lights4
DisplayLCD
Pinpoint ZonesPinpoint zones to precisely identify multiple target locations from head to toe, can update 12 &18 zones
TrackingIntelligent traffic and alarm counters that calculate traffic flow and resultant alarms
Advanced Broadband DetectionCan detect ferrous and non-ferrous articles.
AlarmAudible and Visual Alerts
Adjustable SensitivityFrom Level 0 to 99
Tamper ProofPassword Protected
Operating FrequenciesAdjustable
DistanceMix distance between two Walk-throughs: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity.
SafetyHarmless to pregnant women and heart pacemakers
Electrical CurrentAC215V~230V; 50/60Hz
Power35W
IP RatingIP55
Work Environment-20°C~+45°C
Gross Weight209.4 lbs
Outer Frame2220mm (h) x 820mm (w) X 522mm (d) 87.4" x 32.3" x 20.6" (HxWxD) (inches)
Inner Frame2000mm (h) X 700mm (w) X 522mm (d) 78.7" x 27.6" x 20.6" (HxWxD) (inches)
