2MTHWT-HMD-IV SWIFT Human Body Temperature Scanner & Metal Detector Security Gate

  • Alarm sounds when it detects unauthorized metal objects
  • ADA compliant model available Model: 2MTHWT-HMD-IV/ADA
  • Thermal camera temperature reader
  • Scans 50 people per minute
  • 18 metal detection zones
  • Easy to set up and use

Product Documents

The human body temperature measurement metal security gate is a multi function safety check product, it can be used to detect metal contraband and abnormal human body temperature. It is suitable for the control of crowded places can reduce the risk of cross infection, it can be applied to scenarios such as campuses, enterprise, government, etc., and is helpful in preventing and controlling the spread of infectious diseases


  • Alarm sounds when it detects unauthorized metal objects
  • 18 metal detection zones
  • Scans 50 people per minute
  • Thermal camera temperature reader
  • Displays temperature on the top panel
  • Temperature measurement distance: 1.5”- 3.1” inches
  • Accuracy Reading < 0.5°C / 0.9°F
  • Non-contact detection to avoid cross infection
  • Easy to set up and use
  • Safe for pregnant women, and people with pacemakers and/or hearing aids


Want to see this product in action? Schedule a live demo now!

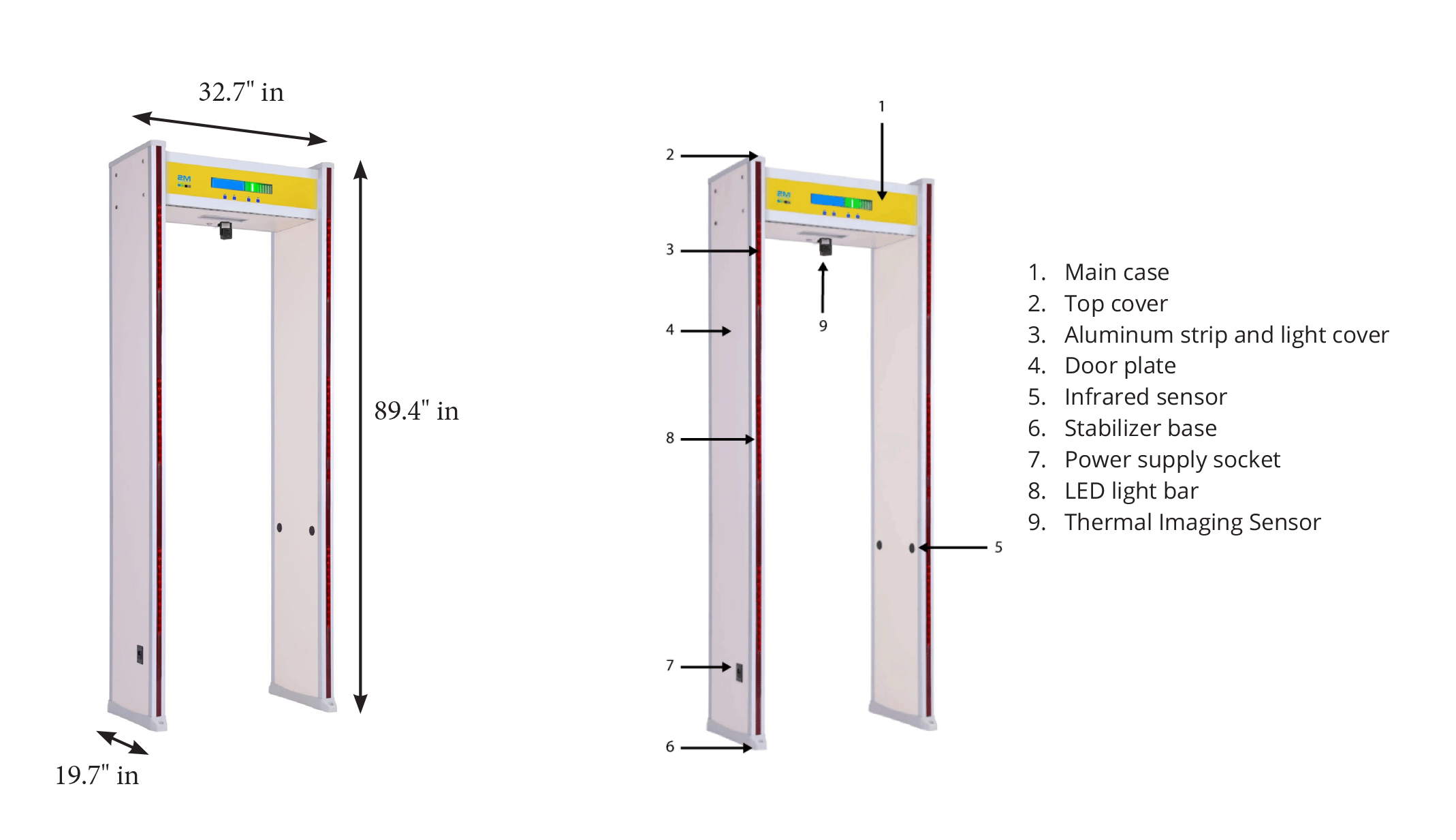

Dimensions 89.4 × 32.7 × 19.7 in
        Display Content When the temperature of the human body is measured, the tempera- ture display area shows the actual temperature of the human body and the number of alarm people. When no one passes, the temperature display area displays the temperature of the working environment. When the running indicator is green, it is ready to operate. When the alarm light turns red, a temperature exceeding the threshold is detected or metal objects are detected. The signal interference indicator indicates the presence or absence of interference in zones 1-18 from bottom to top.
Temperature Detection Range 0˚C~45˚C; 32˚F~133˚F
Temperature Error Variation ±0.2˚C; ±0.5˚F
Metal Detection Zone Mode 18 metal detection areas
Metal Detection Accuracy With the function of adjusting sensitivity, each location can set the sensitivity of 300 levels (0~299), the minimum can identify a coin
  Password Protection   Only authorized personnel can operate
Security Can exclude belt buckle, jewelry, keys and other items. Safe for pacemakers, hearing AIDS, pregnant women, etc.
Power Supply AC110V/60HZ
Power Consumption <20W
Operating Temperature -10˚C~45˚C; 14˚F~113˚F
Operating Humidity <80%
Weight 110.23 lbs
Overall Dimension 89.4 in x 32.7 in x 19.7 in
Channel Dimension 78.7 in x 27.6 in x 19.7 in
    Notes The installation environment should be rainproof, moisture-proof and dry, and the environment temperature balance should be kept as far as possible. High temperature objects should be kept away from the surrounding environment. Chemical agents such as 84 disinfectant and 75% ethanol disinfectant should be avoided from corroding the outer membrane of the temperature control probe.
