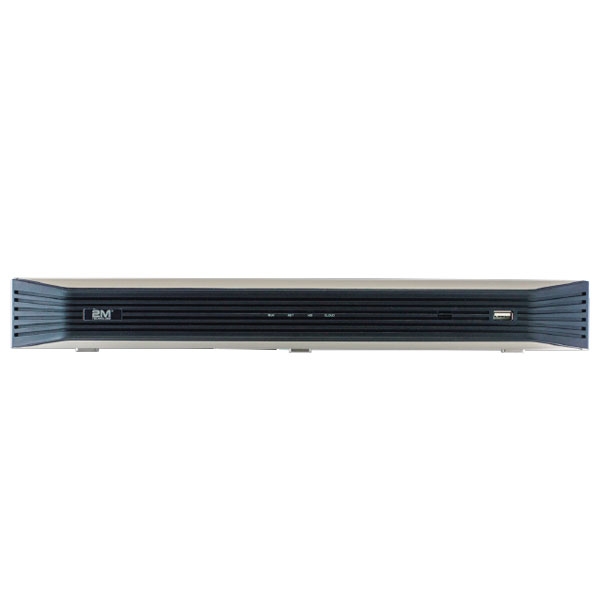

2MN-8116-P16-P 16-CH 2x SATA Network Video Recorder

  • Supports Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Up to 4K (3840×2160) resolution
  • Recording resolution up to 12MP
  • Can use 2x disks up to 10TB each
  • Supports redundant recording

Product Documents

2MN-8116-P16-P 16-CH 2x SATA Network Video Recorder Features:

  • Supports Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840×2160) resolution
  • Excellent recording resolution up to 12MP
  • Can use 2x disks up to 10TB each
  • Supports redundant recording
  • Various fisheye de-warping modes for live view and playback for both web interface and GUI
  • Plug-&-Play with up to 16 independent PoE network interfaces
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Cloud upgrade capable
Weight5.47 lbs
Signal Type

Number of Channels

PoE Channels

Internal Hard Drives SATA Ports

2 SATA Hard Drives

Resolution

5k – 12 Megapixel (4000 x 3000)

Series

Professional Series

VIDEO INPUT/ OUTPUT
IP Video Input16CH
Two-way Audio Input1CH, RCA
NETWORK
Incoming Bandwidth320Mbps
Outgoing Bandwidth320Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
VIDEO/AUDIO OUTPUT
HDMI/VGA OutputVGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

HDMI: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz,

1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1CH, RCA
Synchronous Playback16CH
Corridor Mode Screen3/4/5/7/9/10/12/16
DECODING
Decoding FormatUltra 265, H.265, H.264
Live View/Playback12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30
HARD DISK
SATA2 SATA interfaces
CapacityUp to 10TB for each disk
EXTERNAL INTERFACE
Network Interface1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB InterfaceFront panel: 1 x USB 2.0, Rear panel: 1 x USB 3.0
Alarm In4-ch
Alarm Out1-ch
PoE
Interface16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max PowerMax 30W for single port Max 240W in total
Supported StandardIEEE 802.3af/at
GENERAL
Power Supply100 ~ 240VAC
Consumption (w/o HDD)Power Consumption: ≤ 12 W (without HDD)
Working Temperature-10°C~+ 55°C (+14°F~+131°F)
Working Humidity10% ~ 90%
Dimensions380 x 315 x 53 (mm) / 15″ x 12.4″ x 2.1″ (in.)
Weight≤ 2.48kg (5.47lb)
