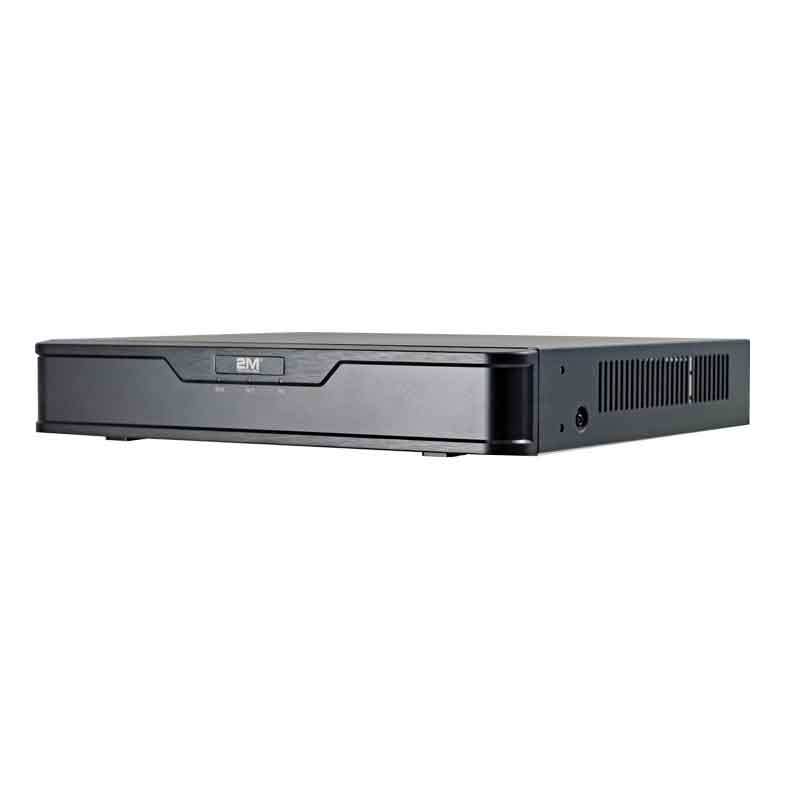

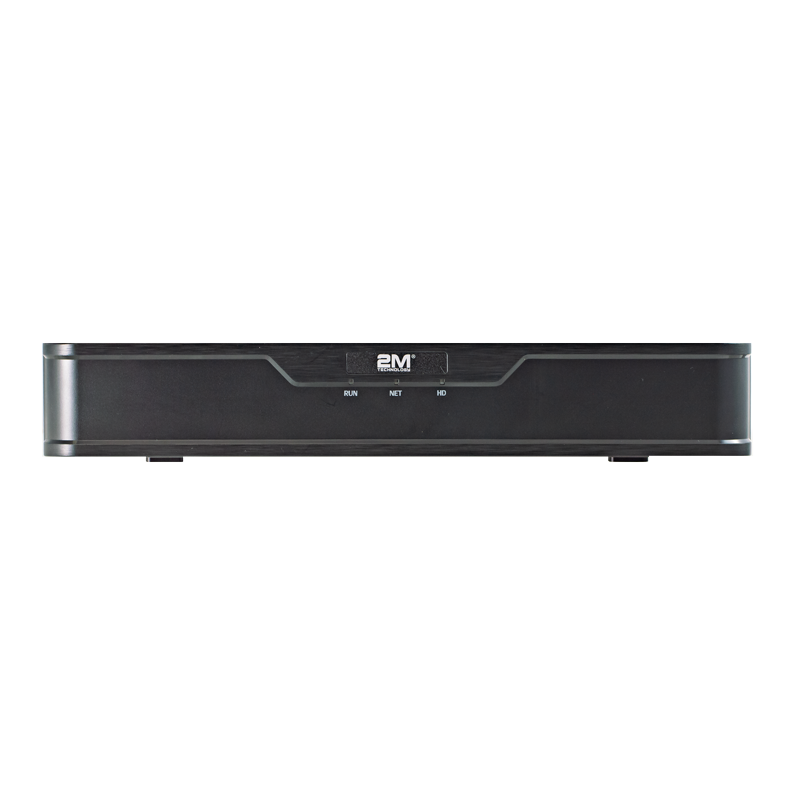

2M Technology 2MT-4004 4 Channel DVR

REQUEST QUOTE
  • H.265/H.264 video formats
  • TVI,AHD, CVI,CVBS, IP cameras with adaptive access
  • 4-channel BNC input
  • Supports 1-ch HDMI output, 1-ch VGA output at up to 1920×1080
  • Long transmission distance over coax cable

Product Documents

Compare

The 2M Technology 2MT-4004 4 Channel Digital Video Recorder can stream up to 4K resolution cameras. Additionally, the system allows for real time monitoring of video and audio. The DVR runs off of a 12V DC power supply and uses a max of 8w. Further, the digital video recorder has an operating temperature range of -10°C ~ + 55°C .

Key Features:

  • Support H.265/H.264 video formats
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 4-channel BNC input
  • Support 1-ch HDMI output, 1-ch VGA output at up to 1920×1080
  • Long transmission distance over coax cable

Signal Type

Number of Channels

PoE Channels

Internal Hard Drives SATA Ports

1 SATA Hard Drives

Series

Essential Series

Resolution

4k – 8 Megapixel (3840 x 2160)

VIDEO/AUDIO INPUT
Analog Video Input 4-ch, BNC












IP Video Input

2-ch(only IP up to 6ch),each channel up to 4K
Support AHD input:
8MP@15fps (channel1)
5MP@20fps
4MP@30fps
3MP@30fps (channel1)
1080P@30fps
720P@60fps






Supported Analog Camera Types

Support TVI input:

8MP@15fps(channel1) 5MP@20fps 4MP@30fps 3MP@20fps (channel1) 1080P@30fps 720P@60fps

Support CVI input:

8MP@15fps(channel1) 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps

Support CVBS input

Audio Input 1-ch, RCA
Two-way Audio 1-ch, RCA
Channel Associated Audio 1-ch, RCA
NETWORK
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 60Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
VIDEO/AUDIO OUTPUT
CVBS Output 1-ch, BNC
VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz,

1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz



HDMI Output

1920x1080p/60Hz, 1920x1080p/50Hz,

1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz,

1024×768/60Hz

Audio Output 1-ch, RCA
Synchronous Playback 4-ch
ENCODING
Recording Resolution 8MP Lite/5MP Lite/4MP Lite/3MP/1080P/960P/720P/960H/4CIF/CIF






Recording Frame Rate

Main stream:

8MP Lite@8fps(channel1) 5MPLite@12fps

4MP Lite@15fps 3MP@15fps(channel1) 2MP@15fps 720P@30fps

Sub stream: D1@30fps(Max)

HARD DISK
SATA 1 SATA interfaces
Capacity Up to 10TB for each HDD
EXTERNAL INTERFACE
Network Interface 1RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
Serial Interface 1 x RS485
GENERAL
Power Supply 12V DC
Power Consumption ≤ 8 W(without HDD)
Working Temperature -10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D× H) 260 x 240 x 46 (mm) (10.2″ × 9.4″×1.8″)
Weight (without HDD) ≤1.1 Kg ( 4.19lb )
