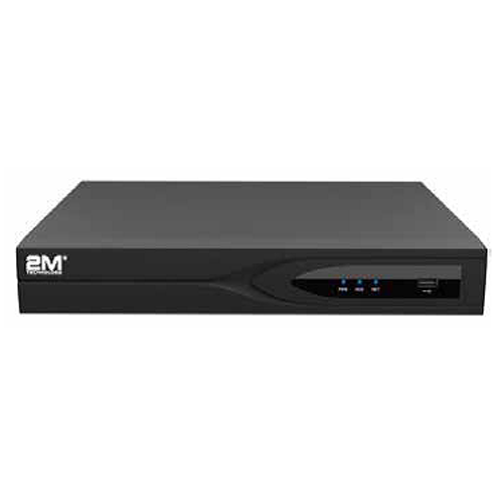

2M Technology 2MT-5116 16 Channel Digital Video Recorder -5000 Series

  • • 16 CH video input, supports CVBS, TVI, AHD, CVI UTC, IP 128Mbps/CH up to 2048 x 1536@30fps
  • • CVBS Output: 1ch,BNC Interface (1.0Vp-p,75ohms)
  • • 2 SATA port, unlimited capacity
  • • Intelligent Feature: 2CH Face Detection or 8CH Intrusion Detection
  • • Audio output: 1ch, RCA Interface (Line out, 2Vpp, 300ohms)
  • • Audio Input: 1ch, RCA Interface (2Vpp,1Kohms)

Product Documents

The 2M Technology 2MT-5116 16 Channel Digital Video Recorder can stream up to 5MP resolution cameras. Additionally, the system allows for real time monitoring of video and audio. The DVR runs off of a DV12V power supply and uses a max of 20w. Further, the digital video recorder has an operating temperature range of 0°C- +55°C.

Features:

  • CH video input, supports CVBS, TVI, AHD, CVI UTC, IP 128Mbps/CH up to 2048 x 1536@30fps
  • CVBS Output: 1ch,BNC Interface (1.0Vp-p,75ohms)
  • 2 SATA port, unlimited capacity
  • Intelligent Feature: 2CH Face Detection or 8CH Intrusion Detection
  • Audio output: 1ch, RCA Interface (Line out, 2Vpp, 300ohms)
  • Audio Input: 1ch, RCA Interface (2Vpp,1Kohms)

Signal Type

Number of Channels

PoE Channels

Internal Hard Drives SATA Ports

2 SATA Hard Drives

Series

Essential Series

Resolution

5 Megapixel (2560 x 1960)

OPERATION SYSTEM
Embedded Linux
“Video Audio Input”
Video Input 16ch
CVBS, TVI, AHD, CVI Self-adapt, IP Camera Connection
Support TVI/AHD/CVI UTC
BNC Interface(1.0Vp-p,75ohms)
5MP/4MP/3MP/1080P/720P/WD1/D1
Network Video Input 128Mbps
Up to 2048*1536@30FPS
Audio Input 1ch, RCA Interface(2Vpp,1Kohms)
Voice Talk 1ch Voice Talk
Video Audio Output
CVBS Output 1ch,BNC Interface (1.0Vp-p,75ohms)
VGA 1ch,1920×1080,1280×1024,1366×768,1280×720,1

024×768 Selectable

HDMI Ver. 1.4a
3840×2160,1920×1080,1280×1024,1366×768,128

0×720,1024×768 Selectable

Audio Output 1ch, RCA Interface(Line out,2Vpp,300ohms)
Encode
“Preview Resolution” 5MP, 4MP, 3MP, 1080P, 720P, WD1, D1
Video Encode H.264 High Profile@Level4.2
“Encode Resolution” “Main Stream: 5MP,4MP, 3MP, 1080P, 720P, WD1, D1

Selectable

Sub Stream: D1,CIF Selectable”

Video Frame Rate “Main Stream:

5MP: 5MP/4MP/3MP/1080P/720P/960H/D1@10fps

4MP: 4MP/3MP/1080P/720P/960H/D1@12fps

3MP: 3MP/1080P/720P/960H/D1@15fps

1080P:1080P/720P/960H/D1@25fps(P)/30fps(N)

720P: 720P/960H/D1@25fps(P)/30fps(N)

Sub Stream:

D1: D1@25fps(P)/30fps(N) CIF: CIF@25fps(P)/30fps(N)”

Bitrate Control CBR/VBR Selectable
Video Bitrate 48Kbps~8192Kbps
Stream Type Composite Stream / Video Stream
Audio Encode Standard G.711A
Audio Bitrate 64Kbps
Double Stream Support, The sub stream up to D1@25fps(P)/30fps(N)
Decode
Video Decode Standard H.264(High Profile@Level4.2)
Playback 16 Channel Synchronous Playback
The Highest Decode Performance 8ch 1080P@30FPS or 8ch3MP@15FPS or 2ch 5MP@10FPS
Intelligent Function
1080P Resolution MAX
2CH Face Detection or 8 CH Intrusion Detection
Other
Voice Talk Two-way Voice Talk
Motion Detection Each Channel Support 396 (22×18) Detection Area; Support Multi-level Sensitivity
Masking Support 4 area masking each channel
Snapshot Support Jpeg Snapshot
HDD
SATA Port 2
Maximum Capacity No Limitation
“EXTERNAL INTERFACE
Network Port 1 RJ45;10M/100M/1000M Suitable Ethernet Port
USB Port 2 USB2.0
Alarm Input 8
Alarm Output 4
RS-485 Support, Half-duplex
STRUCTURE
Packing 405 x 335 x 120mm
Size 360 x 262 x 48mm
Installation Desktop Installation
ELECTRICAL PERFORMANCE
Power Supply DC +12V 4A
Operation Temperature 0°C– +55°C
Operation humidity 10%–90%
Power 20w (Not Include HDD)
