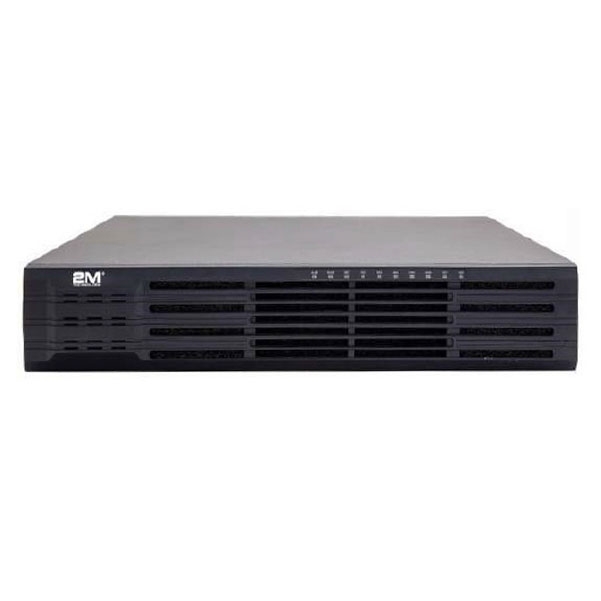

2M Technology 2MN-8464 4K 64 Channel Network Video Recorder

  • • 64CH input
  • • Third-party IP cameras supported with ONVIF conformance
  • • 2CH HDMI, 1CH VGA, 1CH CVBS, HDMI2 at up to
  • • 8 SATA interfaces up to 8TB for each HDD
  • • Up to 12 Megapixels resolution recording

Product Documents

2M Technology 2MN-8464 4K 64 Channel Network Video Recorder

Features:

  • • 64CH input
  • • Third-party IP cameras supported with ONVIF conformance
  • • 2CH HDMI, 1CH VGA, 1CH CVBS, HDMI2 at up to
  • • 4K (3840×2160) resolution
  • • Up to 12 Megapixels resolution recording
  • • H.265/H.264 video formats
  • • Accurate retrieval, instant playback
  • • HDD hot swap with RAID1, 5 storage scheme configurable
  • • 8 SATA HDDs, Up to 8TB for each HDD
  • • VCA detection alarm and VCA search
  • • N+1 Hot spare
  • • 12V Power output
  • • P2P, UPnP, NTP, DHCP, PPPoE
  • • Support for mobile client access
Weight11.31 lbs
Dimensions3.4 × 17.4 × 19.9 in
Signal Type

Number of Channels

PoE Channels

Internal Hard Drives SATA Ports

8 SATA Hard Drives

Resolution

4 Megapixel (2592 x 1520)

Series

Professional Series

VIDEO INPUT/ OUTPUT
IP Video Input64CH
Two-way Audio Input1CH, RCA
NETWORK
Incoming Bandwidth320Mbps
Outgoing Bandwidth320Mbps
Remote Users128
VIDEO/AUDIO OUTPUT




HDMI/VGA Output

HDMI 1 / VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720

/60Hz, 1024×76/60Hz 8

HDMI 2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz,1600×1200 /60Hz,

1280×1024 /60Hz, 1280×720/60Hz, 1024×768 /60Hz

CVBS Output1CH, BNC
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1CH, RCA
Synchronous Playback16CH
DECODING
Live View/Playback12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
CompressionH.265 / H.264
Capability4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20,

16 x 1080P@25, 32 x 720P@25, 64 x D1

HARD DISK
SATA8 SATA interfaces
Capacityup to 8TB for each HDD
DISK ARRAY
Array TypeRAID1, RAID5
EXTERNAL INTERFACE
Network Interface2 RJ -45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface1 x RS232, 1 x RS485
USB InterfaceRear panel: 2 x USB2.0, 1 x USB3.0
Alarm In / Out16CH / 4CH
Power Output12 VDC
GENERAL
Power Supply100 ~ 240VAC
Consumption (without HDD)≤ 20W
Working Temperature-10°C ~ + 55°C (+14°F ~ +131°F)
Working Humidity10% ~ 90%
Dimensions86 x 442 x 531 (mm) [3.4″ x 17.4″ x 19.9″ (in.)]
Weight≤ 5.13 Kg (11.31 lb)
