Features

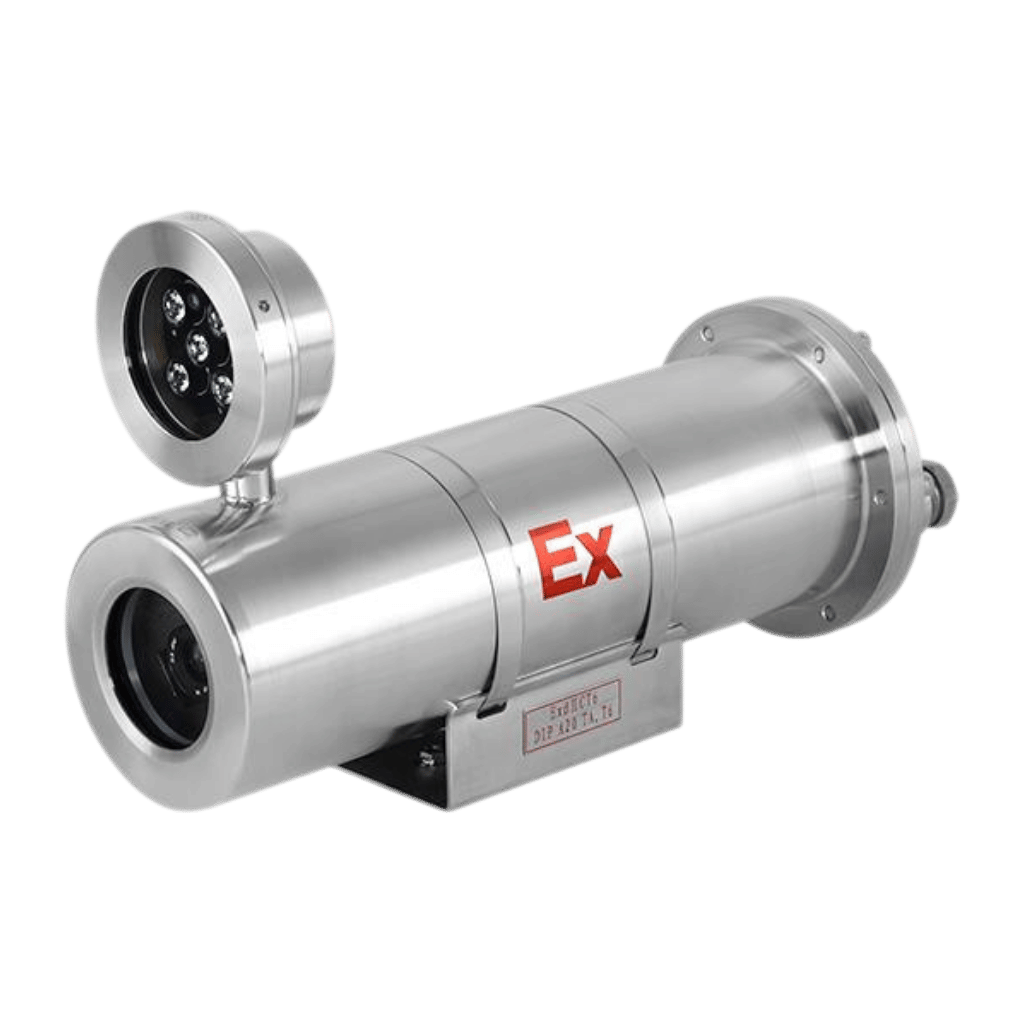

The 2MEXH-2666 is a high-performance Explosion-Proof IR Bullet Camera Housing that enables reliable surveillance in the world’s most hazardous environments. Constructed from high-quality 304 or 316L stainless steel, this rugged enclosure is built to withstand extreme industrial conditions while protecting sensitive internal camera components.
Certified for Hazardous Operations
This housing is specifically designed for safety and compliance in volatile atmospheres. It carries a II 2G Ex db IIC T6 Gb marking for gas and a II 2D Ex tb IIIC (85°C) Db marking for dust, ensuring it meets rigorous ATEX standards (Certificate No. IEP 14 ATEX 0251).
- Gas Protection: Applicable for flammable gas environments in Zone 1 and Zone 2, supporting Class IIA, IIB, and IIC environments with T1–T6 temperature group compliance.
- Dust Protection: Certified for combustible dust environments including Zone 20, Zone 21, and Zone 22.
- Environmental Resilience: With an IP68 ingress protection rating, the unit is fully dust-proof, water-proof, and corrosion-proof. It operates reliably in temperatures ranging from -30°C to +70°C.
Advanced Optical and IR Capabilities
The 2MEXH-2666 ensures crystal-clear imaging regardless of lighting or environmental obstructions.
- Ultra-Clear Optics: The viewing window features optics-grade, toughened white explosion-proof glass with a light transmittance rate exceeding 96%.
- Integrated Night Vision: The dedicated IR illuminator uses an 850 nm wavelength to provide visibility at distances of 30 m to 60 m (98 ft to 197 ft). The IR system includes an auto-switch that activates when ambient light drops below 10 lux.
Versatile Installation and Build
Designed to be flexible for various integration needs, the housing features a spacious internal cavity measuring 269.5 × 66 × 83 mm, allowing it to accommodate most standard camera models.
- Mechanical Strength: The unit weighs approximately 8 kg (17.6 lb) and is designed for secure wall mounting.
- Cable Management: It includes dual M25*2 cable thread holes for protected wiring.
- Finish Options: The housing comes in the original stainless steel color, with an optional electropolishing treatment for enhanced corrosion resistance in maritime or chemical settings.
Common Applications
The 2MEXH-2666 is an ideal security solution for critical infrastructure, including:
- Oil and gas fields
- Chemical processing plants
- Maritime ports
- Offshore drilling platforms
- Military bases.
