Features

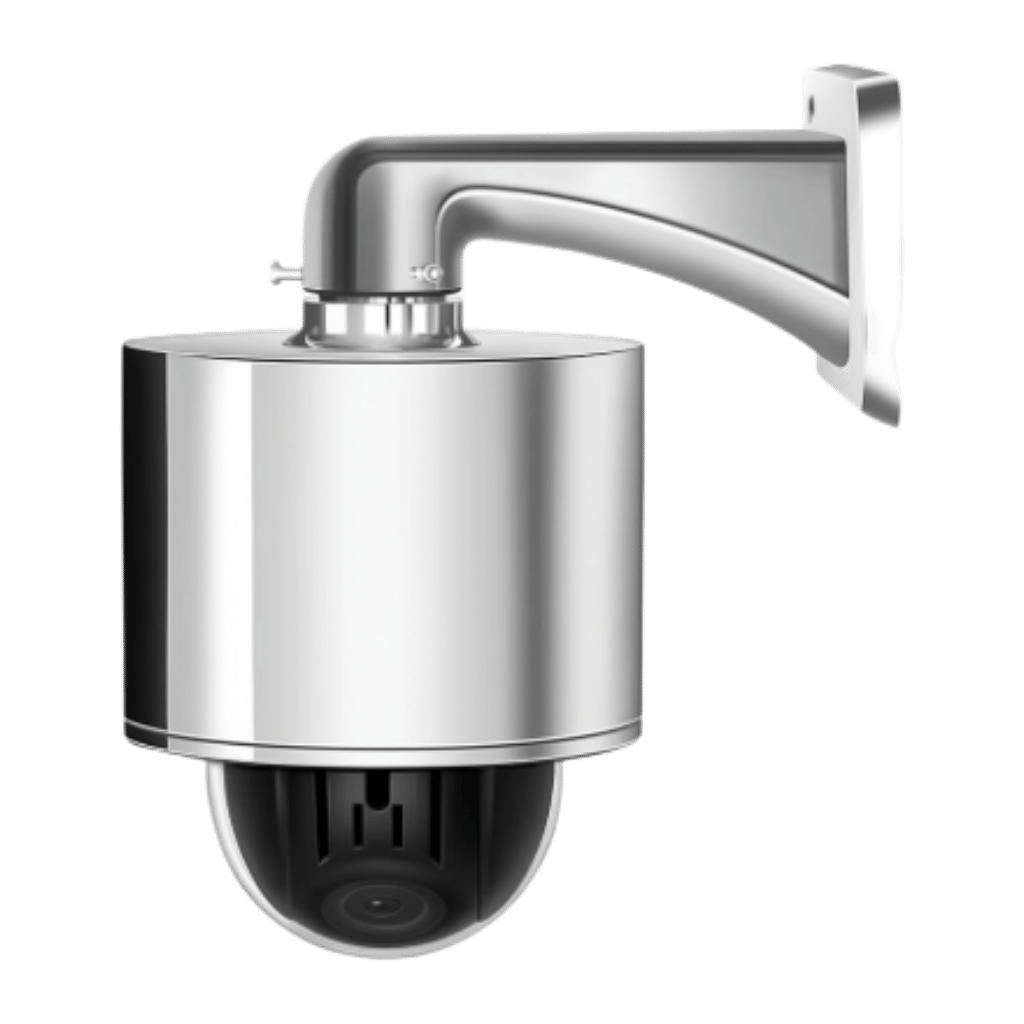

Securing an industrial or high-risk facility requires specialized equipment that you can trust to perform under the most extreme conditions. The 2MEXH-3130 Explosion-Proof Dome Housing by 2M Technology is expertly engineered to provide precisely that level of reliability. Built to last where standard equipment would fail, this heavy-duty enclosure ensures your critical surveillance cameras remain protected and fully operational, regardless of the challenging environments they are deployed in.
Engineered for Volatile Gas and Vapor Environments
When outfitting a facility where combustible elements are present, safety compliance is non-negotiable. This Explosion-Proof Dome Housing features a strict Ex d IIC T6 Gb marking. It is crucial to note that this specific certification is strictly for protection in environments where hazardous gas and vapors are present. By isolating your camera’s internal electronics within this specialized enclosure, you prevent the risk of sparks or heat serving as an ignition source in volatile, gas-heavy atmospheres.
Heavy-Duty Stainless Steel Construction
For industries facing harsh elements or corrosive atmospheres, this heavy-duty stainless steel explosion-proof dome housing is constructed from high-grade AISI 304 stainless steel. For environments requiring maximum resistance to chemical exposure or marine-grade salinity, an optional upgrade to premium AISI 316L stainless steel is also available.
The physical build of the unit is incredibly robust. Weighing in at 15 kg (24.3 lb), the housing provides a solid, stable foundation for your security hardware.
Spacious and Accommodating Design
While the exterior is built like a vault, the interior is designed for easy installation and versatility. The external dimensions measure 315 mm by 305 mm (12.4″ x 12″). Inside, the internal usable size provides a generous 295 mm by 230 mm (11.61″ x 9.05″) of clearance. This spacious layout easily accommodates a wide variety of dome cameras while leaving plenty of room for cable management. Additionally, the explosion-proof dome housing features a standard G-1/2″ outlet hold thread size to ensure secure and properly sealed conduit connections.
Uncompromising Environmental Protection
Beyond its explosion-proof capabilities, this explosion-proof dome housing is a fortress against the elements. It boasts an exceptional IP68 and NEMA-6P enclosure rating. This means the camera housing is completely watertight, ensuring the internal electronics remain completely dry and dust-free, even under conditions of prolonged water submersion or intense weather.
When facing severe weather, you need equipment that handles unpredictable climate fluctuations with ease. This explosion-proof dome housing is built to operate flawlessly in both freezing cold and blistering heat, offering a rated operating temperature ranging from -30°C to +70°C (-22°F to +158°F). It also maintains its reliable performance under atmospheric pressures between 80 kPa and 106 kPa (11.6 psi to 15.37 psi). Plus, you can count on consistent protection in damp conditions, as the unit operates comfortably within a humidity range of 5% to 95% RH, non-condensing.
Key Specifications at a Glance
- Housing Type: Dome camera enclosure
- Material: AISI 304 Stainless Steel or available AISI 316L construction
- Ingress Protection: IP68 and NEMA-6P enclosure rating
- Explosion-Proof Marking: Ex d IIC T6 Gb
- Operating Temperature Range: -30°C to 70°C (-22°F to 158°F)
- Outlet Thread Size: G-1/2″
- External Dimensions (Ø × H): 315 mm x 305 mm (12.4″ x 12″)
- Internal Dimensions (Ø × H): 295 mm × 230 mm (11.61″ × 9.05″)
- Weight: 15 kg (24.3 lb)
Securing hazardous environments is a complex challenge, but finding the right camera hardware does not have to be. The 2MEXH-3130 Explosion-Proof Dome Housing offers the uncompromising protection your critical infrastructure needs. Whether you are upgrading an existing facility or designing a brand new security layout from the ground up, our team is here to help you make the right choice. Reach out to the experts at 2M Technology to discuss your specific project requirements.
