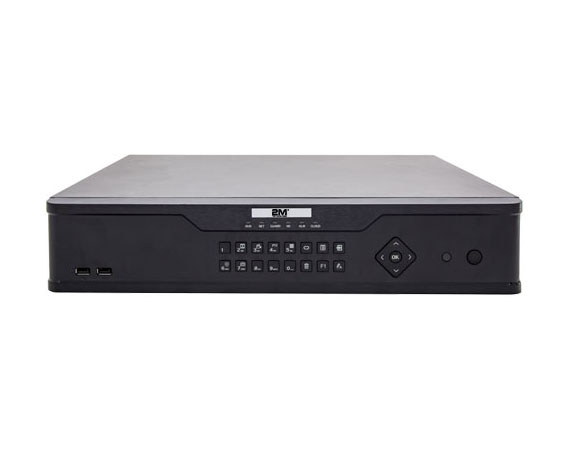

2MN-8432-G 32 Channel Network Video Recorder
- Support Ultra H.265/H.265/H.264 video formats
- 32-channel input
- 8 SATA HDDs, Up to 10TB for each HDD
Product Documents
Downloads
2MN-8432-G 32 Channel Network Video Recorder
Features:
- Support Ultra H.265/H.265/H.264 video formats
- 32 channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840×2160) resolution
- HDMI1, HDMI2, VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Supports RAID 0, 1, 5, 6, 10
- 8 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Support N+1 Hot spare
- Support for 12V Power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Cloud upgrade supported
Product Documents
Downloads
| Weight | 12.57 lbs |
|---|---|
| Dimensions | 17.4 × 16.8 × 3.5 in |
| Number of Channels | |
| Internal Hard Drives SATA Ports | 8 SATA Hard Drives |
| Country of Origin | China |
| VIDEO INPUT/ OUTPUT | |
| IP Video Input | 32Ch |
| Two-way Audio Input | 1 ch, RCA |
| NETWORK | |
| Incoming Bandwidth | 384Mbps |
| Outgoing Bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| VIDEO/AUDIO OUTPUT | |
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| DECODING | |
| Decoding format | Ultra 265, H.265, H.264 |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25 |
| HARD DISK | |
| SATA | 8 SATA interfaces |
| Capacity | up to 10TB for each HDD |
| eSATA | 1 eSATA interface |
| DISK ARRAY | |
| Array Type | RAID 0, 1, 5, 6, 10 |
| EXTERNAL INTERFACE | |
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| Serial Interface | 1 x RS232, 1 x RS485 |
| USB Interface | Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| GENERAL | |
| Power Supply | 100~240 VAC Power Consumption: ≤ 25 W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 442mm ×426mm× 89mm (17.4" × 16.8"× 3.5") |
| Weight (without HDD) | ≤ 5.7Kg (12.57lb) |
