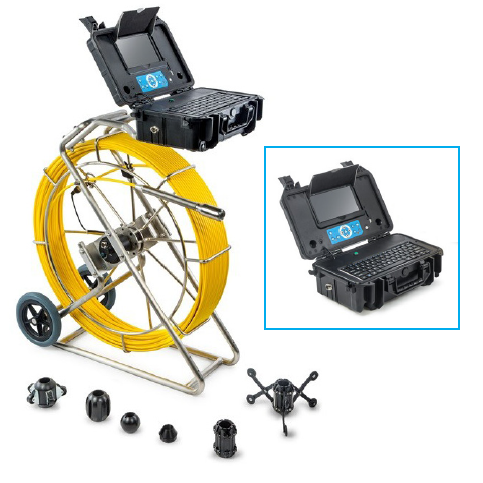

2MPICC-40 Push Rod Optical Equipment for Drain Pipe CCTV Inspection Camera

REQUEST QUOTE (for best price)
  • Spiral cable with 6x pin aviation plug
  • U type handle
  • Wireless keyboard
  • Tool Box, 7″ DVR & lithium ion battery inside

Note: This is a special order item. Allow 4-6 weeks for delivery.

Product Documents

Compare

2MPICC-40 Push Rod Optical Equipment for Drain Pipe CCTV Inspection Camera

  • Spiral cable with 6x pin aviation plug
  • U type handle
  • Wireless keyboard
  • Tool Box, 7″ DVR & lithium ion battery inside
  • 40/50/60 – 131’/164’/196′ Fiberglass cable 6.8mm @yellow fiber glass,
    meter counter & text input
  • 38mm / 1.49″ in self-leveling CCD camera head
  • Fiberglass cable 9mm @yellow fiber glass, meter counter & text and wheel

       Note: This is a special order item. Allow 4-6 weeks for delivery.

OTHER SIZES AVAILABLE
9MM YELLOW FIBERGLASS CABLE
2MPICC-40262262.47ft/ 80 meters fiberglass cable
2MPICC-40328328.1 ft/ 100 meters fiberglass cable
2MPICC-40394393.70 feet /120 m fiberglass cable
OPTIONAL
512Hz sonde into camera head
Country of Origin

China

CAMERA
Camera Size 38 x 81 (mm) / 1.49" x 3.18" (in.)
Camera Total Length 318mm / 12.5" in.
Sensor 1/3" Sony CCD, 700 TVL
Pixel 976 (H) x 582 (V)
View Angle 120°
Self leveling Built-in
Focus Distance 12cm / 4.7" in. (aprox.)
Depth-of-Field 120cm / 40.2" in. (aprox.)
Front Lens Sapphire glass
Waterproof 20m/65.6' ft. Under Water (Camera fixed on cable)
Shell Material #304 stainless steel
Lighting Built-in 12x LED (White)
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature -20°C ~ 60°C (4°F ~ 140°F)
MONITOR
Screen 7" in. 16:9 Super bright HD color LCD screen
Resolution 800 x 480 RGB
Mirror and Flip Supports image mirror, and flip
Video Resolution 720 x 576 25fps Max.
Video Encoding H.264
Photograph 720 x 480 / 720 x 576
Audio Recording Local sound record
Output TV and audio output
External Memory SD memory card up to 32GB
Data Output USB 2.0 to PC
LED Driver Built-in dimmer
Playback Video, Photo and Audio
On Screen Date, time, Distance (m/ft) display
Battery Capacity 7.4 V 4400mAh lithium ion battery
Power Supply DC 12V input
Life/Charge Time 5/8 hours
Language English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese
OPTIONAL
Camera Head Add On Built-in 512Hz sonde
    Camera Skids Caster Skid: POM Ø 134 x 83.9 30mm Wheel
POM Skid: POM Ø 78 x 83.9
Ball Support: POM S Ø 60 x 53.5
Lock Sleeve: POM Ø 54.6 x 38

OTHER SIZES AVAILABLE
9MM YELLOW FIBERGLASS CABLE
2MPICC-40262 262.47ft/ 80 meters fiberglass cable
2MPICC-40328 328.1 ft/ 100 meters fiberglass cable
2MPICC-40394 393.70 feet /120 m fiberglass cable
OPTIONAL
512Hz sonde into camera head
