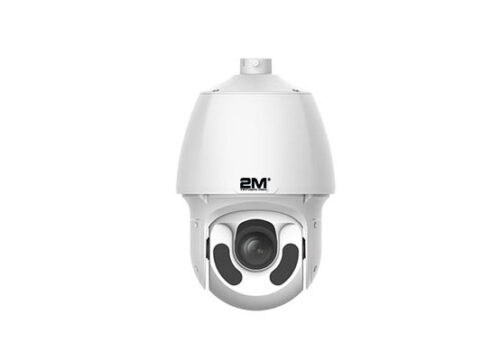

2MPIP-2MIR15033X-G 2MP Network PTZ Dome Camera

  • High quality image with 2MP, 1/2.8″ CMOS sensor
  • 1920×1080@60fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • 33X Optical Zoom
  • Light Predator technology ensures ultra-high image quality in low illumination environment
  • Smart IR, up to 150m (492 ft) IR distance
  • AC 24V±25%, DC 24V±25% or PoE power supply
  • Alarm 2 in and 1 out, Audio 1 in and 1 out
  • IP66 ingress protection

Product Documents

2MPIP-2MIR15033X-G Network PTZ Dome Camera

Features:

• High quality image with 2MP,1/2.8″ CMOS sensor
• 1920*1080@60fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Five streams
• 33X Optical Zoom
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 150m (492 ft) IR distance
• AC 24V±25%, DC 24V±25% or PoE power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP66 ingress protection

Dimensions 8.9 × 15.1 in
Camera Type

Dome Camera

Cameras Signal Type

IP (Network)

Resolution

2MP

IR Lighting Distance

up to 150m

IP Rating

IP66

Country of Origin

China

CAMERA
Sensor 1/2.8″, 2.0 megapixel, progressive scan, CMOS
Min. Illumination Color: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N >52dB
LENS
Lens 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 33
Iris Auto; F1.5 ~ F4.0
Angle of View (H) 56.2° ~ 2.6°
Angle of View (V) 33.5° ~ 1.4°
Angle of View (O) 69.1° ~ 3.1°
DORI




DORI

Distance

Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4.5 72.9

(239.3ft)

29.2 (95.7ft) 14.6

(47.9ft)

7.3

(23.9ft)

148.5 2187.9

(7178.3ft)

875.2 (2871.3ft) 437.6 (1435.7ft) 218.8

(717.8ft)

ILLUMINATOR
IR Range Up to 150m (492 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
VIDEO
Video Compression Ultra 265, H.265, H.264, MJPEG




Frame Rate

Main Stream: 2MP(1920×1080),Max 60fps; Sub Stream: 2MP (1920×1080), Max 60fps; Third Stream: D1 (720×576), Max 60fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
ROI Supported
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clock- wise/90°Anti-clockwise
HLC Supported
BLC Supported
Defog Digital Defog
EVENTS Serial Port 1 RS485
Basic Detection Motion detection, Audio detection, Tampering Alarm; Built-in Mic N/A
Auto Tracking Supported Built-in Speaker N/A


General Function

Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User

Authentication

WIFI N/A
Network 1 x RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC
AUDIO
Audio Compression G.711U,G.711A AUDIO




EMC

FCC Part 15

EN 55032:2015

EN 55024:2010

EN 61000-3-2:2014

EN 61000-3-3-2013

Audio Bitrate 64 Kbps
Two-way Audio Supported
Suppression Supported
Sampling Rate 8KHZ
Safety IEC 62368-1

EN 62368-1

STORAGE
Edge Storage Micro SD, up to 256GB Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);

REACH (Regulation (EC) No 1907/2006)

Network Storage ANR, NAS (NFS)
GENERAL
NETWORK


Power

AC 24V±25%, DC 24V±25%, PoE (PSE Required)


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Power consumption: Max 41W
Power Interface Wires with cold-pressed terminal
Compatible Integration ONVIF (Profile  S, Profile  G,  Profile T),  API,  SDK
Dimensions (Ø x H) Ø 227 x 384.8 (mm)/Ø 8.9” x 15.1” (in.)
User/Host Up to 32 users. 2 user levels: administrator and common user
Weight 5.39kg (11.88lb)




Security

Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Working Environment -40°C ~70°C (-40°F ~ 158°F)

Humidity: ≤95% RH (non-condensing)

Storage Environment -40°C ~70°C (-40°F ~ 158°F)

Humidity: ≤95% RH (non-condensing)

Client 2M Station
Surge Protection 6KV




Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Vandal Resistant N/A
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Ingress Protection IP66
Reset Button Support
PAN & TILT
Dimensions











Pan Range 360° (endless)


Pan Speed

0.1°/s ~ 200°/s
Preset speed: 300°/s
Tilt Range –15° ~ 90° (auto reverse)


Tilt Speed

0.1° ~ 200°/s
Preset speed: 240°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time 15s~1800s
Preset Image Freeze Supported
Home Position Supported
INTERFACE
Audio I/O 1/1
Alarm I/O 2/1
