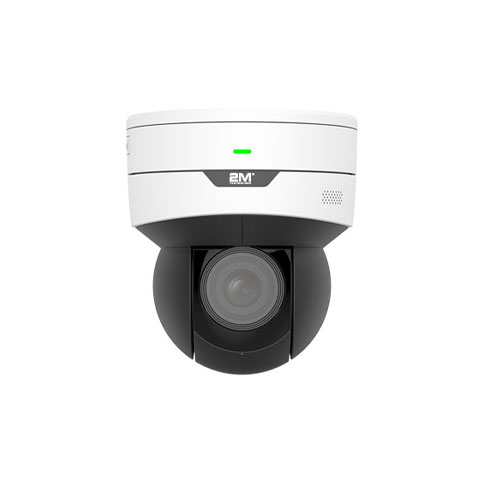

2MPIP-5MIR305XUA-P WDR Starlight IR Network Indoor Mini PTZ Dome Camera

  • Starlight illumination
  • Day/night functionality
  • Smart IR, up to 30m (98 ft) IR distance
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)

Product Documents

Optics

  • Starlight illumination
  • Day/night functionality
  • Smart IR, up to 30m (98 ft) IR distance
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265, H.265, H.264, MJPEG
  • Built-in microphone & speaker
  • Triple streams
  • ROI (Region of Interest)

Network

  • ONVIF Conformance

Structure

  • Supports PoE power supply
  • Wide temperature range: -10°C to 50°C (14°F to 122°F)
  • Wide voltage range of ±25%
Weight1.65 lbs
Dimensions5.07 × 5.07 × 5.63 in
Lens

Varifocal 2.7~13.5mm, 5x Optical Zoom Lens

Edge Storage

,

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Resolution

5 Megapixel (2560 x 1960)

Signal Type

Series

Professional Series

CAMERA
Sensor1/2.7″ progressive scan, 5.0 megapixel, CMOS
Lens2.7~13.5mm, AF automatic focusing and motorized zoom lens
Digital Zoom16
Optical Zoom44




DORI

Distance

LensDetect (m)Observe (m)Recognize (m)Identify (m)
2.7mm60.824.312.26.1
13.5mm303.8121.560.830.4
Angle of View (H)27.9°~98.3°
Angle of View (V)20.6°~70.3°
Angle of View (O)30.0°~136.9°
ShutterAuto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum IlluminationColor: 0.002 lux (F1.2,AGC ON) 0 lux with IR
IrisF1.2
Day/NightIR-cut filter with auto switch (ICR)
Digital Noise Reduction2D/3D DNR
S/N>55 dB
IR RangeUP to 30m (98ft)
WDR120dB
VIDEO
Video CompressionUltra 265, H.265, H.264, MJPEG


Frame Rate

Main Stream:5M (2592×1944):Max. 30 fps; Sub Stream: 720P (1280×720):Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 24 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
SMART


General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
AUDIO
Audio CompressionG.711
Suppression Supported
Sampling Rate 8 KHZ
STORAGE
Edge Storage Micro SD, up to 256 GB
Network StorageANR
NETWORK


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL
Compatible IntegrationONVIF(Profile S, Profile G), API



PAN & TILT
Pan Range350°


Pan Speed

0.1°/s ~ 60°/s
Preset speed: 60°/s
Tilt Range0° ~ 90°


Tilt Speed

0.1° ~ 50°/s
Preset speed: 50°/s
Number of Presets1024
Home PositionSupported
INTERFACE
Alarm I/O1/1
Serial Port1 RS485
Network1 RJ45 10M/100M Base-TX Ethernet
Built-in MicSupported
Built-in SpeakerSupported
WIFISupported
GENERAL


Power

DC 12V±25%, PoE (IEEE802.3 at)
Power consumption: Max 16W
Dimensions (Ø x H)Φ129mm×143 (mm) / Φ5.07” x 5.63” (in)
Weight0.75kg (1.65lb)


Working Environment

–10°C ~ +50°C (14°F ~ 122°F)

Humidity: ≤95% RH (non-condensing)

Reset ButtonSupported
