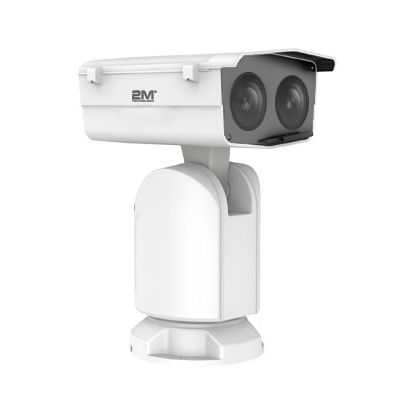

2MPIP-2MIR100055X 2MP 55x Darklight® Laser IR Network Positioning System

Product Documents

2MPIP-2MIR100055X 2MP 55x Darklight® Laser IR Network Positioning System

Features:

  • 55X Optical Zoom(6.4~352mm)
  • Starlight illumination
  • Support Optical defog, Self-adaptive defog
  • Day/night functionality
  • Vari-focal laser: 1000m (3280ft) distance, proportional to optical zoom of camera module
  • Gyroscope stabilization for stable picture
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265, H.265, H.264, MJPEG
  • Support 1080P@60fps, which has the smoother motion image
  • Triple streams
  • ROI (Region of Interest)
  • ONVIF Conformance
  • Intelligent temperature control technology
  • Support automatic wiper function
  • Embedded gradienter to ensure the horizontal position while installation
  • Wide temperature range: -40°C to 70°C (-40°F to 158°F)
  • Power supply: DC 48V±25%/DC 24V±15%(DC20V~DC60V), DC -48V±25%/ DC -24V±15%(DC-20V~-DC-60V), AC 24V±25%
  • Support 1/1 audio in/out, 7/2 alarm in/out ,1 Serial port RS485,1 BNC
  • Support up to 256G Micro SD card
  • Ingress Protection: IP66 Ingress Protection: IP66
CAMERA
Sensor1/2.8″ progressive scan, 2.0megapixel, CMOS
Lens6.4~352mm, AF automatic focusing and motorized zoom lens
Digital Zoom16
Optical Zoom55




DORI

Distance

LensDetect(m)Observe(m)Recog- nize(m)Identify(m)
6.4mm99.3(30.3ft)39.7(12.1ft)19.9(6.1ft)9.9(3.0ft)
352mm5462.1

(1664.8ft)

2184.8

(655.0ft)

1092.4 (333.0ft)546.2 (166.5ft)
Angle of View (H)42.0° ~ 1°
Angle of View (V)34.8°~0.5°
Angle of View (O)51.6°~1.1°
ShutterAuto/Manual, shutter time: 1s ~ 1/100000 s
Minimum Illumination0.002lux (F1.8, AGC ON, Color), 0 lux with IR
IrisF1.8 ~ F6.5
Day/NightIR-cut filter with auto switch(ICR)
Digital noise reduction2D/3D DNR
S/N>52 dB
DefogOptical Defog
WDR120dB
IR Distance1000m(3280ft)
VIDEO
Video CompressionUltra 265, H.265, H.264, MJPEG




Frame Rate



Main Stream:2MP (1920×1080)@60fps Sub Stream:2MP(1920×1080)@60fps; Third Stream:D1(720×576)@60fps

HLCSupported
BLCSupported
GyroscopeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 24 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
SMART




General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
AUDIO
Audio CompressionG.711U, G.711A
Two way audioSupported
STORAGE
Edge StorageMicro SD, up to 256 GB
Network StorageANR
NETWORK


Protocols

IPv4, HTTP, HTTPS, SSL/TLS, FTP, SMTP, SNMPV1/V2/V3(MIB-II), DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP
Compatible IntegrationONVIF(Profile S, Profile G, Profile T), API
PAN & TILT
Pan Range360°


Pan Speed

0.1°/s ~140°/s
Preset speed: 140°/s
Tilt Range–90° ~ +45°


Tilt Speed

0.1° ~50°/s
Preset speed:50°/s
Number of Presets1024
PatrolPreset patrol, route patrol, recorded patrol
Power-off memorySupported
Keep watchSupported
INTERFACE


Audio I/O

1 Input: impedance 35 kΩ; amplitude2 V [p-p]
1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O7/ 2
Serial Port1 RS485
Network10M/100M/1000M Base-TX Ethernet + 100M/1000M SFP
Video Output1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
GENERAL


Power

DC 48V±25%/DC 24V±15%  (DC20V~DC60V) DC -48V±25%/DC -24V±15% (DC-20V~DC-60V) AC 24V±25%
Dimensions (Ø x H)280.1mm x 364.9mm x 502.8mm (Φ11.0” x 14.4” x19.8”)
Weight14.5kg (31.9lb)


Working Environment

–40°C ~ +70°C (-40°F ~ 158°F),

Humidity :≤95% RH (non-condensing)

Ingress ProtectionIP66
