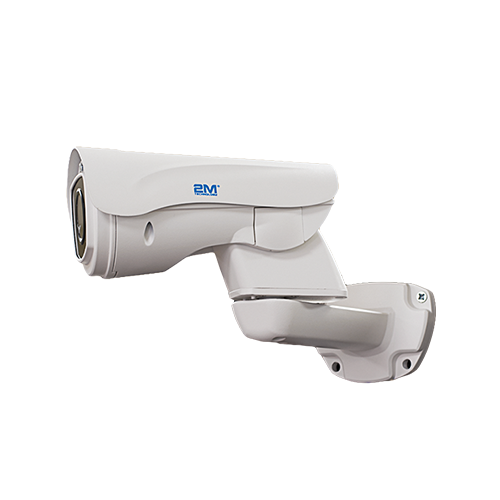

2MPT-2MIR8010X 2MP HD 1080P TVI Varifocal Camera with 10X Zoom

REQUEST DEMO

2MP HD 1080P TVI Varifocal Camera with 10X Zoom

Product Documents

  • The first mini bullet PTZ TVI camera of the world, just 920g
  • Image can up to 1080p
  • IR range up to 80 meters
  • 10X optical zoom
  • Nextchip DSP, SONY HD Sensor
  • Motorized Pan/Tilt, Pan range 250°
  • OSD menu in English system
  • IP-66 level 2 lightning protection, 4000V prevent thunderbolt surges design
Signal Type

Lens

10x Optical Zoom Lens

Night Vision Type

Infra Red (IR) LED

Night Vision Distance

80 Meters (262.5 Feet)

Features

D-WDR, Motion Detection, Privacy Mask

Ingress Protection

IP66

Camera
Image Sensor 1/2.8″ CMOS sensor
Effective Pixels 1080P(1080X1920)
Shutter Speed 1/25s ~ 1/50000s
Day & Night ICR
Min. Illumination 0 LUX (IR ON)
Image Settings AWB, AGC, Adjustable,Sharpness, Saturation, Brightness &
Contrast
Exposure Mode Auto/Manual
Image Settings Sharpness, Saturation, Brightness & Contrast
WDR Range D-DWR
AGC Yes
AWB Yes
Noise Reduction 2D/3D
Image Orietation Mirror/ Flip
Privacy Zone Yes
Motion Detection Yes
Lens 5.1~51mm
Auto Iris Yes
Optical Zoom 10x
IR Distance 40-80m
Resolution 1080P(1080X1920)
Cable RS485/Coax
PTZ
Optical Zoom 10X
IR Distance 80m
Pan Rotation Range 0~250°
Tilt Rotation Range 10° ~ 55°
Pan Speed 0.5°/s ~ 10°
Tilt Speed 0.5°/s ~ 15°
Preset Position 256
GENERAL
Power DC 12V
Working Temperature -35°C~60°C
Power Consumption Less than 1500mA
Humidity 10% ~ 90%
Bracket Wall Bracket
IP Rating IP66
Dimensions 153 x 93 x 130 (LxWxH) (mm)
Weight 2.03
