Features
Features:
| Tow Hitch | 50 mm Ball / 4412LBS | Number of Dome Cameras | 1 |
| Axle | Single | Bullet Camera Specs | 3MP, HD IR50m1 |
| Tire and Rim Size | YOK 205/70 R15 | Dome Camera Specs | 2MP HD, 20x Optical Zoom, IR150m, 360° View |
| Outrigger | Manual | Input | AC Plug |
| Mast Raise/Extension m/ft | Manual | Transition | AC to DC 12V |
| Mast Rotation | Option | Loudspeaker | Optional |
| Wind Rating Speed | 100kph | GPS | Optional |
| Width | 1320 mm/5’10” | ||
| Length | 4020mm/10’8” | ||
| Height | 3240mm/10’5” | ||
| Weight | 520Kg/1146Lb | ||
| Number of Cameras | 4 HD 1080P Cameras | ||
| Number of Bullet Cameras | 3 |

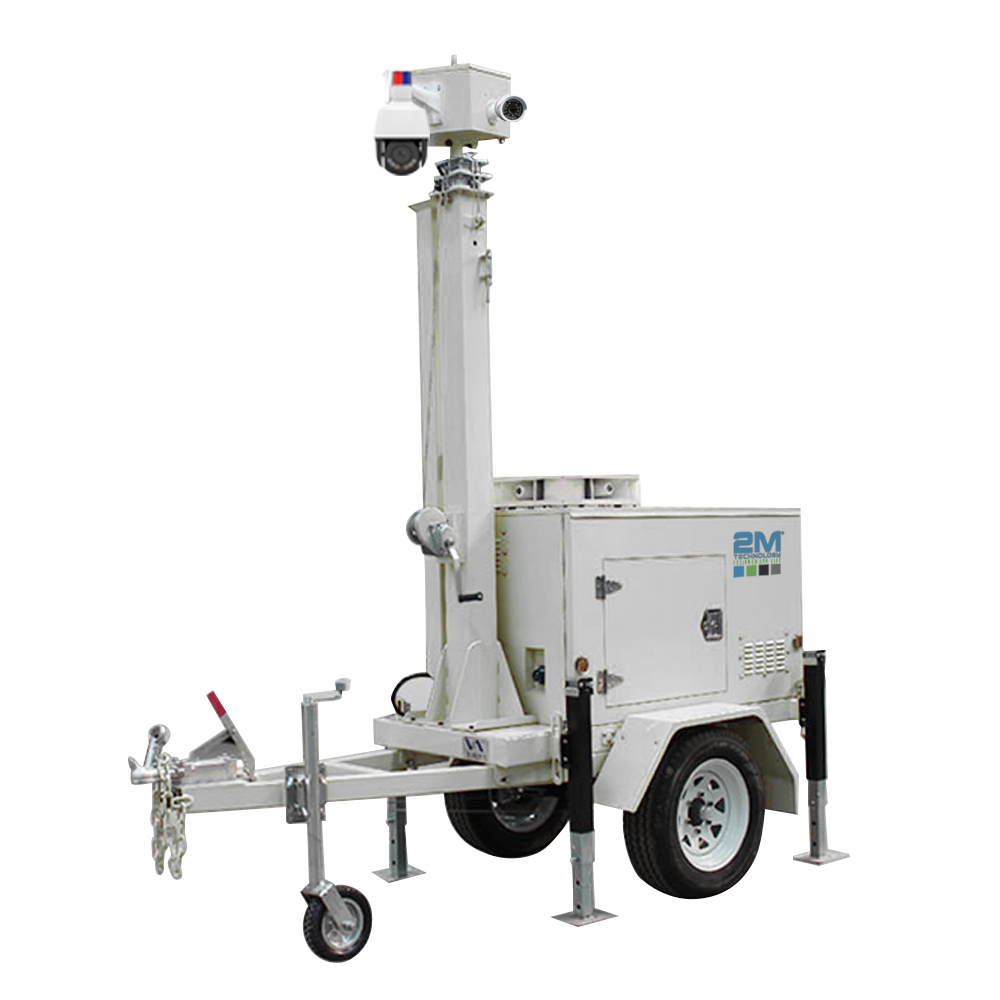

2MVC-4000A Camera Trailer — Overview
The 2MVC-4000A is a portable camera trailer built for rapid deployment at construction sites, events, parking lots, and perimeter monitoring where fixed CCTV infrastructure is not available. A single operator can tow, position, and raise the 9m (29’6″) pneumatic mast in under 30 minutes — no permits, no trenching, no concrete required.
Camera Configuration
The camera trailer ships with four factory-mounted cameras covering 360° of the surrounding area:
- 3× Bullet cameras — 3MP HD, 50m IR night vision, fixed wide-angle coverage for perimeter walls and access roads
- 1× PTZ dome camera — 2MP HD, 20× optical zoom, 150m IR range for identification-quality zoom and auto-tracking
Power & Connectivity
The 2MVC-4000A runs on AC mains power (AC plug input with built-in AC-to-DC 12V conversion). For sites with generator access or temporary power, this camera trailer provides reliable 24/7 operation without battery limitations. Contact 2M Technology to discuss LTE or fiber network integration for remote live viewing and recording.
Specifications
- Mast height: 9m / 29’6″
- Wind rating: 100 kph
- Trailer dimensions: 4020mm L × 1320mm W × 3240mm H
- Weight: 520 kg (1,146 lbs)
- Tow hitch: 50mm ball, rated 4,412 lbs
- Axle: Single
- Mast operation: Manual raise with outrigger stabilizers
Ready to deploy a camera trailer at your site? Call 2M Technology at (214) 988-4302 or request a quote online for lead time and pricing. Texas License B15309.
This trailer platform also supports drone detection payloads — passive RF sensors for airspace awareness alongside the camera system.
