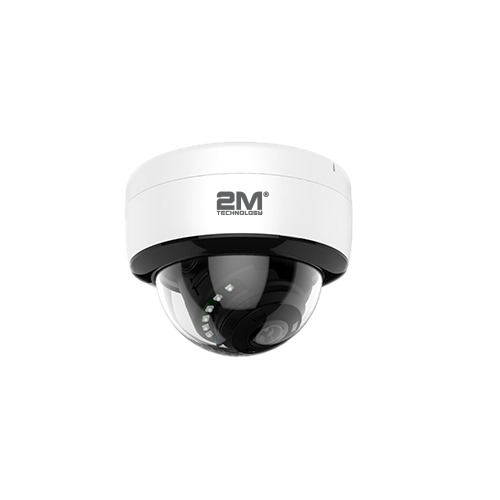

2MVT-5MIR25 5MP IR Metal Dome HD Camera

REQUEST DEMO
  • 4-in-1 vandal dome camera
  • 1/2.8″Sony335 CMOS 5.0M+NVP2477
  • 12pcs SMD LEDs
  • 15m IR Range

Product Documents

  • 4-in-1 vandal dome camera
  • 1/2.8″Sony335 CMOS 5.0M+NVP2477
  • 12pcs SMD LEDs
  • 15m IR Range
  • Standard match 2.8mm lens
  • 3DNR
  • Default TVI output

Additional Information

Night Vision Type

Infra Red (IR) LED

Night Vision Distance

25 Meters (80 Feet)

Resolution

5 Megapixel (2560 x 1960)

Signal Type

Vandal Resistant

IK10

Power System NTSC
Sensor IMX335 1/2.8
DSP NVP2477H
Active Pixel 2560*1944
SYNC. Internal
Resolution 5MP
VIDEO.OUT A/T/C/CVBS
Minimum Illumination 0.01Lux(F1.2)
Gama adjust 0.45
Electric Shutter AUTO FLK 1/25-1/50000
S/N Ratio 48dB(min)(AGC closed)
NR 2DNR OFF/LOW/MID/HIGH
3DNR OFF/LOW/MID/HIGH
WHITE Balance ATW/AWC-SET
AGC Level 0-15
D-WDR OFF/Auto
OSD Yes
Language Eng CHN1/2 GER FRA ITA SPA POL RUS POR NED TUR JPN
Day/Night Auto、Color、B/W、Ext
Power Input DC12V±1V
Power Dissipation 85-95MA
Transmission distance 75-5 300M
Operation Temperature Temperature -10℃~+55℃,Humidity less than 85%RH
Weight 1.5 lbs
color Off white
