Features
Certified for Hazardous Gas & Dust Environments

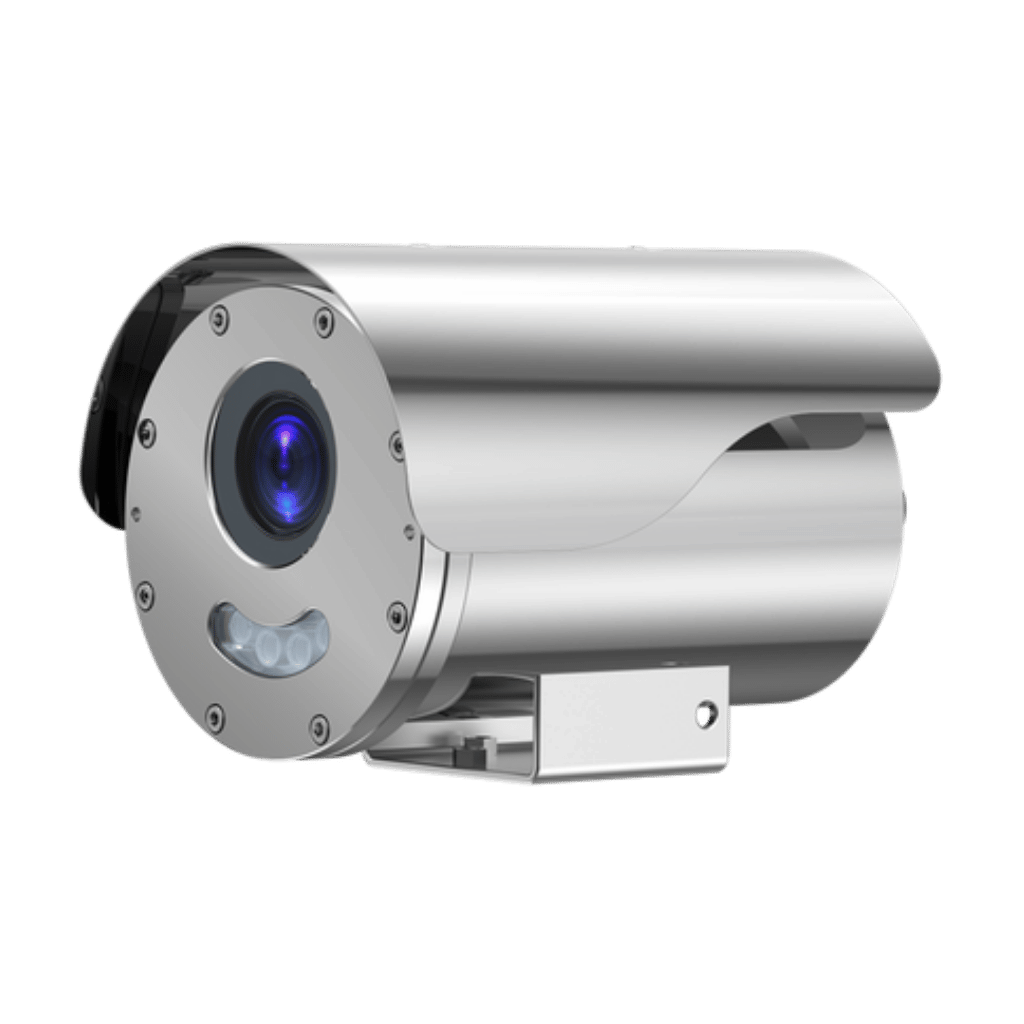

The 2MEBS04-T2M is engineered for mission-critical surveillance in hazardous locations where explosive gas or combustible dust may be present. Fully certified under ATEX and IECEx, the camera carries:
- II 2 G Ex db IIC T6 Gb (explosive gas atmospheres)
- II 2 D Ex tb IIIC T80°C Db (combustible dust environments)
With independent testing and certification from DNV, this bullet camera provides reliable safety compliance for oil & gas, chemical processing, grain handling, mining, and other high-risk industrial sectors.
Heavy-Duty Stainless-Steel Housing for Extreme Conditions
Built from 304/316L stainless steel, the camera resists corrosion, impact, and harsh atmospheric chemicals. Its multi-level environmental protection includes:
- IP66
- IP68 (2m for 2 hours)
- IP69 high-pressure washdown rating
With an operating temperature range of -40°C to +60°C (-40°F to +140°F), the 2MEBS04-T2M performs reliably in offshore platforms, refineries, mills, and outdoor harsh-weather deployments.
Full HD Imaging with Advanced Low-Light Performance
Powered by a 2MP progressive scan CMOS sensor, the camera delivers crisp, stable 1080p video at:
- 25 fps (PAL)
- 30 fps (NTSC)
Low-light performance is enhanced with:
- 0.005 Lux @ F1.6 (AGC ON)
- 0 Lux with IR
- 30 m (98.4 ft) IR illumination
- Automatic IR Cut Filter (True Day/Night)
Whether in dusty, dim, or complex industrial lighting, the camera ensures accurate visibility around the clock.
Motorized Varifocal Lens for Flexible Monitoring
The 2.7–13.5 mm motorized lens allows operators to remotely adjust zoom and field of view, ranging from:
- 102° wide angle to capture large work areas
- 31° telephoto for targeted monitoring
This flexibility supports conveyor lines, tank farms, process equipment, loading zones, and perimeter security.
Industrial-Grade Image Enhancement Tools
To maintain clarity in harsh conditions, the camera includes:
- ≥120 dB Wide Dynamic Range (WDR)
- 3D Digital Noise Reduction (3D DNR)
- Smart IR to prevent overexposure
- Image settings for brightness, sharpness, and saturation
- Auto / Color / Black & White day–night modes
- ATW/MWB white balance
- Mirror & image orientation options
These features ensure stable, high-quality video in mixed lighting, dusty atmospheres, and outdoor environments.
Multi-Format Analog Output for Broad Compatibility
The 2MEBS04-T2M supports all major HD analog video standards:
- TVI
- AHD
- CVI
- CVBS
This provides seamless integration with existing coaxial infrastructure or hybrid NVR systems without requiring network upgrades.
Reliable Power & Low Consumption
Designed for industrial simplicity and long-term operation:
- DC 12V power input
- Max consumption: 6.5W
- Static: 2.5W | Dynamic: 4.5W
An M25 × 1.5 cable entry (with optional G3/4 or M27 × 1.25) ensures secure, explosion-proof wiring.
Flexible Mounting Options
The stainless-steel bracket system supports:
- Wall mount
- Pole mount
- Corner mount
- Ceiling mount
This versatility allows easy deployment across processing areas, production floors, outdoor yards, and hazardous perimeter zones.
Ideal Applications
- Oil & gas refineries, offshore rigs, and petrochemical plants
- Chemical mixing, solvent storage, and hazardous material areas
- Grain, flour, sugar, feed, and dust-rich processing facilities
- Mining, metal fabrication, battery production, and powder manufacturing
- Industrial outdoor security in corrosive or explosive atmospheres
